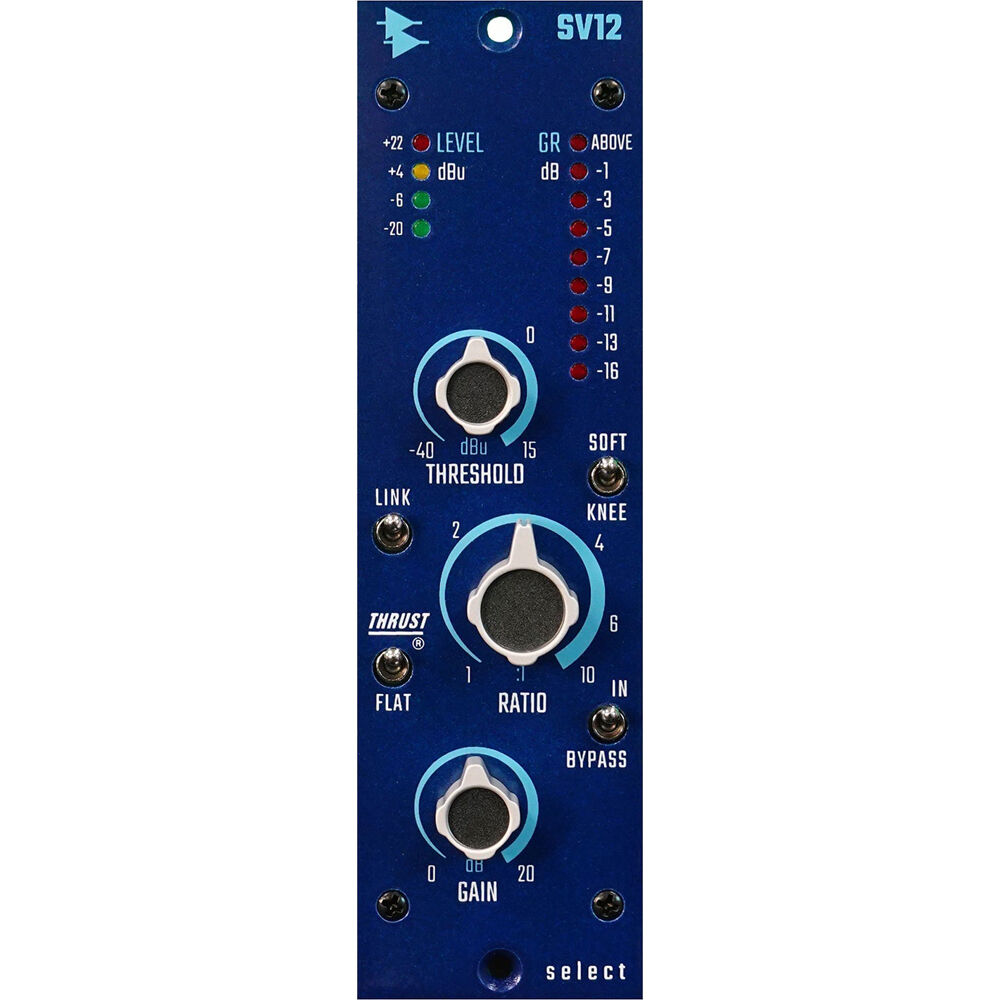

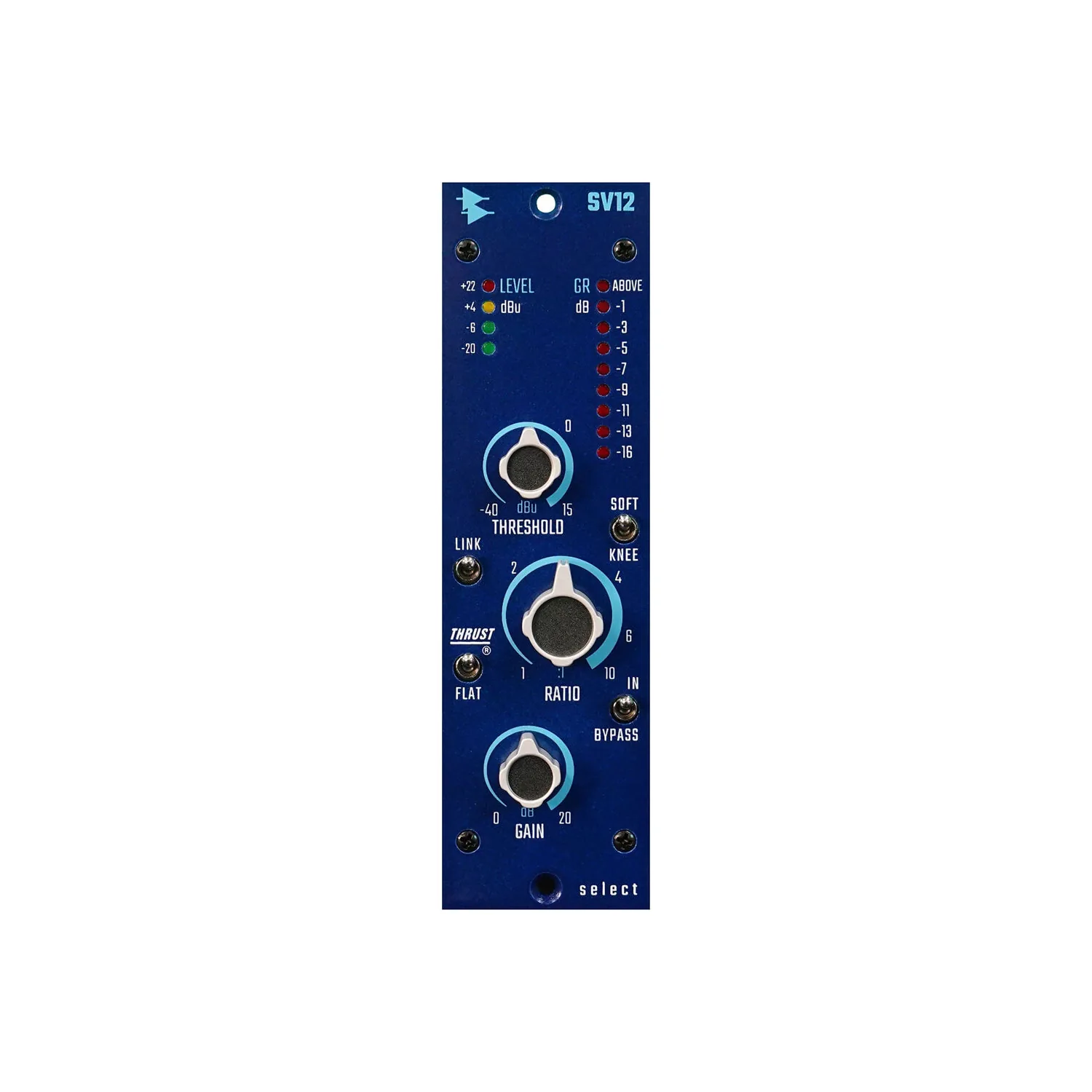

API AUDIO SV12 500-Series Compressor Module

Descripción

The Rock Store te trae API AUDIO SV12 500-Series Compressor Module

Sus características técnicas principales son:

Based on the popular dynamics section of the ATI Paragon mixing consoles of the ’90s, the API Audio SV12 is an analog compressor module for 500-series racks. Sporting variable threshold, ratio, and makeup gain controls, switchable soft or hard knee compression, and API’s patented THRUST circuitry for low-end punch, the SV12 is a more than capable all-purpose compressor.

You can select compression ratios between 1:1 and 10:1. The switchable In switch provides a quick and easy bypass function. Separate onboard LED meters are dedicated to output level (4-segment meter) and gain reduction (8-segment meter) along with an LED indicator for when signals exceed the set threshold level. Finally, a Link switch is provided for situations when you have two SV12 compressors installed, allowing you to engage in linked stereo dynamics processing, with left and right signals summed via true RMS power.

A Paragon of Compression

The SV12 is the same compressor circuit originally designed for all ATI Paragon mixing consoles. ATI was founded in 1988 to manufacture audio equipment for live sound reinforcement use.

Paragons could be found on many of the top tours in the ’90s and early 2000s, and one of their most distinctive features was the onboard dynamics processing, which was beloved by many top road engineers Now, this celebrated compressor is available in a convenient 500-series form factor.

THRUST Circuit

The unit includes API’s patented THRUST circuitry which protects sensitive high frequency content of the audio signal even under the most vigorous of compression ratios. This frequency-dependent side-chain function helps to improve punch in the low frequencies.

Aviso: Las especificaciones y disponibilidad pueden cambiar sin previo aviso.
