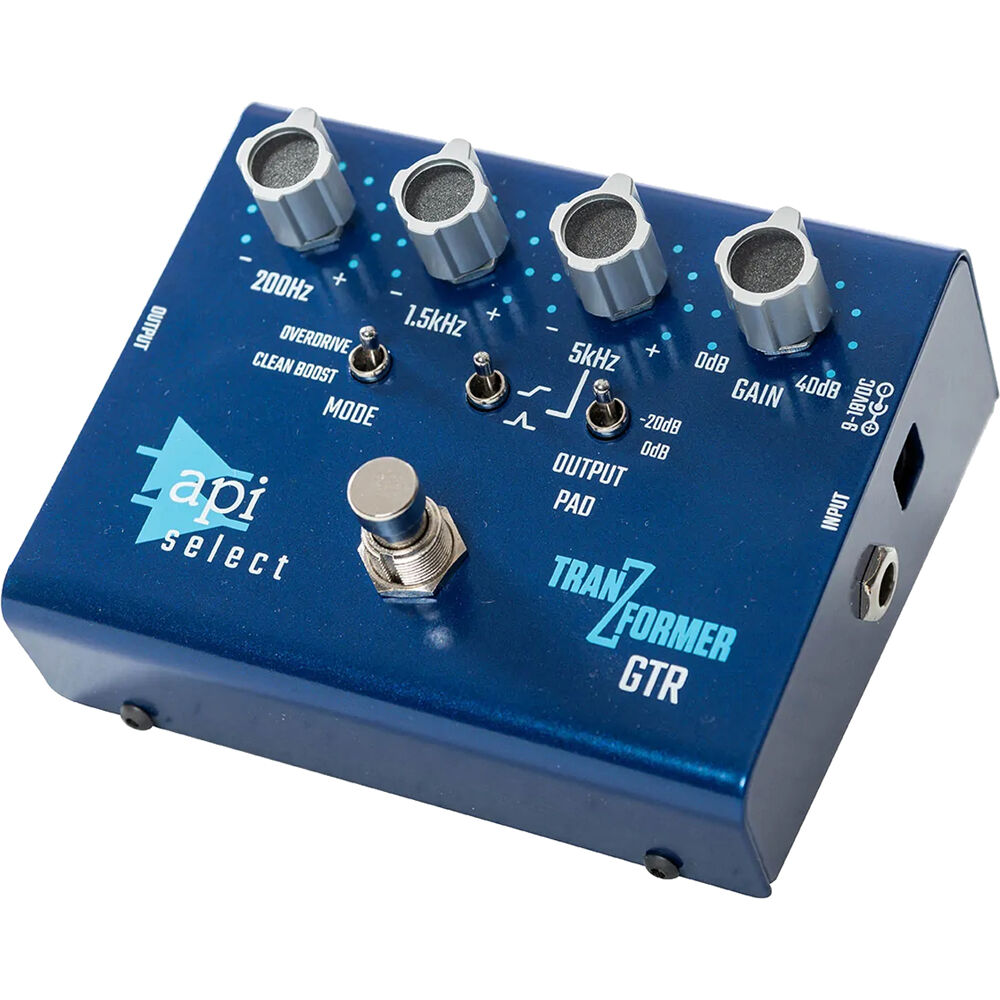

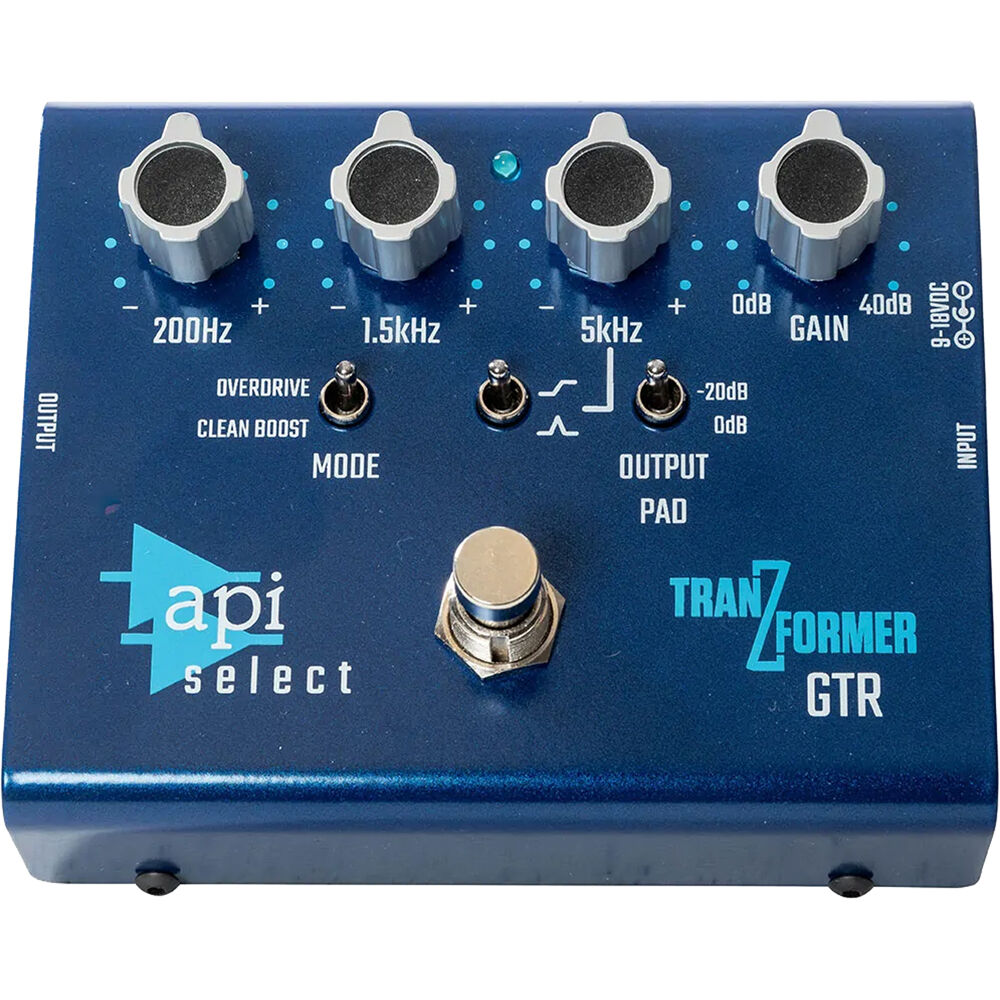

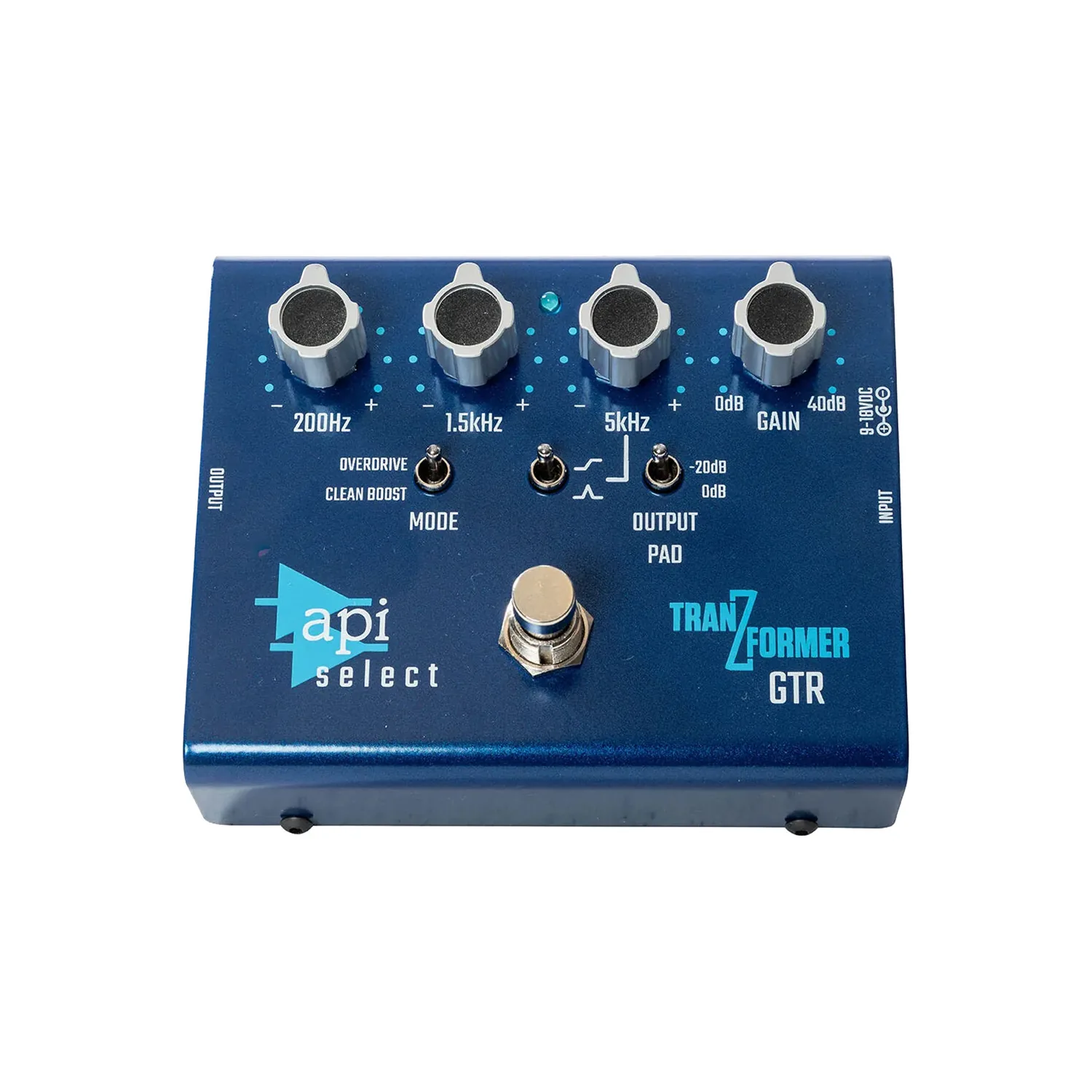

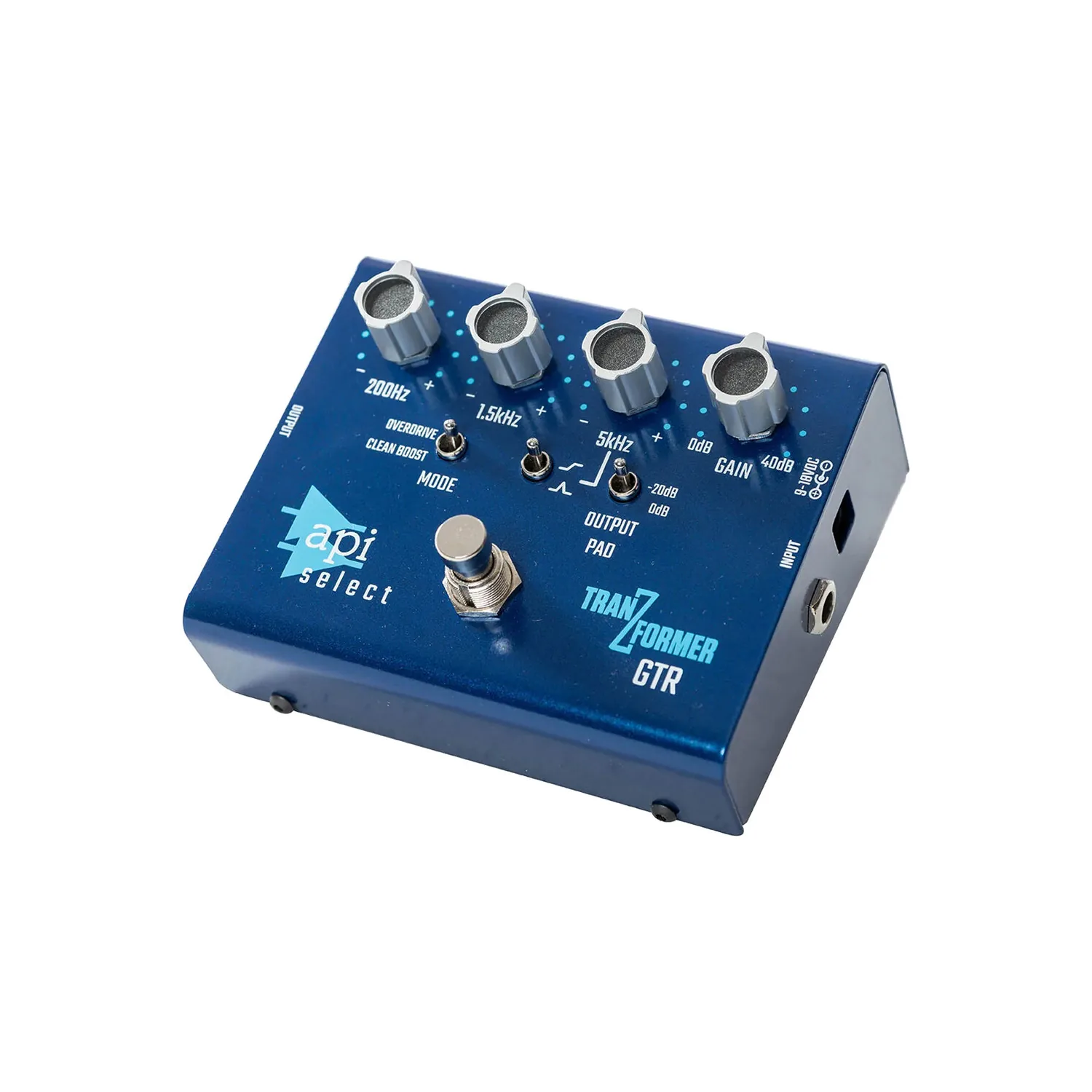

API AUDIO TranZformer GTR EQ and Boost Pedal

El precio original era: $1.119.699.El precio actual es: $938.699.

For Electric Guitar and Bass Instruments
Signature API Output Transformer
3-Band EQ with ±15 dB per Band
Op-Amp-Based Overdrive Circuit

Placing API Audio ‘s legendary EQ circuitry into a guitar-friendly pedal chassis, the TranZformer GTR is an EQ and boost pedal sporting 3-band EQ with ±15 dB of gain per band and up to 40 dB of clean boost. With a switchable drive circuit, you can flip between a clean boost and op-amp-powered overdrive circuit with absolute ease. Switches are included on the TranZformer GTR for selecting a -20 dB output pad and for switching between peak or shelving functions for the high-frequency band. The bands on tap include 200 Hz, 1.5 kHz, and 5 kHz, with the mid and low frequencies being shelving types. The footswitch engages a buffered bypass, which is ideal for maintaining signal integrity during long cable runs or complex pedalboard configurations.

Bajo Pedido - Disponible para reserva

Valor por transferencia (Precio en Rojo) - Débito/Crédito (6 cuotas s/interés): Precio tachado

6 Cuotas fijas de $198.691

3 Cuotas fijas de $362.964

Abonando en efectivo en nuestras oficinas te queda en $882.399 o USD594.

SKU: BHAPTRNZFRMRGT Categorías: Efectos y procesadores, Effects Pedals, Guitars & Stringed Instruments, Musical Instruments, Pro Audio Etiquetas: 3-Band EQ with ±15 dB per Band, 40 dB of Clean Gain Boosting, API AUDIO, For Electric Guitar and Bass Instruments, Op-Amp-Based Overdrive Circuit, Signature API Output Transformer

Descripción

The Rock Store te trae API AUDIO TranZformer GTR EQ and Boost Pedal

Sus características técnicas principales son:

Placing API Audio‘s legendary EQ circuitry into a guitar-friendly pedal chassis, the TranZformer GTR is an EQ and boost pedal sporting 3-band EQ with ±15 dB of gain per band and up to 40 dB of clean boost. With a switchable drive circuit, you can flip between a clean boost and op-amp-powered overdrive circuit with absolute ease.

Switches are included on the TranZformer GTR for selecting a -20 dB output pad and for switching between peak or shelving functions for the high-frequency band. The bands on tap include 200 Hz, 1.5 kHz, and 5 kHz, with the mid and low frequencies being shelving types. The footswitch engages a buffered bypass, which is ideal for maintaining signal integrity during long cable runs or complex pedalboard configurations.

Aviso: Las especificaciones y disponibilidad pueden cambiar sin previo aviso.

Información adicional

Peso	1,3804 kg
Dimensiones	11,7 × 9,7 × 7,6 cm
Tipo de circuito de audio	Analog (Solid-State)
Impedancia de entrada	1 Megohm
Impedancia de salida	<1 Kilohm
Ganar control	0 to +40 dB
Nivel máximo de salida	9 VDC: +15 dBu 18 VDC: +22 dBu
Respuesta de frecuencia	20 Hz to 20 kHz
Controles	4 x Rotary Knob (EQ Frequency, Gain) 3 x 2-Way Switch (Boost Mode, High-Frequency Peak/Shelf, Output Pad) 1 x Footswitch (On/Bypass)
E/S de audio	1x 1/4″ TS Hi-Z/Instrument Input 1x 1/4″ TS Hi-Z/Instrument Output
Fuente de energía	AC Adapter with Power Brick (Not Included)
Alimentación de entrada CC	9 to 18 VDC at 100 mA
Color	Azul
Material de construcción	Metal
Dimensiones	4.6 x 3.8 x 3″ / 11.7 x 9.7 x 7.6 cm
Peso	1.5 lb / 0.7 kg
