Audio-Technica ATW-902A System 9 VHF Wireless Handheld Microphone System

El precio original era: $816.399.El precio actual es: $684.499.

169 to 172 MHz
4 Selectable Channels
Dipole Antenna for Extended Range
Channel

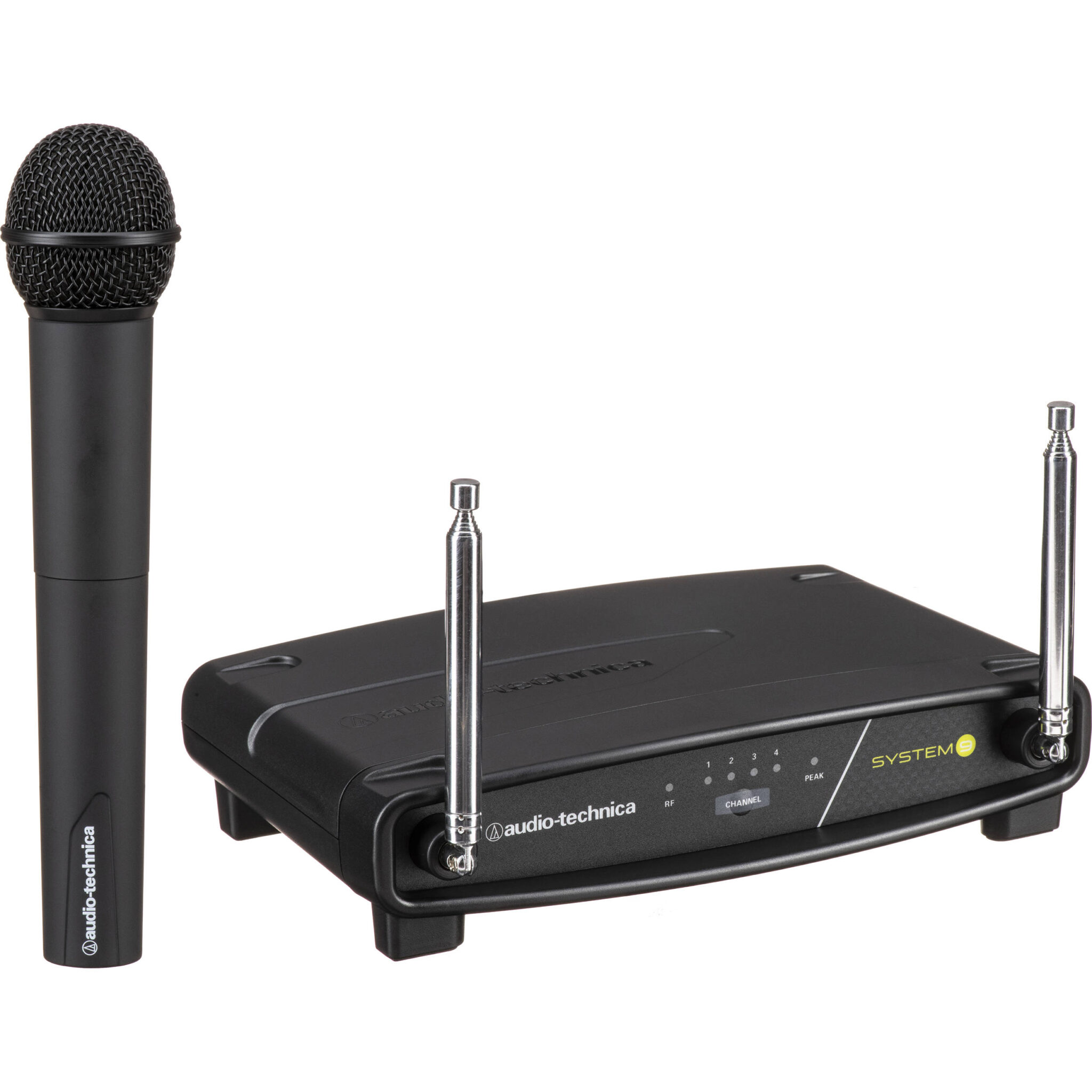

The Audio-Technica ATW-902A System 9 VHF Wireless Handheld Microphone System is designed for live sound reinforcement applications. The system consists of a wireless VHF receiver and a wireless VHF handheld microphone transmitter. The receiver utilizes two dipole antennas for extended range, and allows you to select your VHF transmission frequency from 169 to 172 MHz. The receiver includes LED indicator lights for channel, RF, and AF peak. The back of the receiver includes a volume control knob, a squelch control knob, a balanced XLR audio output, and an unbalanced 1/4″ audio output. The receiver also includes a power cord hook to prevent accidental pull-out of the DC power supply. The handheld microphone transmitter is powered by two AA batteries and includes a battery status LED indicator, channel selection DIP switches, and a power/mute button.

Disponible para reserva

Valor por transferencia (Precio en Rojo) - Débito/Crédito (6 cuotas s/interés): Precio tachado

6 Cuotas fijas de $144.886

3 Cuotas fijas de $264.673

Abonando en efectivo en nuestras oficinas te queda en $643.399 o USD433.

SKU: BHAUATW902A Categorías: Pro Audio, Sistemas de micrófonos inalámbricos, Wireless Systems

Descripción

The Rock Store te trae Audio-Technica ATW-902A System 9 VHF Wireless Handheld Microphone System

Sus características técnicas principales son:

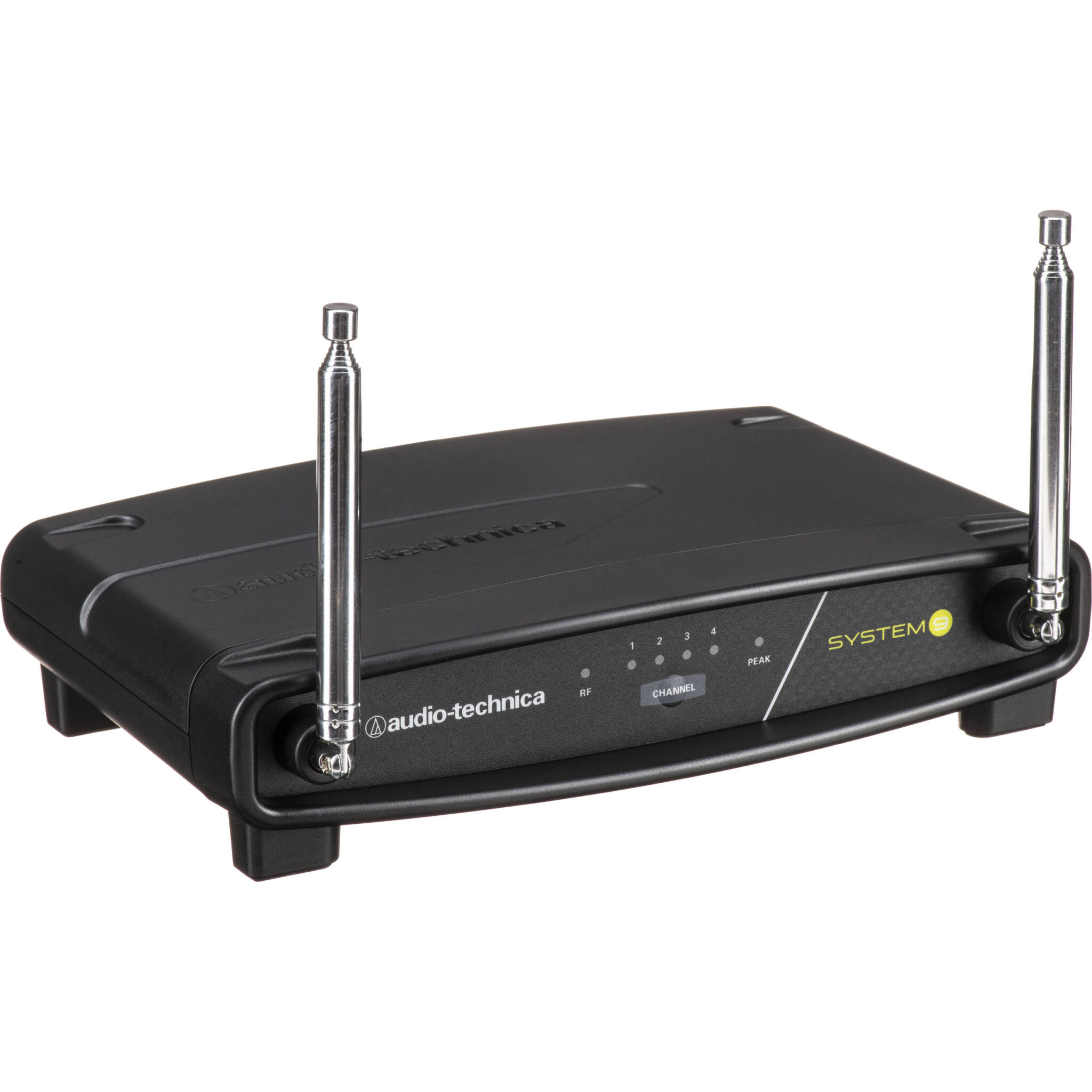

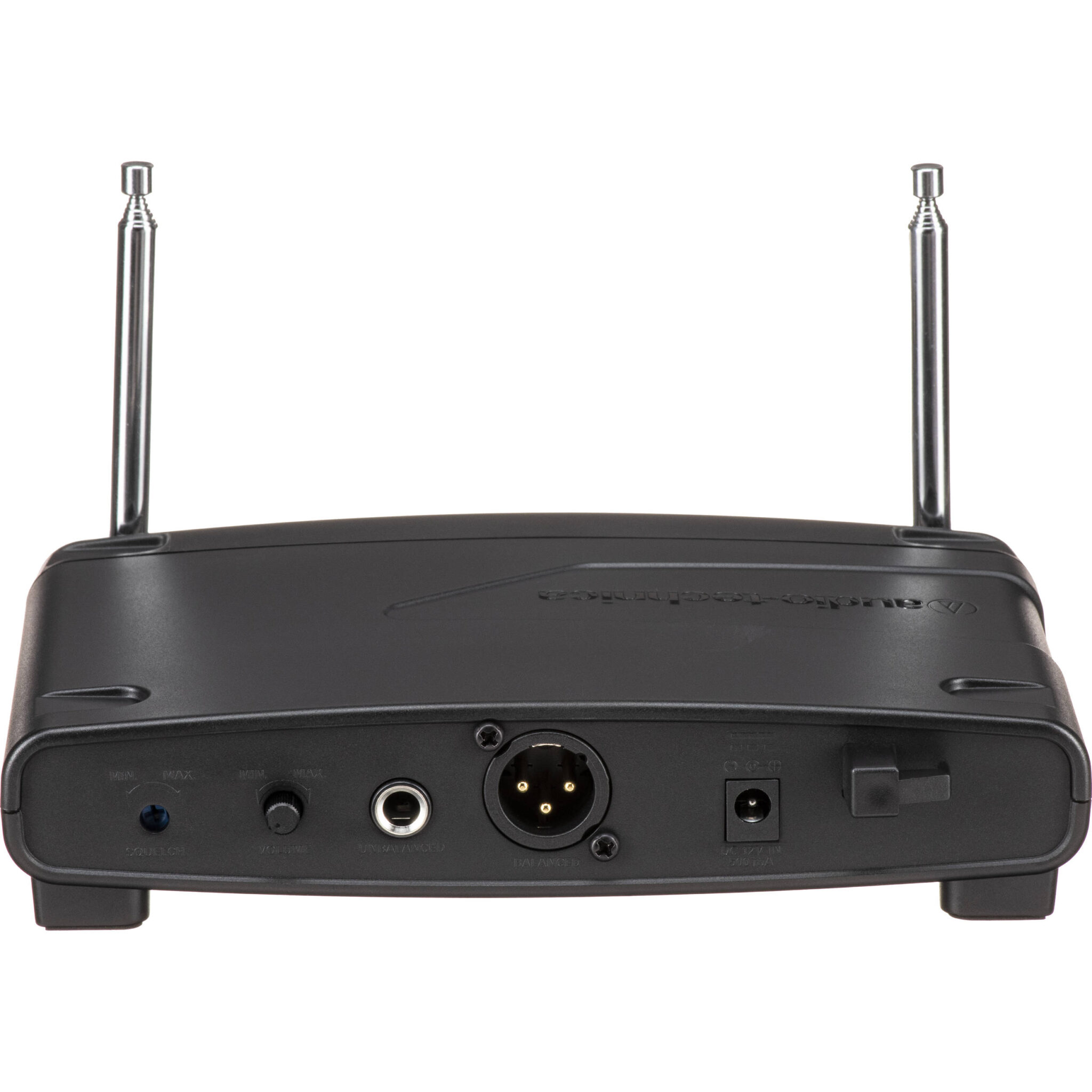

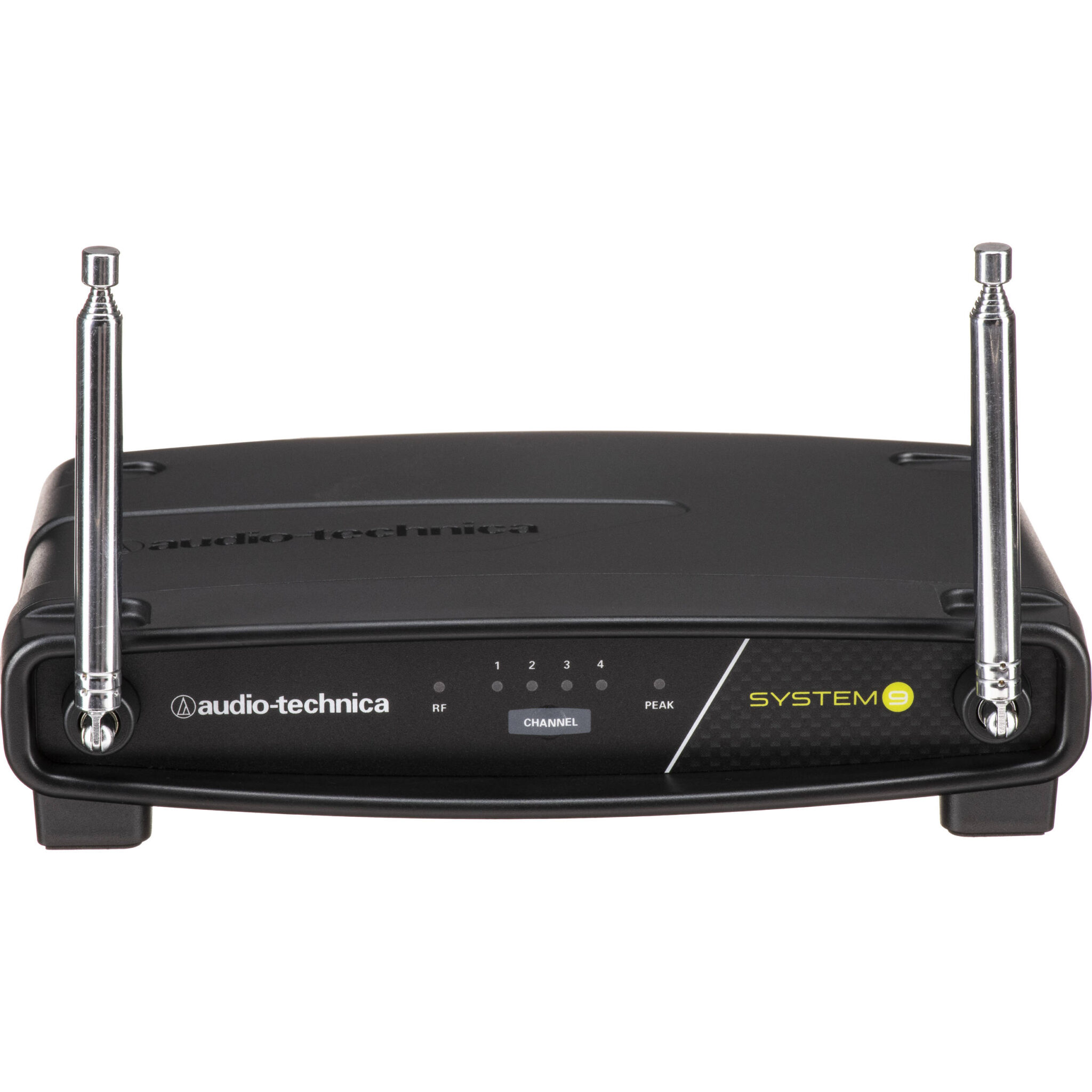

The receiver includes LED indicator lights for channel, RF, and AF peak. The back of the receiver includes a volume control knob, a squelch control knob, a balanced XLR audio output, and an unbalanced 1/4″ audio output. The receiver also includes a power cord hook to prevent accidental pull-out of the DC power supply.

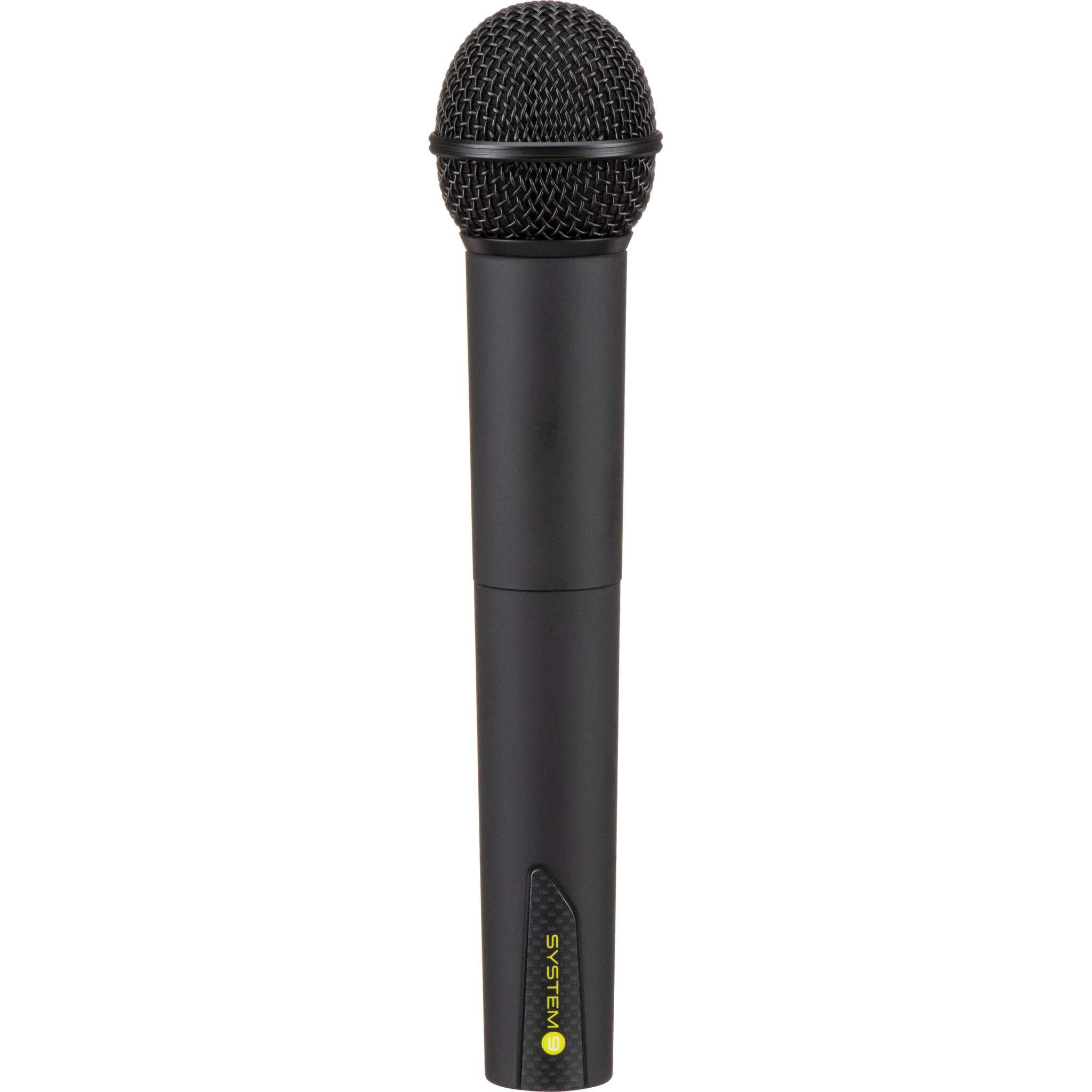

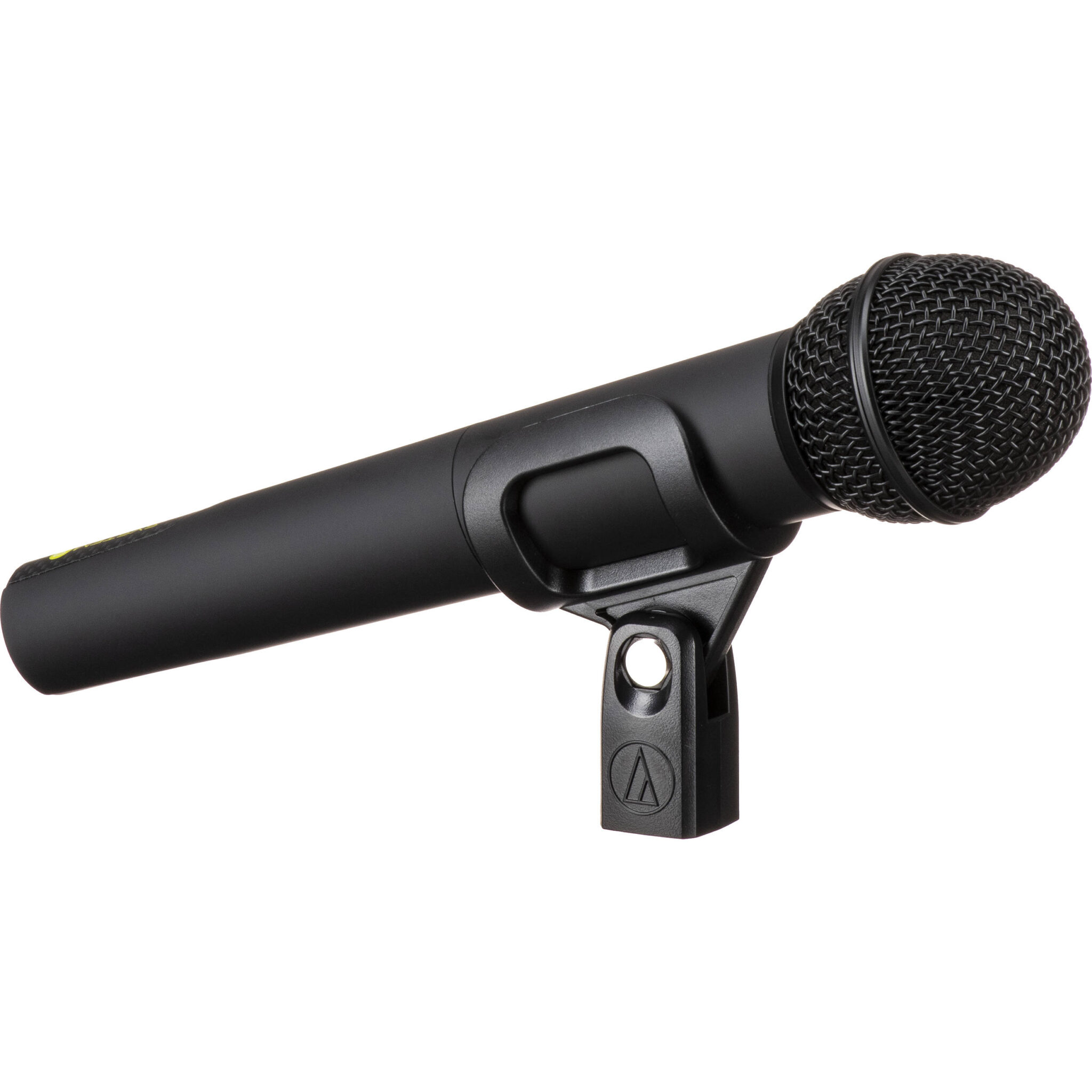

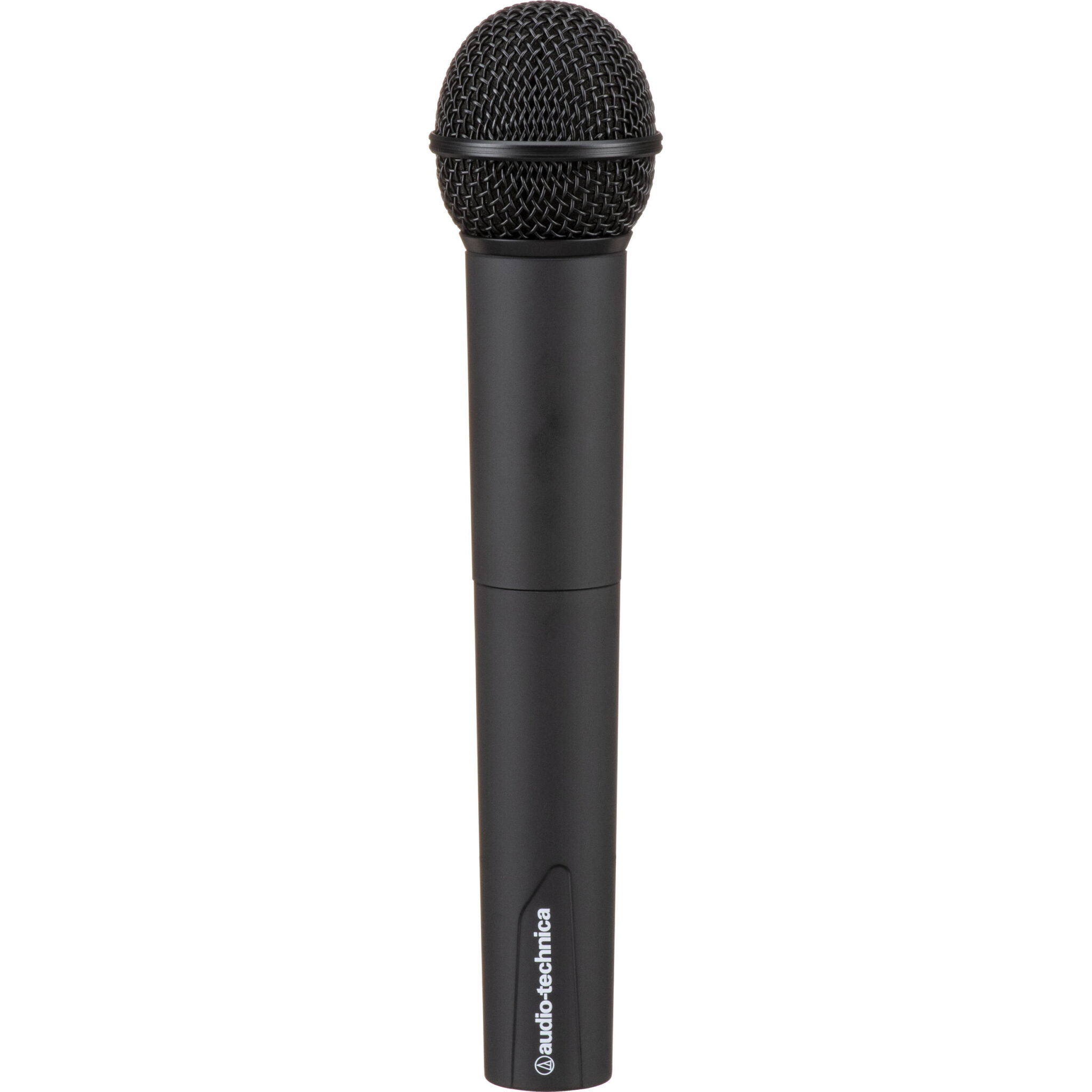

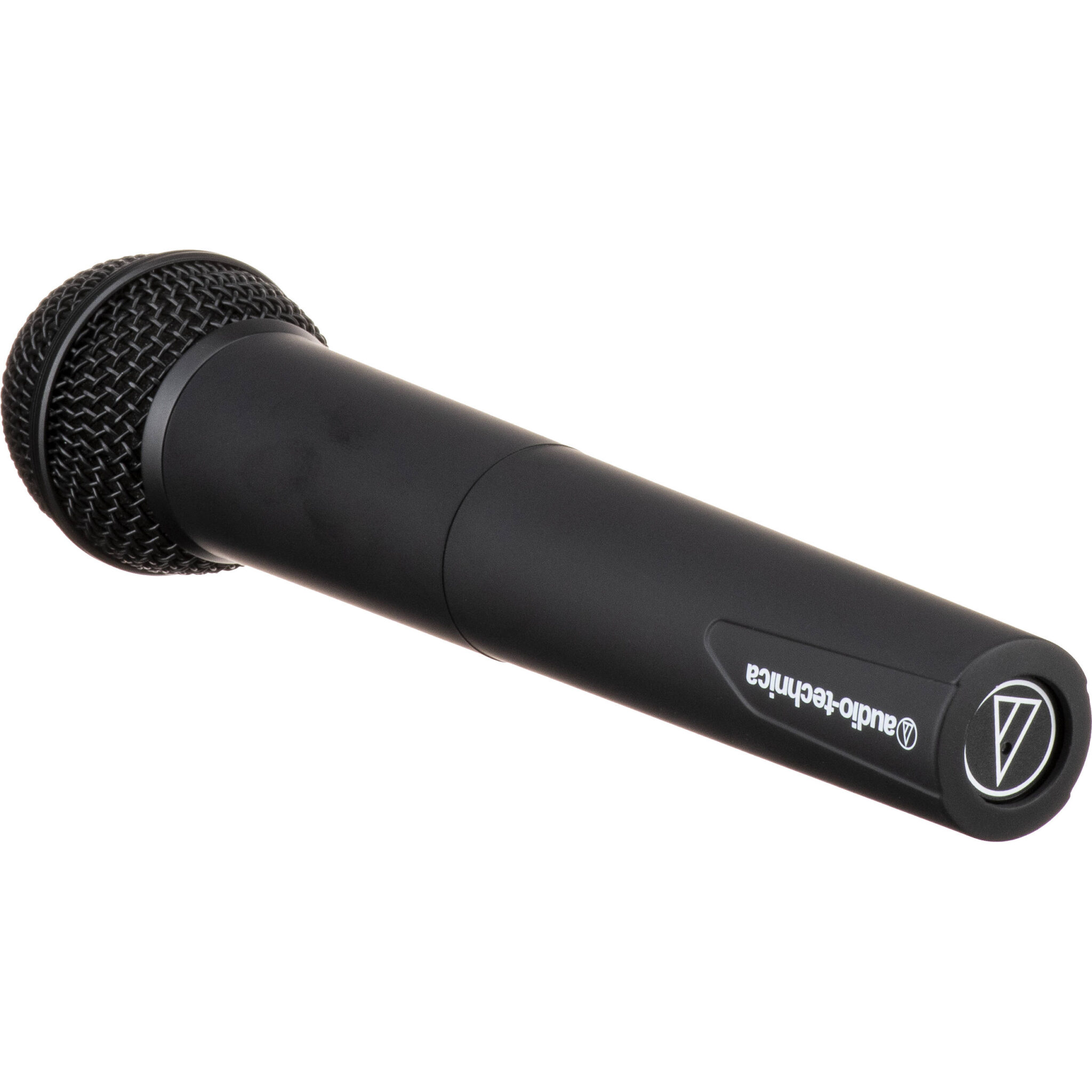

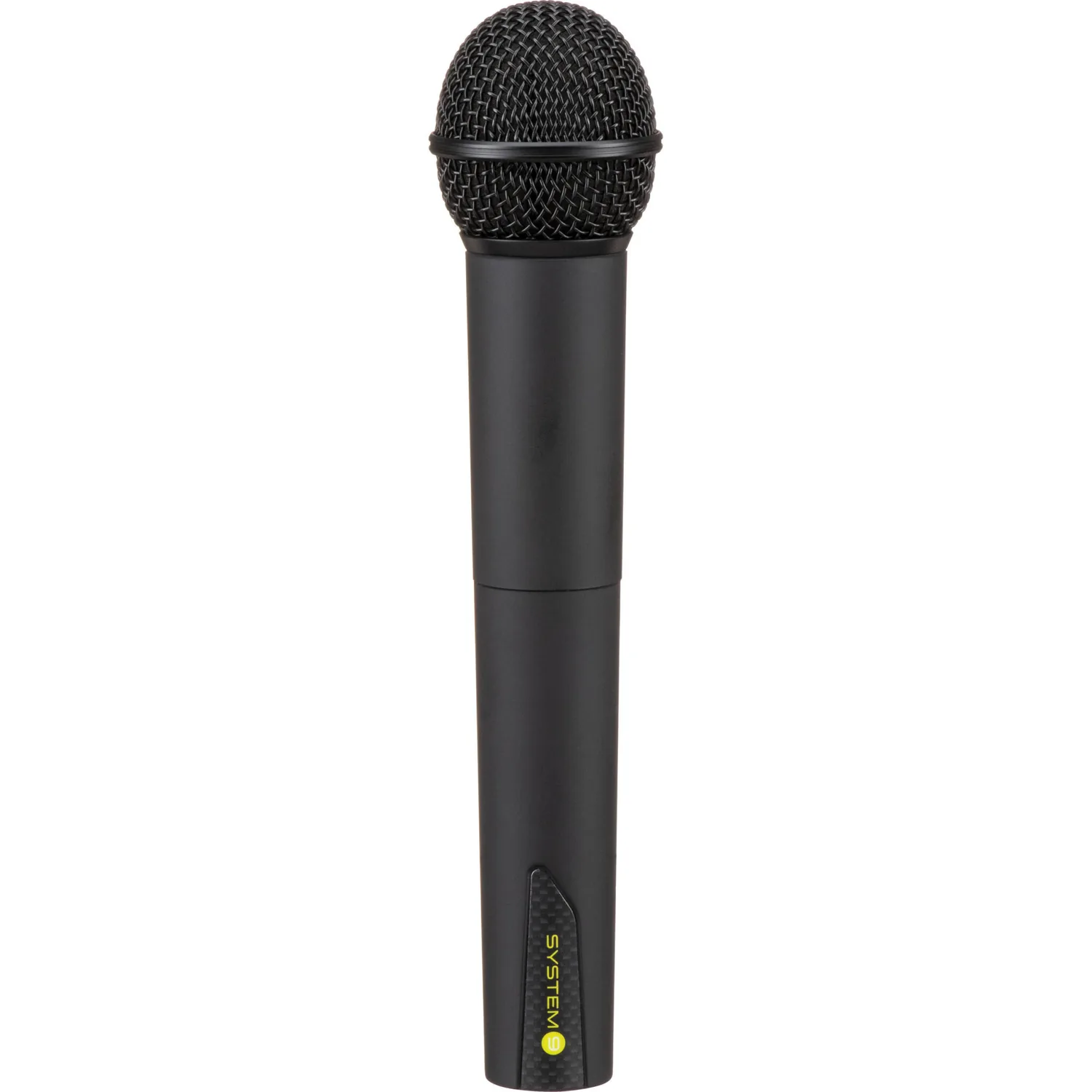

The handheld microphone transmitter is powered by two AA batteries and includes a battery status LED indicator, channel selection DIP switches, and a power/mute button.

Selectable VHF Transmission Frequencies

Select four channels from 169 to 172 MHz

Dipole Antenna for Extended Range

The receiver utilizes two antennas to improve the range of the system

Squelch Control

The receiver features a squelch adjustment knob that controls the threshold for the radio signal that regulates audio output. If the radio signal from the microphone drops below the threshold, the squelch control mutes the audio output to prevent the transmission of radio interference and white noise from entering the speakers

Aviso: Las especificaciones y disponibilidad pueden cambiar sin previo aviso.

Información adicional

Peso	1,3313 kg
Dimensiones	35,179 × 27,305 × 11,557 cm
Type	VHF High Band
Operating Frequencies	169 to 172 MHz
Modulation Mode	FM
Maximum Deviation	±10 kHz
Rango dinámico	≥90 dB (A-weighted), typical
Total Harmonic Distortion (THD)	<1% (at 1 kHz, ±10 kHz deviation)
Operating Range	200′ (61.0 m), open range environment with no interfering signals
Operating Temperature Range	40 to 110°F (4 to 43°C), battery performance may be reduced at very low temperatures
Respuesta de frecuencia	80 Hz to 13 kHz
Receiving System	Non-diversity, single-channel, dual-antenna system
Image Rejection	50 dB minimum
Audio Output	Nominal Output Level Balanced XLR: 350 mV (1 kHz modulation, 10 kHz deviation, 100-kOhm load) Unbalanced 1/4″ (6.3 mm): 700 mV (1 kHz modulation, 10 kHz deviation, 100-kOhm load)
Fuente de alimentación	100 to 240 VAC (50/60 Hz) to 12 VDC at 0.5A (center positive) switched mode external power supply
Dimensiones	7.5 x 1.8 x 5.1″ / 190 x 46.2 x 129 mm
Peso	12.0 oz / 337 g
Potencia	10 W
Spurious Emission	Following federal and national regulations
Batteries	2 x 1.5 V AA (not included)
Battery Life	8 hours (alkaline), depending on battery type and use pattern
