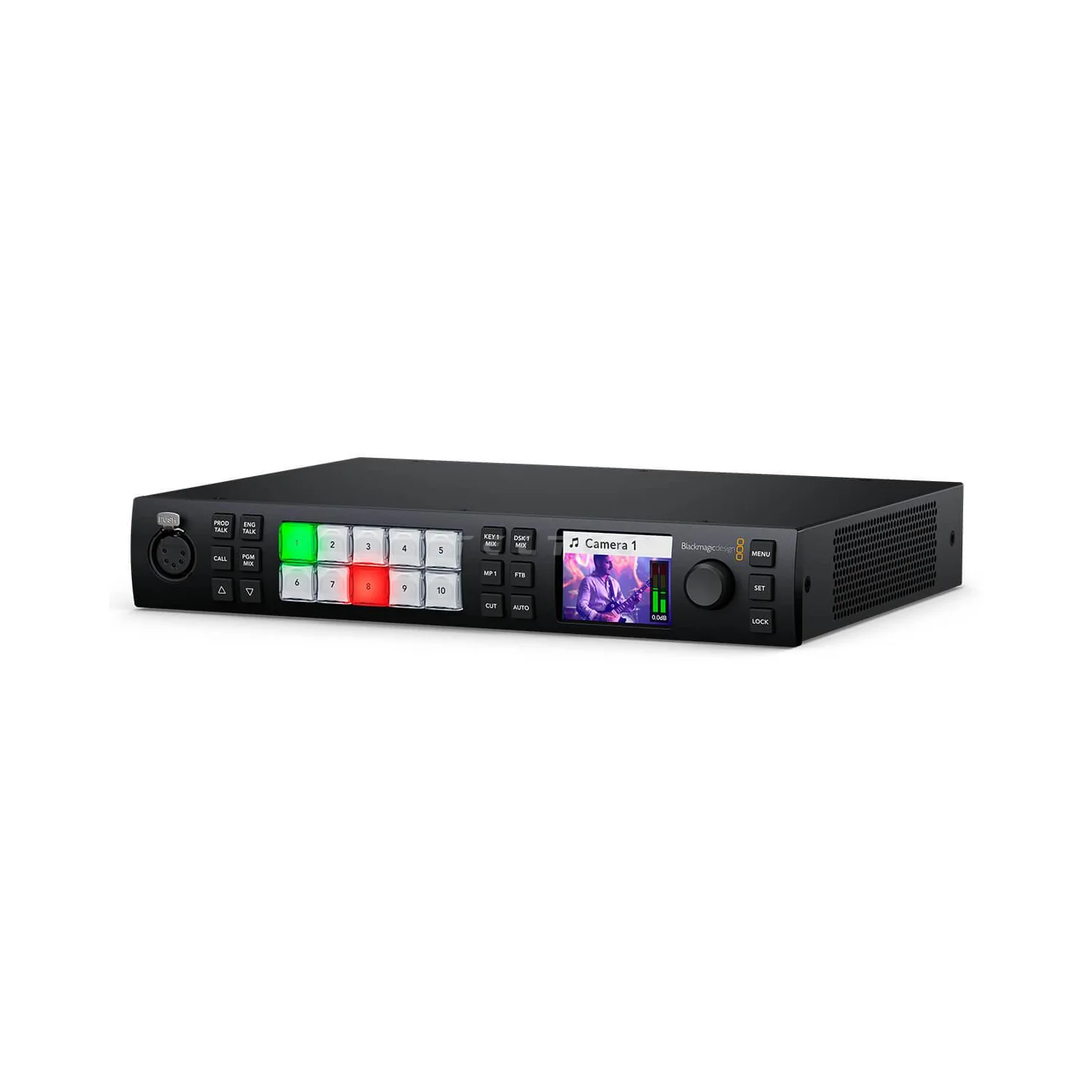

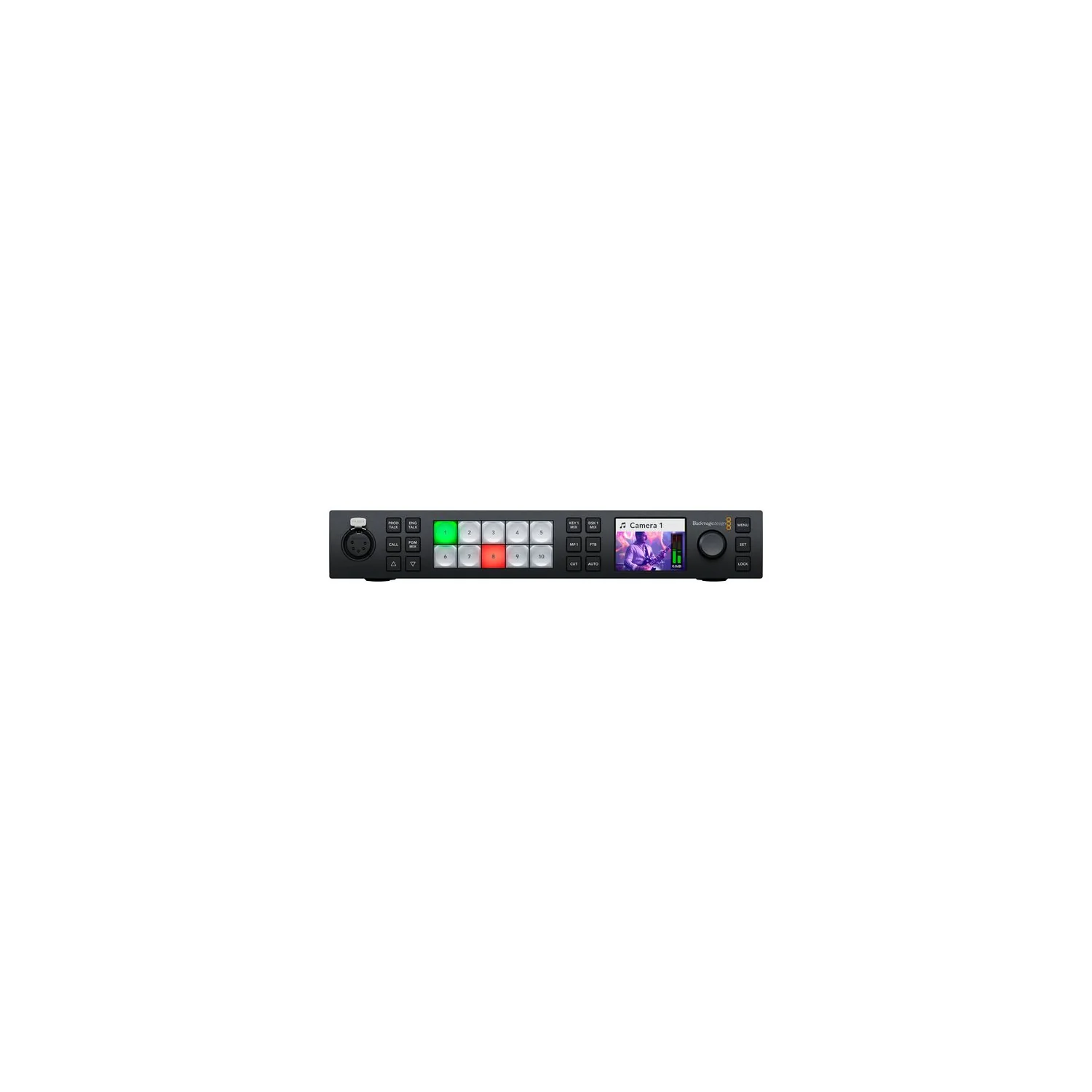

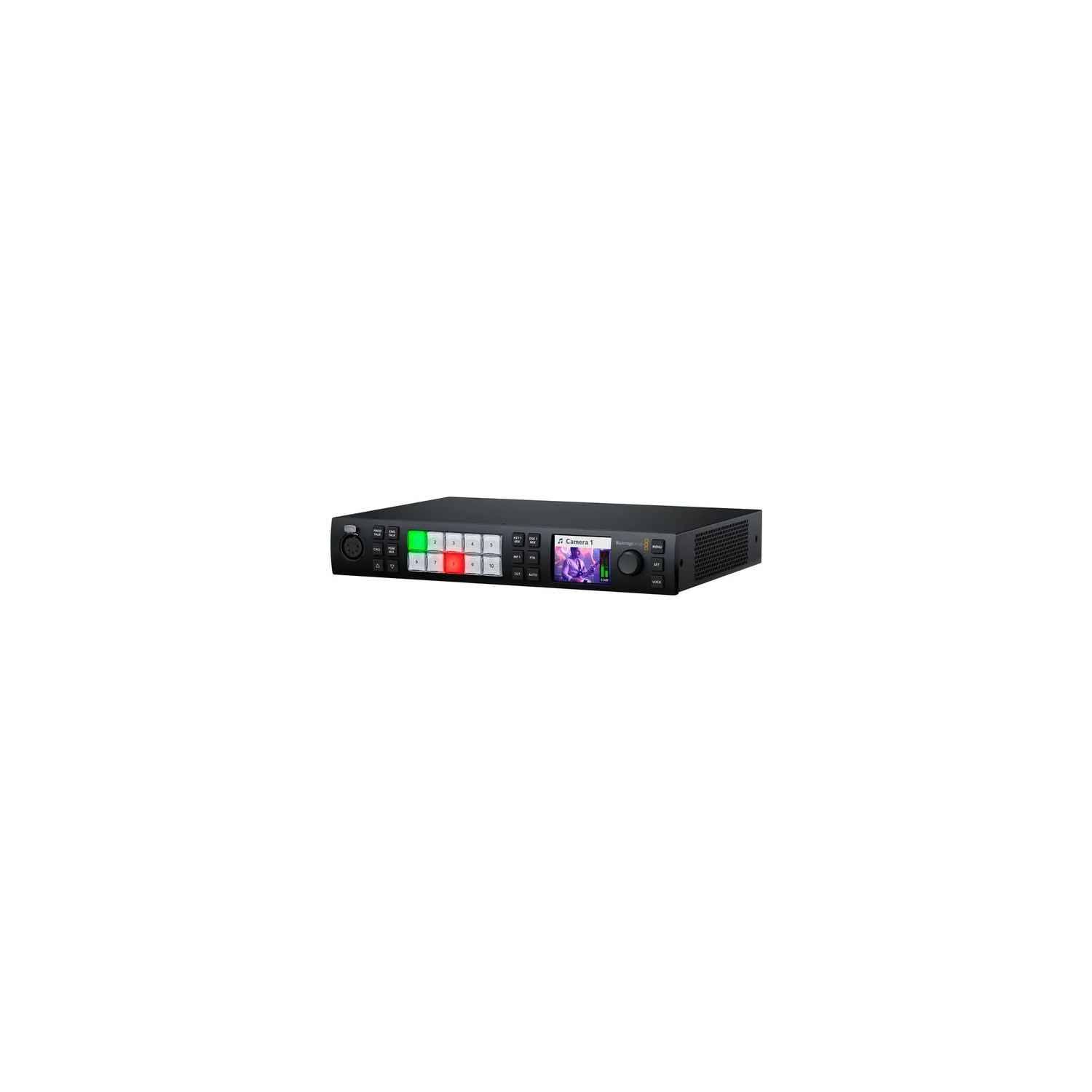

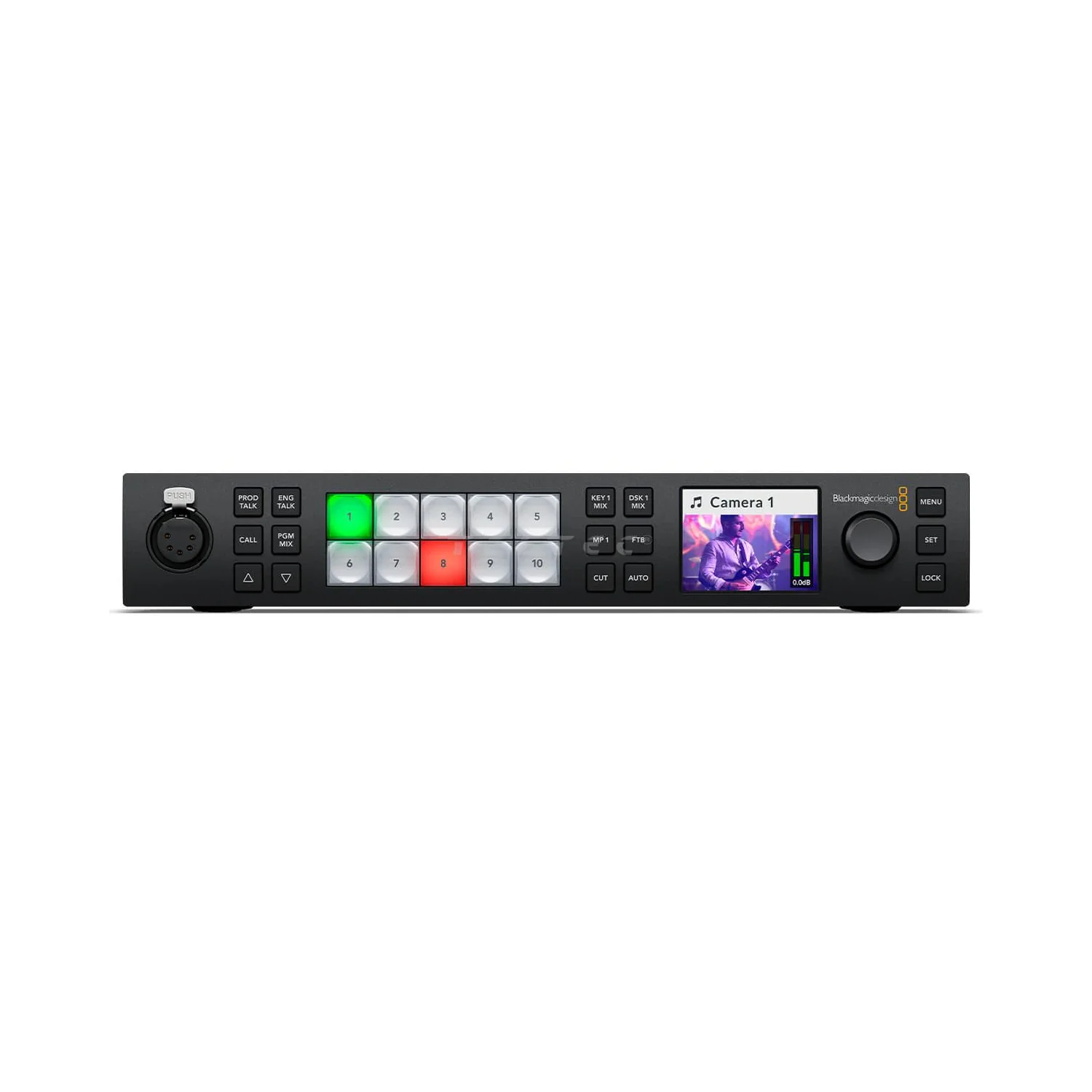

Blackmagic Design ATEM 1 M/E Constellation 4K

Descripción

The Rock Store te trae Blackmagic Design ATEM 1 M/E Constellation 4K

Sus características técnicas principales son:

Live Production Mixer
With an M/E level for Ultra HD
Ten scalable 12G-SDI inputs, six 12G-SDI aux outputs
DVE
Four ATEM Advanced Keyer
Multiviewer with 16 views
Media player and USB webcam output
Integrated Talkback
Integrated Fairlight audio mixer with 28 channels
EQ and dynamics control
Screen: Integrated 2.2-inch LCD monitor
Compatible operating systems: Mac 13.0 Ventura
Mac 14.0 Sonoma or higher / Windows 10 and 11
Power supply: 1 integrated 100-240 AC power supply unit (IEC connection cable not included)
Power consumption: 90W
Dimensions: 280.5 x 44.2 x 226.4 mm (1 U)
Weight: 1.87 kg

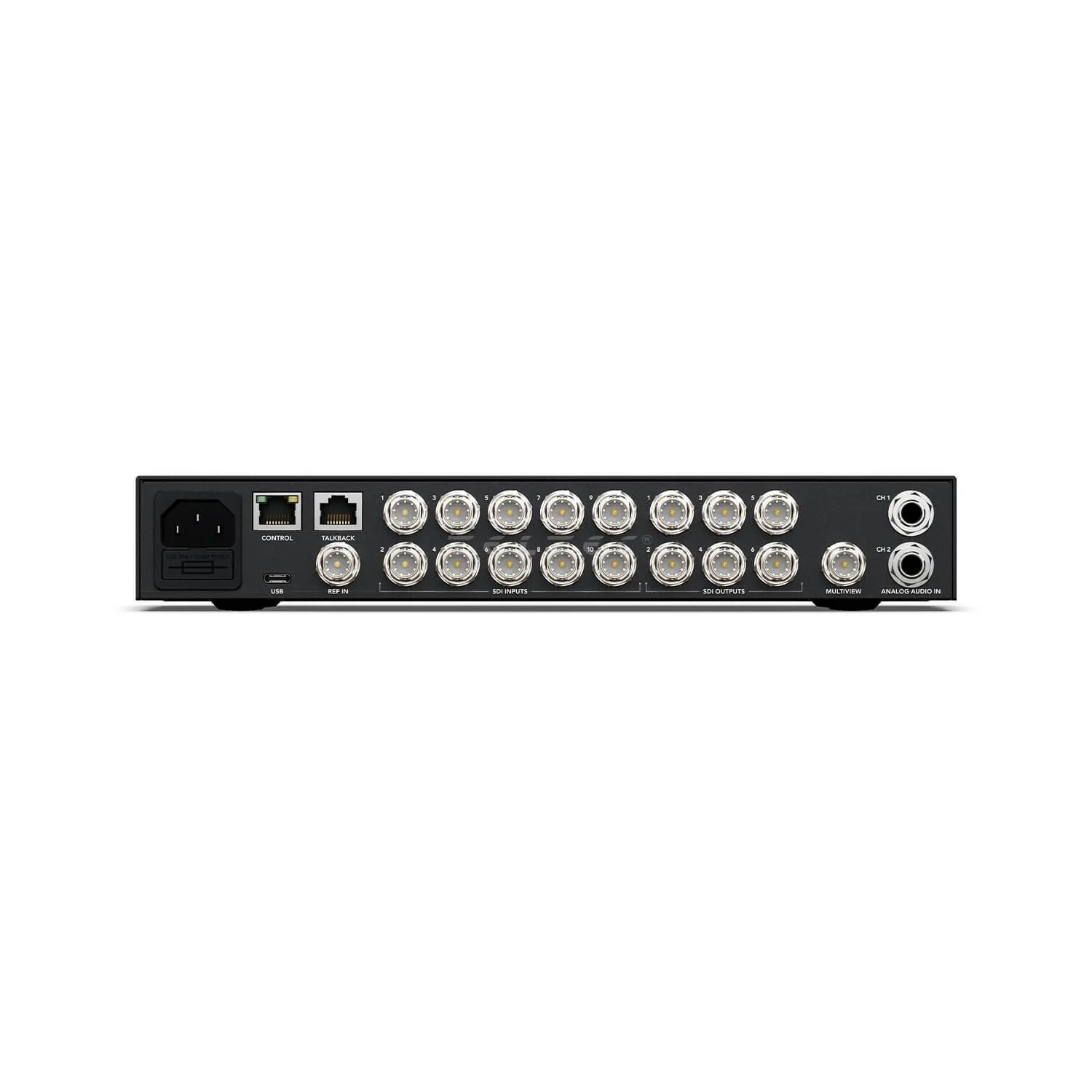

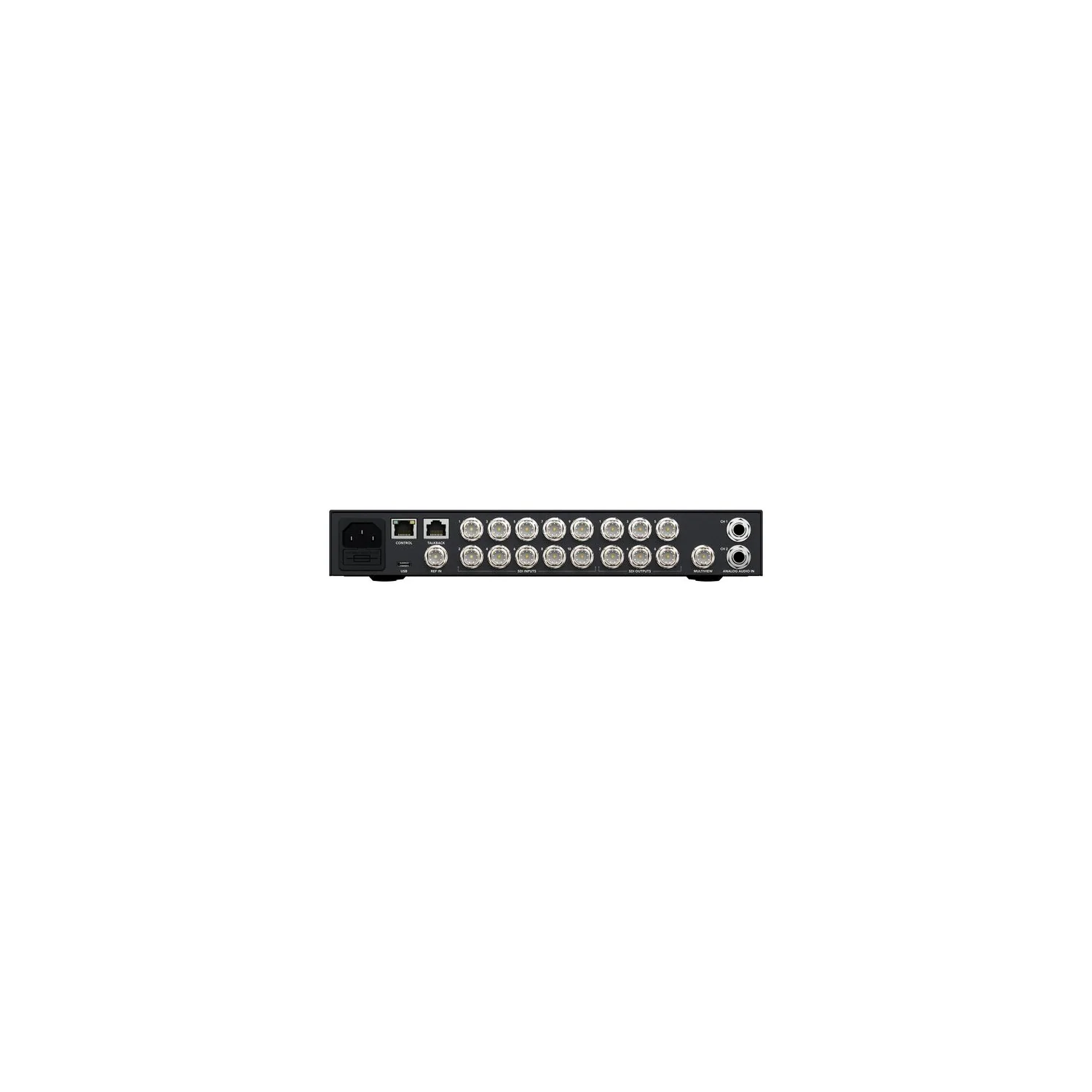

Connections:
Total video inputs: 10
Total video outputs: 6
SDI Rates: 1.5G, 3G, 6G, 12G
Total audio inputs: 2x balanced 1/4-inch sockets and 1x 5-pin XLR socket for talkback
Total audio outputs: 1x 5-pin XLR socket for talkback
SDI audio inputs: 16 embedded audio channels on all SDI inputs
SDI audio outputs: 16 embedded audio channels on all SDI outputs
Reference inputs: for Tri-Sync or Black Burst
Video inputs with resync: on all 10 inputs
Frame rate and format converter: on all 10 inputs
SDI aux outputs: any of the 6 SDI outputs
SDI preview outputs: any of the 6 SDI outputs
SDI programme outputs: any of the 6 SDI outputs
Down-converted SDI programme outputs: 1
Webcam output: 1x USB-C port supports 720p or 1080p with PGM frame rate
Number of multiviews: 1x 12G-SDI
Control panel connection: Ethernet (direct connection between panel and chassis or via a network)
Internal timecode generator: Yes
Talkback: RJ45 for third-party talkback systems
Tally output: via Ethernet connection using Blackmagic Design GPI and Tally Interface (not included)
Ethernet: Supports 10/100/1000Base-T
Computer interface: 1 USB-C port
Supports USB 2.0
Video:
720p/50, 720p/59,94, 720p/60, 1080i/50, 1080i/59,94, 1080i/60, 1080p/23,98, 1080p/24, 1080p/25, 1080p/29,97, 1080p/30, 1080p/50, 1080p/59,94, 1080p/60, Ultra-HD-Videonormen:, 2160p/23,98, 2160p/24, 2160p/25, 2160p/29,97, 2160p/30, 2160p/50, 2160p/59,94, 2160p/60
Video sampling frequency: 4:2:2
Colour accuracy: 10 bit
Colour spaces: REC 709, REC 2020
Upstream-Keyer: 4
Downstream-Keyer: 1
Advanced Chroma Keyer: 4
DVEs: 1
Linear/Luma-Keyer: 5
Transition keyer (Stinger/DVE): 1 Stinger, 1 DVE
Total number of levels: 7
Sample generators: 5
Colour generators: 2
Routable windows: 16
Source label window: yes
Talkback support: yes
n-1 support: yes
Media Player:
Media Player: 2
Channels: Fill and key signals for each media player
Media pool capacity for still images: 20
Media pool capacity for clips: 2 up to 2160p/60
Media Player clip length in 720 HD: 1600 frames
Media Player clip length in 1080 HD: 800 frames
Media Player clip length in 2160 UHD: 200 frames
Media Pool still image formats: PNG, TGA, BMP, GIF, JPEG, TIFF
Media Pool video file format: TGA sequence
Media Pool audio file format: WAV, MP3, AIFF

Especificaciones Técnicas
