Blackmagic Design Streaming Decoder 4K

Descripción

The Rock Store te trae Blackmagic Design Streaming Decoder 4K

Sus características técnicas principales son:

Streaming Decoder
Enables the reception of an H.265 stream from a Blackmagic Streaming Encoder, ATEM mixer, or Blackmagic camera and converts it back to SDI and HDMI video
Supports Blackmagic Cloud Streaming
With a 12G-SDI reference input to which an SDI tally, camera control or talkback device can be connected and the signals sent back to the encoder
Power supply via integrated AC power supply for 100–240 V (IEC power cable not included) / 4-pin XLR 12 V DC socket for external power supply or battery operation
Dimensions: 140 x 44 x 175.5 mm
Weight: 760 g

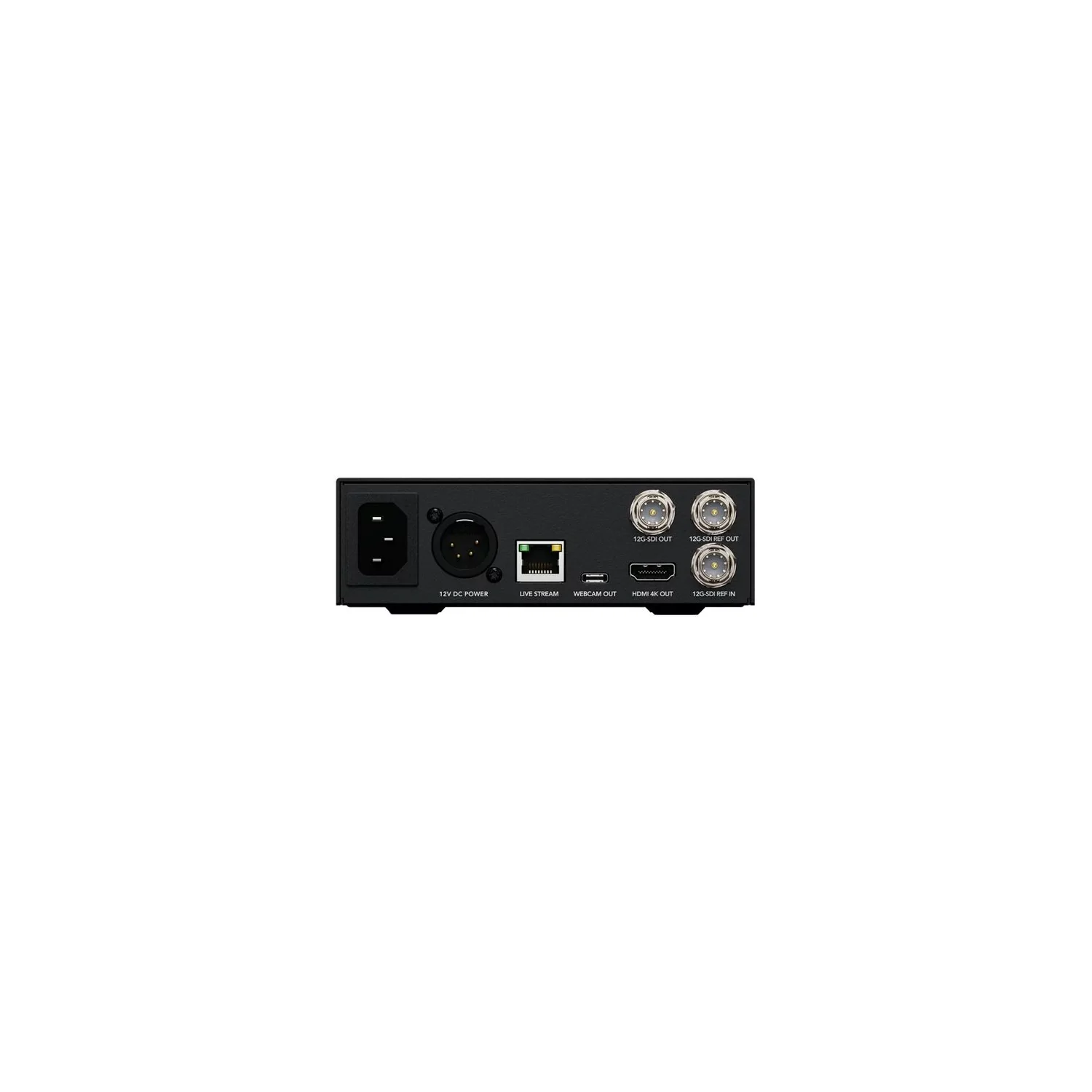

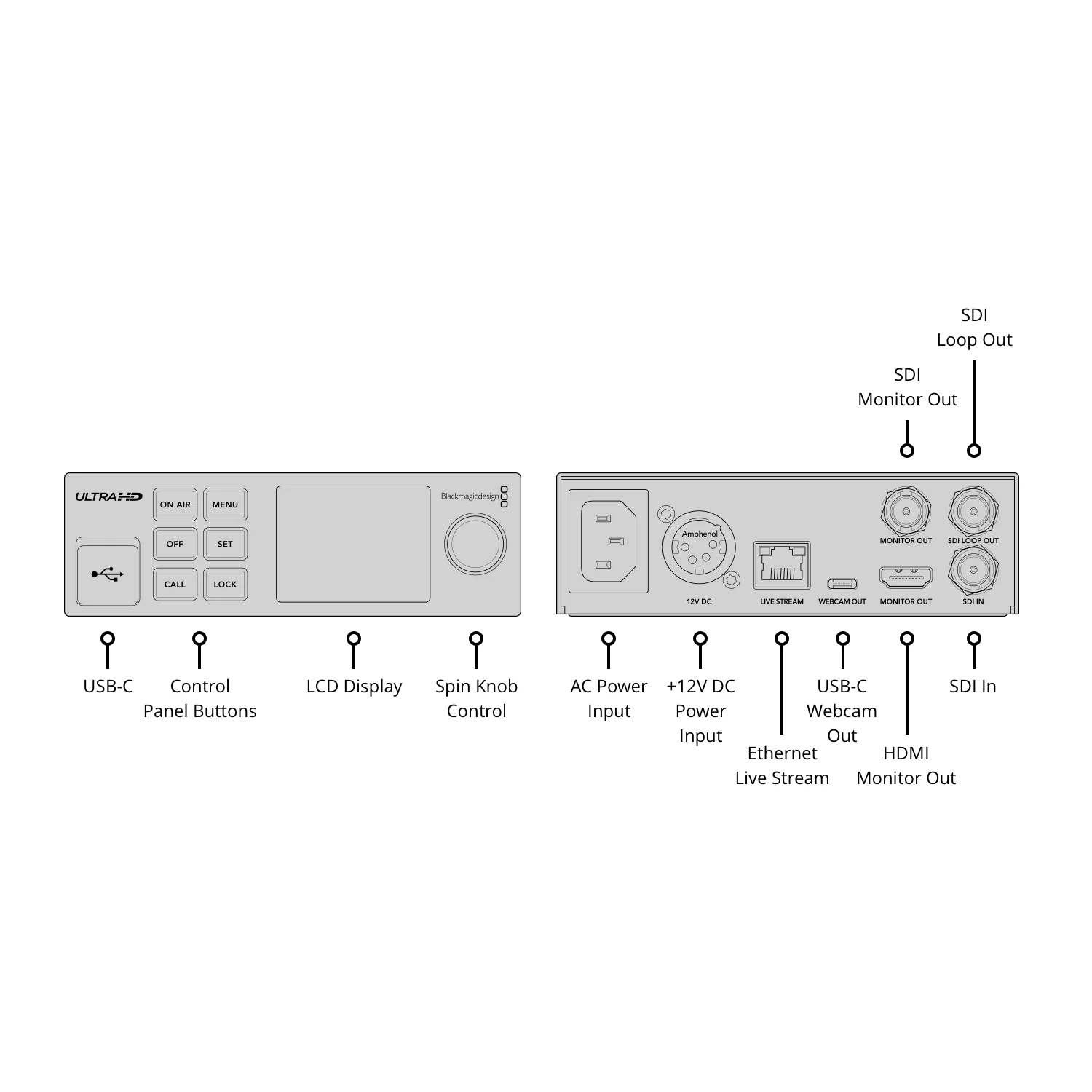

Connections:
SDI reference input: 1
SDI video outputs: 1
SDI reference output: 1
SDI rates: 1.5 G, 3 G, 6 G, 12 G
HDMI 2.0 video outputs: 1
Audio input/output for live streaming
2 channels of embedded livestream audio at the output, 2 channels of embedded programme audio at the input, 2 channels of embedded talkback audio at the input
SDI audio inputs: 16 channels of embedded audio on the 12G-SDI reference input
SDI audio outputs: 16 channels of embedded audio on the 12G-SDI reference output, 2 channels of embedded audio on the 12G-SDI output
HDMI audio outputs: 8 channels of embedded audio on the monitoring output
Webcam output: 1 USB-C port up to 2160p/60
Ethernet: supports 10/100/1000BaseT for live streaming, configuration and software updates

Equipo para Streaming Blackmagic Design Streaming Decoder 4K

Streaming Decoder Enables the reception of an H.265 stream from a Blackmagic Streaming Encoder, ATEM mixer, or Blackmagic camera and converts it back to SDI and HDMI video Supports Blackmagic Cloud Streaming With a 12G-SDI reference input to which an SDI tally, camera control or talkback device can be connected and the signals sent back to the encoder Power supply via integrated AC power supply for 100–240 V (IEC power cable not included) / 4-pin XLR 12 V DC socket for external power supply or battery operation Dimensions: 140 x 44 x 175.5 mm Weight: 760 g Connections: SDI reference input: 1 SDI video outputs: 1 SDI reference output: 1 SDI rates: 1.5 G, 3 G, 6 G, 12 G HDMI 2.0 video outputs: 1 Audio input/output for live streaming 2 channels of embedded livestream audio at the output, 2 channels of embedded programme audio at the input, 2 channels of embedded talkback audio at the input SDI audio inputs: 16 channels of embedded audio on the 12G-SDI reference input SDI audio outputs: 16 channels of embedded audio on the 12G-SDI reference output, 2 channels of embedded audio on the 12G-SDI output HDMI audio outputs: 8 channels of embedded audio on the monitoring output Webcam output: 1 USB-C port up to 2160p/60 Ethernet: supports 10/100/1000BaseT for live streaming, configuration and software updates

Especificaciones Técnicas

Aviso: Las especificaciones y disponibilidad pueden cambiar sin previo aviso. Precio mostrado en EUR de origen. Consultar precio final en tienda.
