Blackmagic Design Videohub Mini 8×4 12G

Descripción

The Rock Store te trae Blackmagic Design Videohub Mini 8×4 12G

Sus características técnicas principales son:

Zero-Latency Router
For simultaneous routing of any combination of SD, HD and Ultra HD video signals
Features 8 x 12G-SDI inputs, 4 x 12G-SDI outputs and reference connections for clean switch outputs
In addition, the crossbar has a 12G-SDI emergency connection for connecting external devices, as well as a USB-C webcam video output
Alongside SDI reclocking and external control via Ethernet, all SDI video standards up to 2160p/60 are supported
Power supply: 1 integrated AC power supply for 100–240 V, 50/60 Hz (IEC power cable not included), 1 x 12 V DC input with reverse polarity protection
Current consumption: max. 23 W
Dimensions: 280 x 46.3 x 173.3 mm
Weight: 1.62 kg

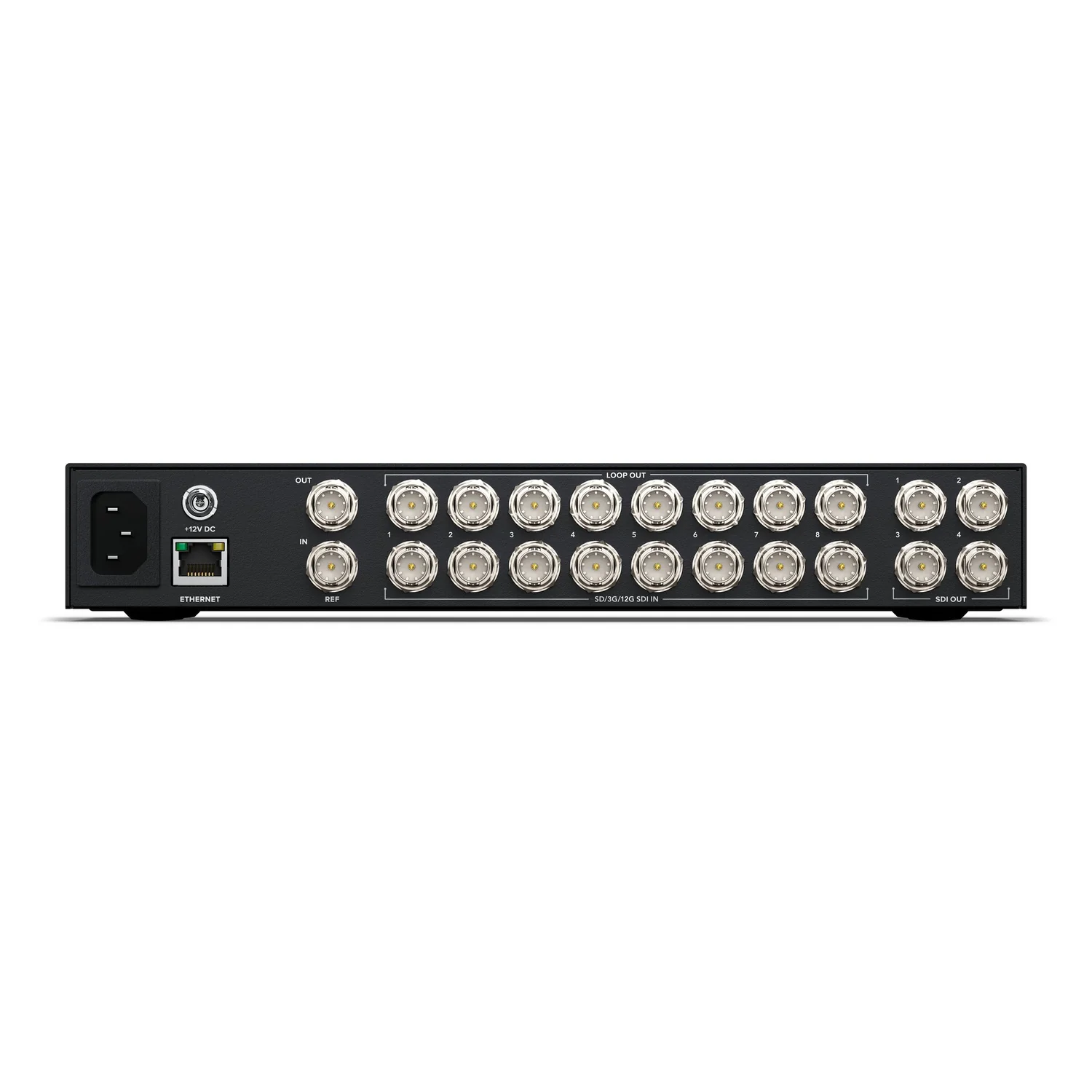

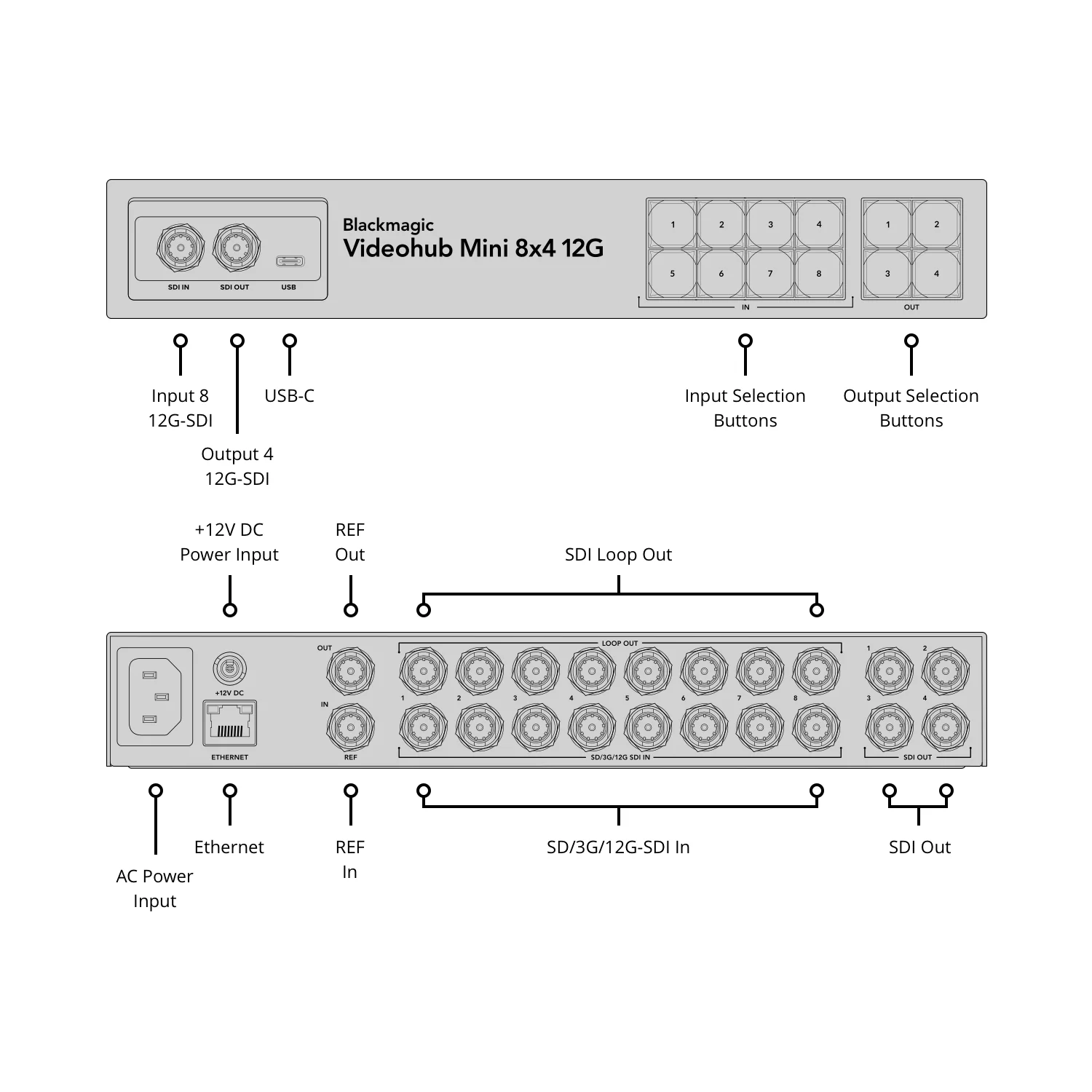

Connections:
SDI video inputs: 8 – Input on the front panel takes precedence over input 8 on the rear panel
SDI video outputs: 4 – Output on the front panel mirrors output on rear output 4
SDI rates: 270 Mbit, 1.5 G, 3 G, 6 G, 12 G
Video inputs with resync: On all 8 inputs for clean switch
SDI resynchronisation: on all SDI outputs
Reference inputs for Tri-Sync or Black Burst
Reference output with termination switching for loop-through
Webcam output: USB-C
Ethernet: supports 10/100/1000 Base-T
Computer interface: 1 USB-C 3.1 Gen. 1 as webcam output, for software updates and for connecting the video setup utility
Zero-Latency Router For simultaneous routing of any combination of SD, HD and Ultra HD video signals Features 8 x 12G-SDI inputs, 4 x 12G-SDI outputs and reference connections for clean switch outputs In addition, the crossbar has a 12G-SDI emergency connection for connecting external devices, as well as a USB-C webcam video output Alongside SDI reclocking and external control via Ethernet, all SDI video standards up to 2160p/60 are supported Power supply: 1 integrated AC power supply for 100–240 V, 50/60 Hz (IEC power cable not included), 1 x 12 V DC input with reverse polarity protection Current consumption: max. 23 W Dimensions: 280 x 46.3 x 173.3 mm Weight: 1.62 kg Connections: SDI video inputs: 8 – Input on the front panel takes precedence over input 8 on the rear panel SDI video outputs: 4 – Output on the front panel mirrors output on rear output 4 SDI rates: 270 Mbit, 1.5 G, 3 G, 6 G, 12 G Video inputs with resync: On all 8 inputs for clean switch SDI resynchronisation: on all SDI outputs Reference inputs for Tri-Sync or Black Burst Reference output with termination switching for loop-through Webcam output: USB-C Ethernet: supports 10/100/1000 Base-T Computer interface: 1 USB-C 3.1 Gen. 1 as webcam output, for software updates and for connecting the video setup utility

Especificaciones Técnicas
