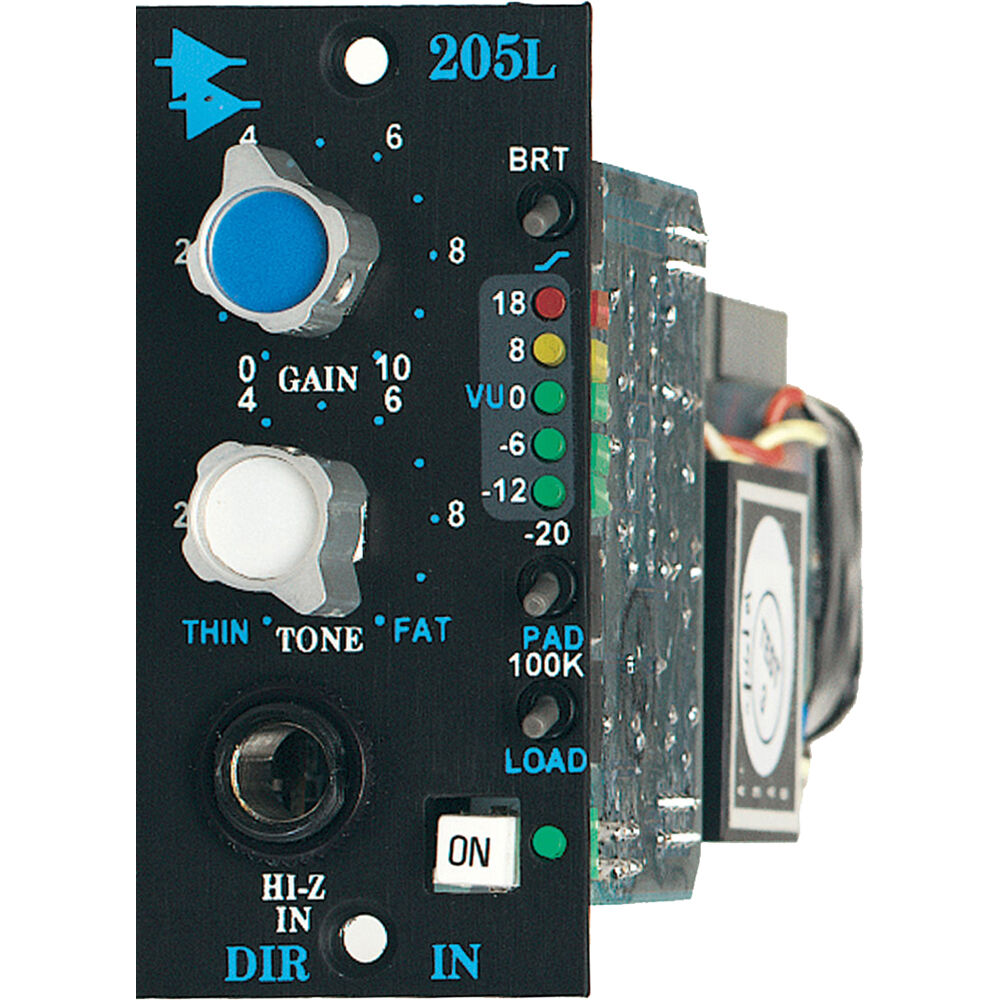

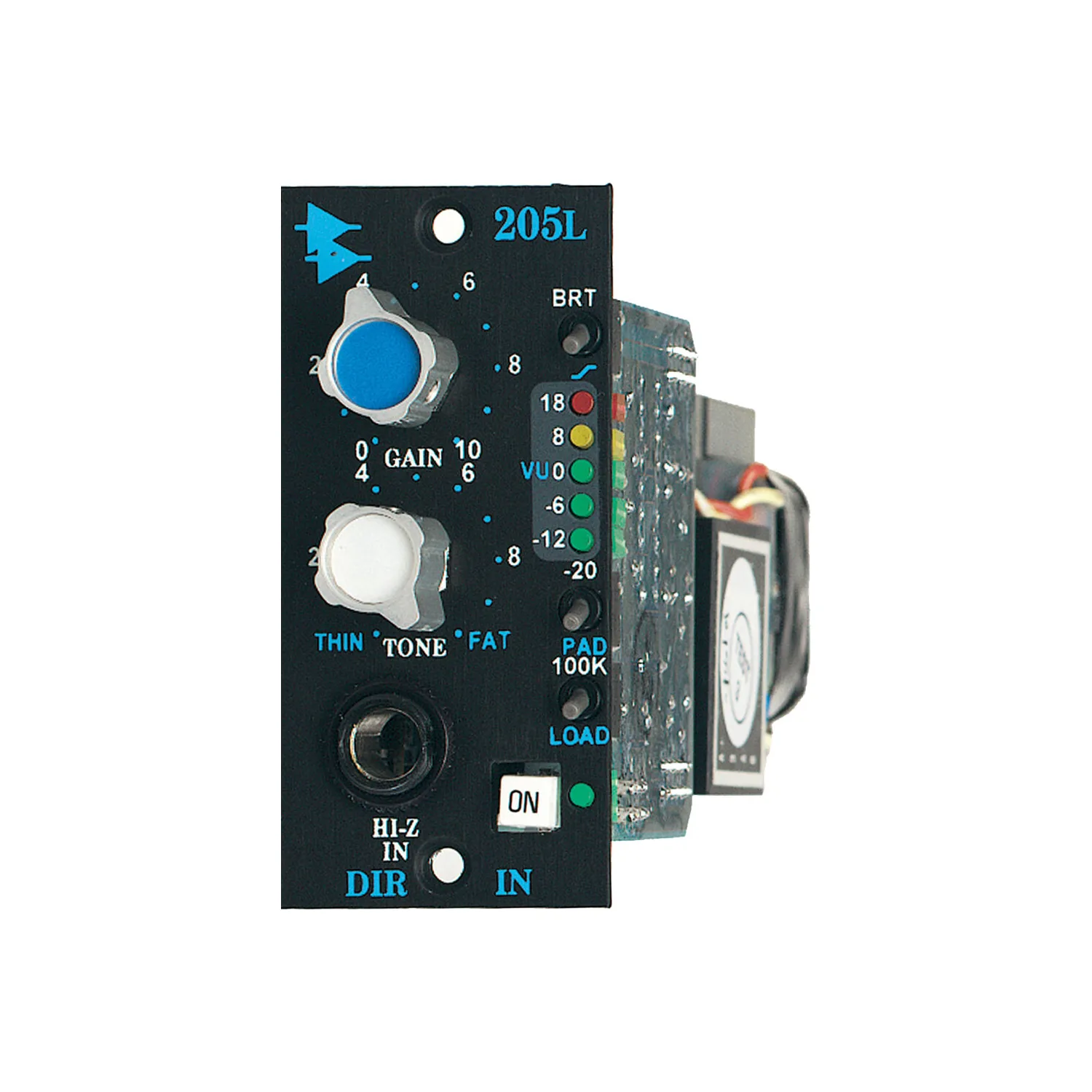

API AUDIO 205L 200-Series Direct Input Module

Descripción

The Rock Store te trae API AUDIO 205L 200-Series Direct Input Module

Sus características técnicas principales son:

Designed specifically to facilitate input of Hi-Z instruments like guitar and bass with API Audio Legacy/Vision consoles and the L200 rack, the 205L is a 200-series direct input module with a 1/4″ Hi-Z input on the front panel. With the ability to bring passive instruments up to a hefty level with minimal pickup loading, just like a tube amp, this module brings the most out of instruments.

A wide-ranging gain control lets you adjust the instrument’s input level up to a +4 dBu output. The Tone control is useful for eliminating muddiness, which can sometimes plague low-end frequencies. A Bright switch boosts treble frequencies and adds presence, much like similarly named functions on guitar amps. Further functions include a -20 dB input pad for preamplified signals (such as those from keyboards, drum machines, and samplers) and a 100k load switch, which alters the tone of the pickup, darkening high-frequency material. A 5-segment LED meter lets you keep an eye on your output levels. And with a discrete design, including 2510/2520 op-amps and a custom output transformer, the 205L offers the signature analog sound API is known for.

Tone Like a Tube Amp

The API 205L is specifically designed to accept a guitar or bass direct into it, without any loading on the pickups. The input is designed to load a pickup the same way that a tube guitar amp would, retaining all of the tone, and minimizing the loading effect on the pickup. This minimal path eliminates the need to use a standard direct box, which more times than not only converts the signal to a balanced mic-level output, which still requires a mic input, equalizer, and fader to get the signal to a recordable level.

Build Your Custom Setup

When used with other 200L series modules, a complete input strip can be built from input through dynamics, equalization, and final output. Also, the output of the 205L can be fed to tape, or the input of a guitar power amplifier. The artist can then be in the control room while the instrument amp is isolated in the studio.

The 205L can be used in the Legacy or Vision Series Consoles, or in the L200 Rack. The 205L Direct makes use of the 2510 and 2520 op-amps and therefore exhibits the reliability, long life, and uniformity characteristic of API products.

Aviso: Las especificaciones y disponibilidad pueden cambiar sin previo aviso.
