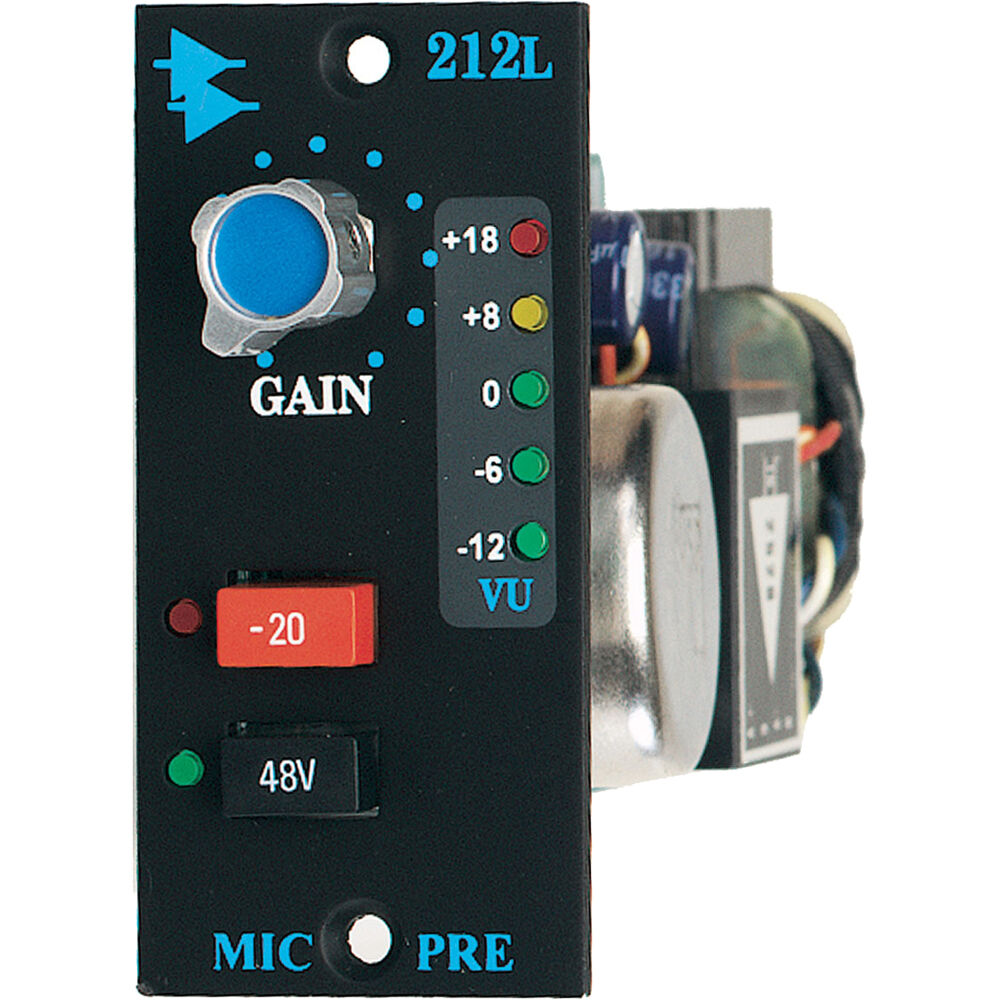

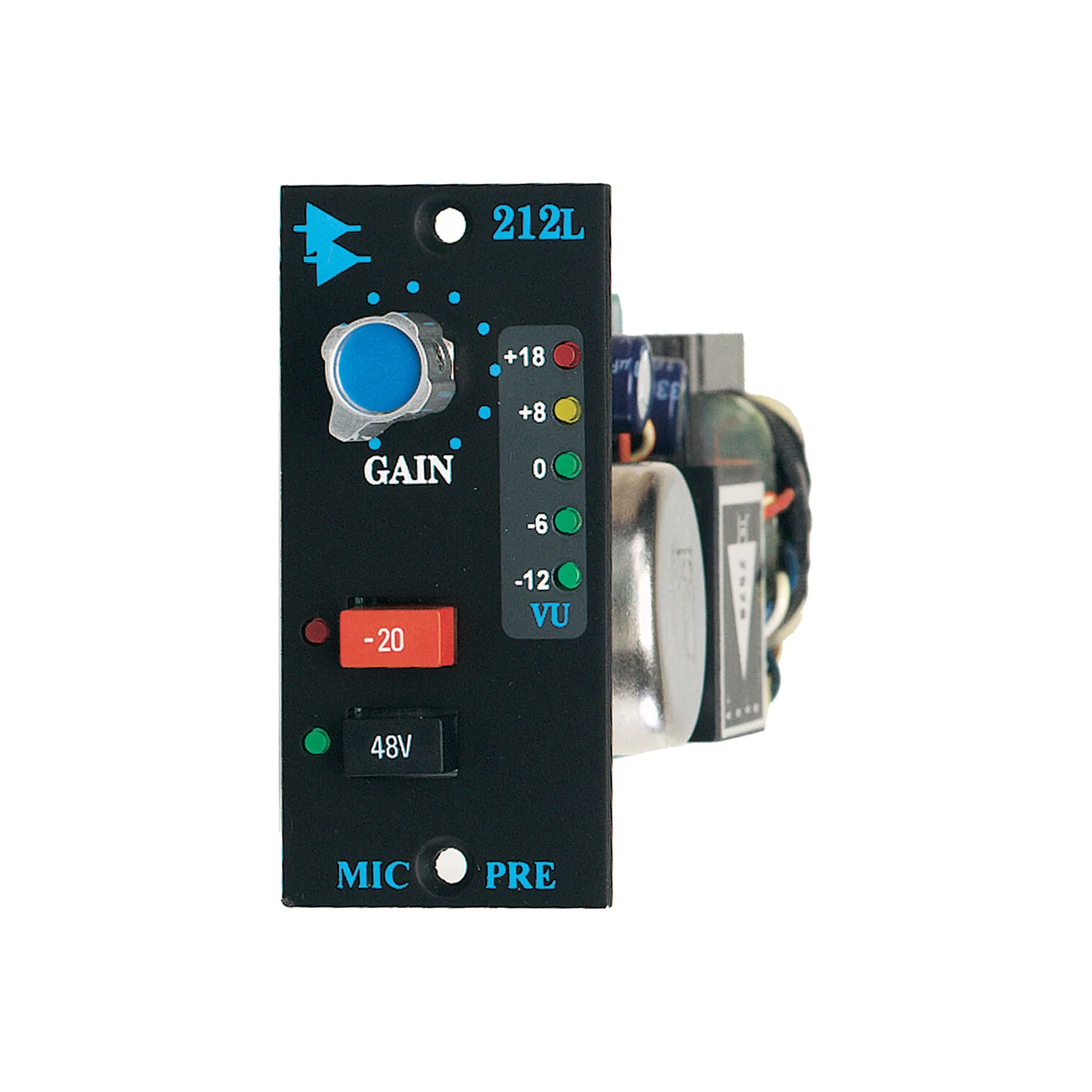

API AUDIO 212L 200-Series Microphone Preamp Module

El precio original era: $2.478.499.El precio actual es: $2.077.899.

API AUDIO 212L 200-Series Microphone Preamp Module

  • For Legacy/Vision Consoles and L200 Rack
  • 55 dB of Continuously Variable Gain
  • -20 dB Input Pad
  • Selectable 48V Phantom Power

Delivering the famed LA sound to 200-series consoles and racks with its classic, discrete circuitry, the API Audio 212L is a microphone preamp module that fits the Legacy and Vision consoles and the L200 rack chassis. Providing up to 55 dB of continuously variable gain control and a 2520 op-amp with transformer-balanced I/O, the 212L offers big sound with a warm bottom end. The 212L is designed to articulate high-frequency content with excellent detail. A -20 dB pad is provided for hot signals. You also get a button for selecting 48V phantom power. A 5-segment LED VU meter lets you keep an eye on your signal levels. Along with a low noise floor and high clipping point of +28 dBm, the 212L is an ideal starting point for many signals in professional recording applications.

Bajo Pedido - Disponible para reserva

Valor por transferencia (Precio en Rojo) - Débito/Crédito (6 cuotas s/interés): Precio tachado

6 Cuotas fijas de $439.822

3 Cuotas fijas de $803.454


Abonando en efectivo en nuestras oficinas te queda en $1.953.199 o USD1.313.

Descripción

Descripción

The Rock Store te trae API AUDIO 212L 200-Series Microphone Preamp Module

Sus características técnicas principales son:

Delivering the famed LA sound to 200-series consoles and racks with its classic, discrete circuitry, the API Audio 212L is a microphone preamp module that fits the Legacy and Vision consoles and the L200 rack chassis. Providing up to 55 dB of continuously variable gain control and a 2520 op-amp with transformer-balanced I/O, the 212L offers big sound with a warm bottom end.

The 212L is designed to articulate high-frequency content with excellent detail. A -20 dB pad is provided for hot signals. You also get a button for selecting 48V phantom power. A 5-segment LED VU meter lets you keep an eye on your signal levels. Along with a low noise floor and high clipping point of +28 dBm, the 212L is an ideal starting point for many signals in professional recording applications.

The Famous LA Sound

The tone of the 212L mic preamp finds its roots in the classic API 2488 series all discrete recording consoles, best known for the famed LA sound. This same mic preamp design is packaged into a compact module with features like continuously adjustable Gain control and a unique 5-segment LED VU meter on each panel.

The API 212L microphone preamplifier is an integral part of the famous Legacy and Visions series of consoles and is available for the L200 Rack System. The 212L Microphone Preamplifier makes use of the 2520 op-amp and therefore exhibits the reliability, long life, and uniformity, which are characteristic of API products.

Aviso: Las especificaciones y disponibilidad pueden cambiar sin previo aviso.

Información adicional

Información adicional

Peso0,4995 kg
Dimensiones16,5 × 6,73 × 3,17 cm
Compatibilidad– API Audio – Legacy Console – / – Vision Console – / – L200 Rack Chassis
Impedancia de entrada1.5 Kilohms
Impedancia de salida85 Ohms (Transformer Balanced)
Nivel máximo de entrada+2 dBu (No Pad)
Ganar controlUp to 55 dB (Maximum)
Respuesta de frecuencia30 to 20 kHz
Ruido-125 dBA
THD+N0.02% (+4 dB at 2 kHz) 0.01% (+15 dB at 2 kHz) 0.05% (-15 dB at 2 kHz)
Fuente de energíaProprietary Interface
Alimentación de entrada CC16 VDC
Corriente de funcionamiento40 mA (Maximum)
MontajeFront: 2x 200-Series Rack Screw
Color
Material de construcciónMetal
Dimensiones6.5 x 2.65 x 1.25″ / 16.5 x 6.73 x 3.17 cm
Peso0.55 lb / 0.25 kg
