API AUDIO 312 500-Series Microphone Preamp Module

El precio original era: $2.844.699.El precio actual es: $2.384.899.

Classic 312 Mic Pre in 500-Series Module
69 dB of Gain
Discrete Circuitry with 2520 Op-Amp
AP2516 Input Transformer

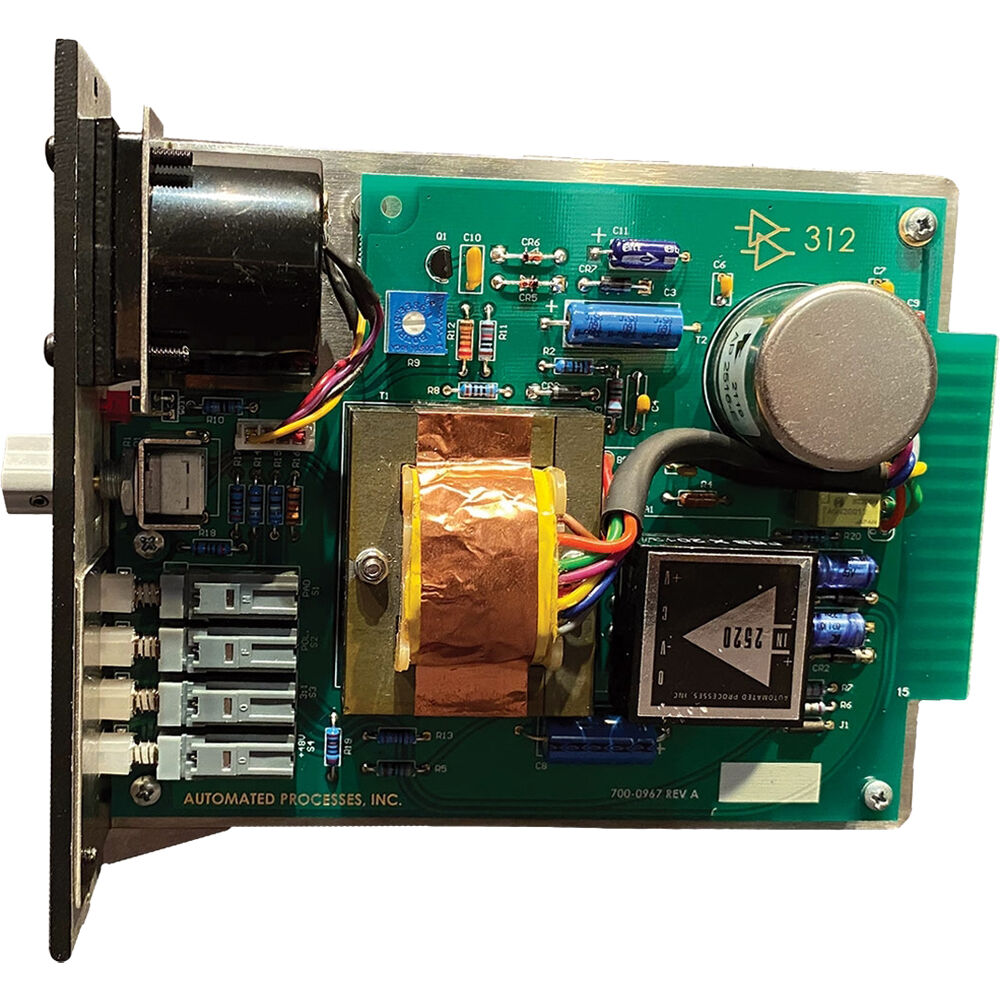

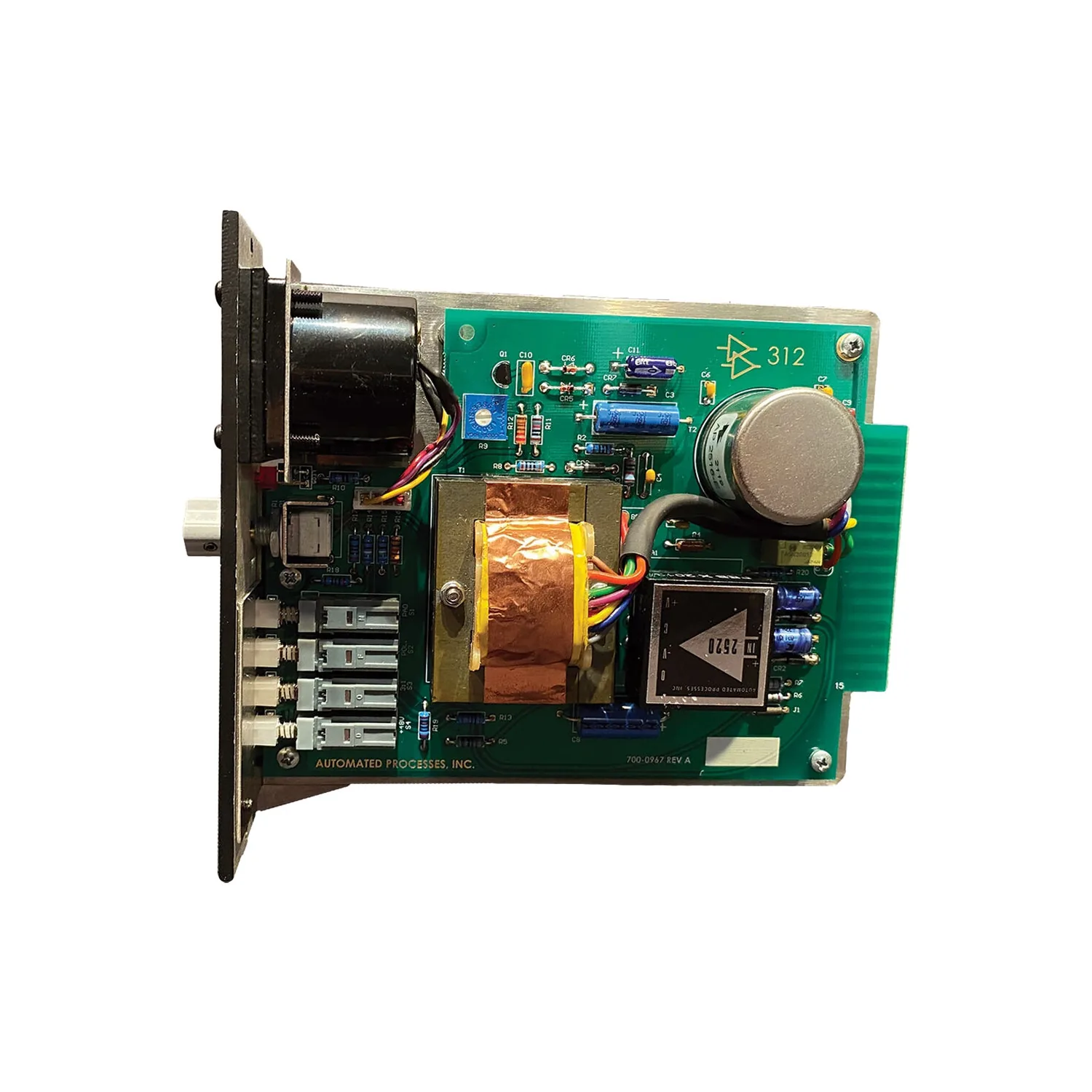

Faithfully recreating one of the most sought-after API Audio mic preamps, the 312 is a 500-series mic preamp module sporting 69 dB of warm, vintage-style gain. Loaded with API’s proprietary 2520 op-amp, AP2516 input transformer, and discrete circuitry all around, this legendary mic pre provides massive headroom and a smooth sound for a diversity of studio applications. The 312 sports a -20 dB pad switch for handling excessively loud inputs. Input monitoring is enabled via the illuminated VU meter (0 VU = +4 dBu) and a red peak LED indicator. By hitting the 3:1 output transformer tap selector button, the preamp reduces the output gain ratio from 1:3 to 1:1, which equates to approximately 10 dB. The mic pre also features selectable 48V phantom power and a polarity inversion switch. The onboard gain control provides adjustment from +34 to +69 dB (without the pad engaged).

Bajo Pedido - Disponible para reserva

Valor por transferencia (Precio en Rojo) - Débito/Crédito (6 cuotas s/interés): Precio tachado

6 Cuotas fijas de $504.804

3 Cuotas fijas de $922.161

Abonando en efectivo en nuestras oficinas te queda en $2.241.799 o USD1.507.

SKU: BHAP312 Categorías: All Analog Studio Hardware, Micrófonos, Microphone Preamps, Pro Audio, Studio Recording Etiquetas: -20 dB Pad Switch, 69 dB of Gain, AP2516 Input Transformer, API AUDIO, Classic 312 Mic Pre in 500-Series Module, Discrete Circuitry with 2520 Op-Amp

Descripción

The Rock Store te trae API AUDIO 312 500-Series Microphone Preamp Module

Sus características técnicas principales son:

Faithfully recreating one of the most sought-after API Audio mic preamps, the 312 is a 500-series mic preamp module sporting 69 dB of warm, vintage-style gain. Loaded with API’s proprietary 2520 op-amp, AP2516 input transformer, and discrete circuitry all around, this legendary mic pre provides massive headroom and a smooth sound for a diversity of studio applications.

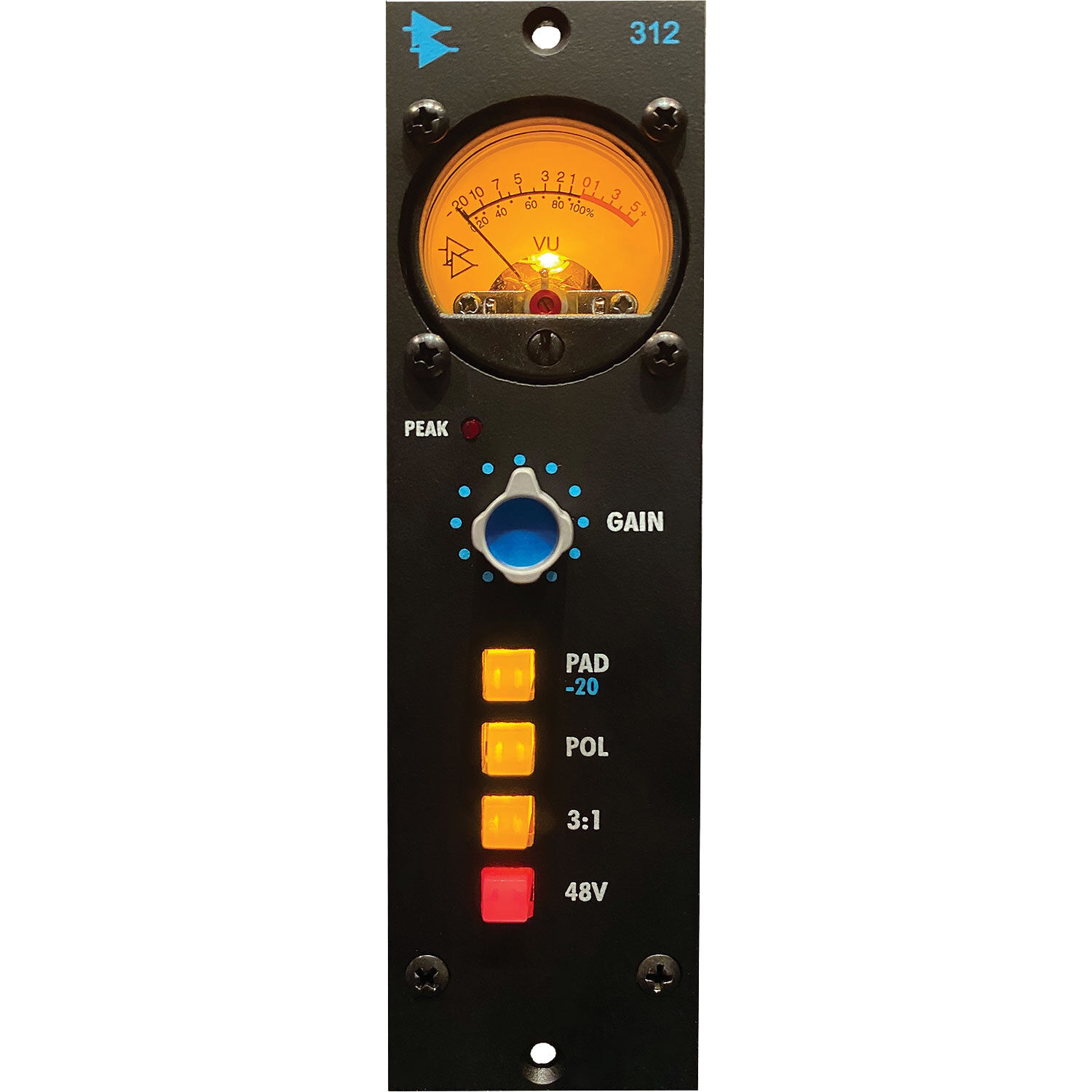

The 312 sports a -20 dB pad switch for handling excessively loud inputs. Input monitoring is enabled via the illuminated VU meter (0 VU = +4 dBu) and a red peak LED indicator. By hitting the 3:1 output transformer tap selector button, the preamp reduces the output gain ratio from 1:3 to 1:1, which equates to approximately 10 dB. The mic pre also features selectable 48V phantom power and a polarity inversion switch. The onboard gain control provides adjustment from +34 to +69 dB (without the pad engaged).

Legendary Pedigree

The 312 is one of API’s most sought-after and famous mic preamps. First introduced in the 1970s, it is well known and respected throughout the recording industry, and is the building block of the modern 3124 rack unit.

Based on API cofounder Saul Walker’s original designs, the API 312 Mic Pre combines API’s 2520 op-amps and proprietary transformers. It delivers the analog warmth, massive headroom, and unmistakable sound for which API is known, in a convenient 500-series format.

Aviso: Las especificaciones y disponibilidad pueden cambiar sin previo aviso.

Información adicional

Peso	1,3804 kg
Dimensiones	17,14 × 13,34 × 3,8 cm
Ganar control	+34 to +69 dB (+14 to +49 dB with Pad)
Nivel máximo de entrada	-4 dBu (+16 dBu with Pad)
Nivel máximo de salida	+31 dBu
Impedancia de salida	<70 Ohms (Transformer Balanced)
Respuesta de frecuencia	20 Hz to 40 kHz (±0.5 dB)
Relación señal-ruido	120 dB
Fuente de energía	Proprietary Interface
Alimentación de entrada CC	16 VDC
Corriente de funcionamiento	55 mA
Montaje	Front: 2x 500-Series Rack Screw
Color	Negro
Material de construcción	Metal
Dimensiones	6.75 x 5.25 x 1.5″ / 17.14 x 13.34 x 3.8 cm
Peso	1.5 lb / 0.7 kg
