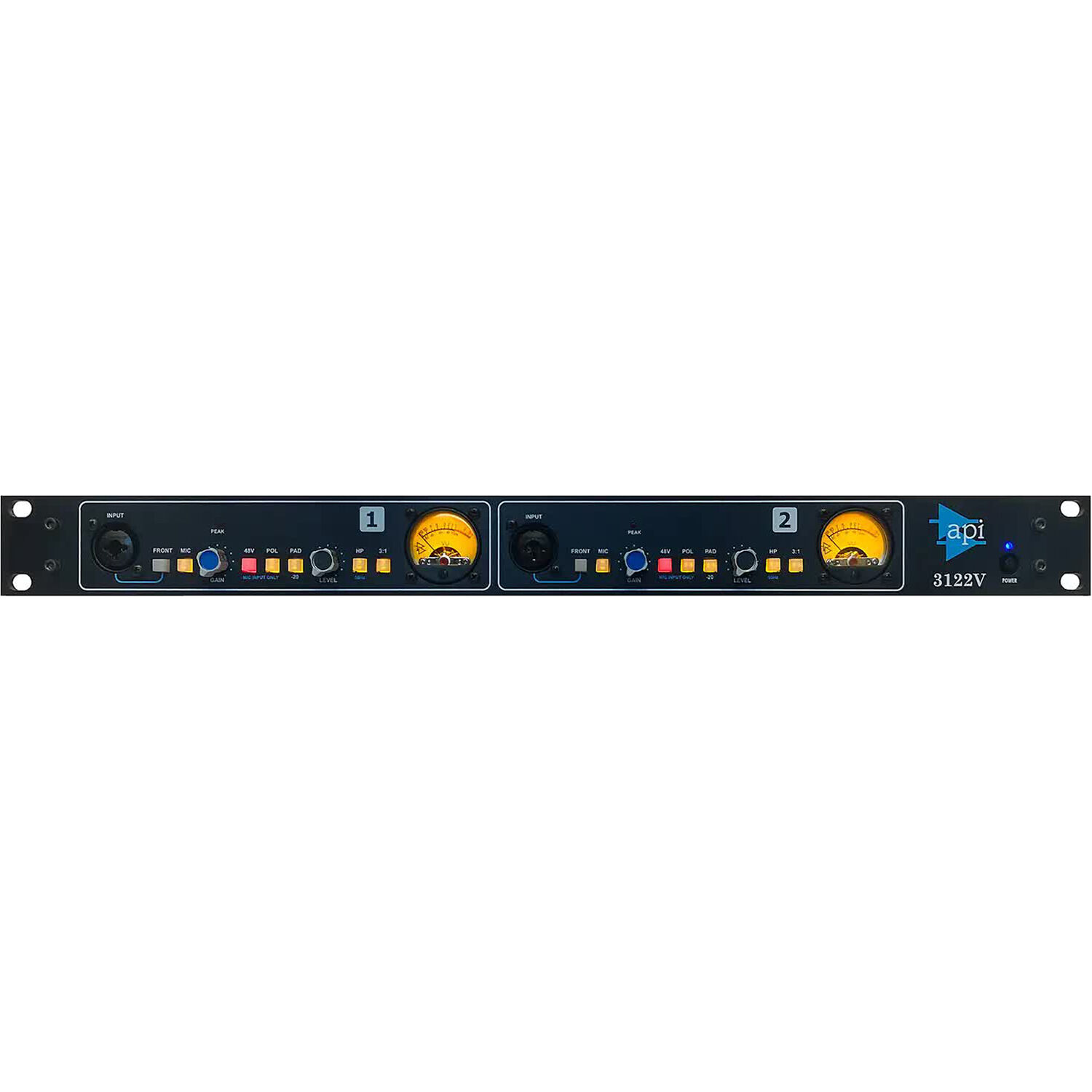

API AUDIO 3122V 2-Channel Microphone Preamp Module

Descripción

The Rock Store te trae API AUDIO 3122V 2-Channel Microphone Preamp Module

Sus características técnicas principales son:

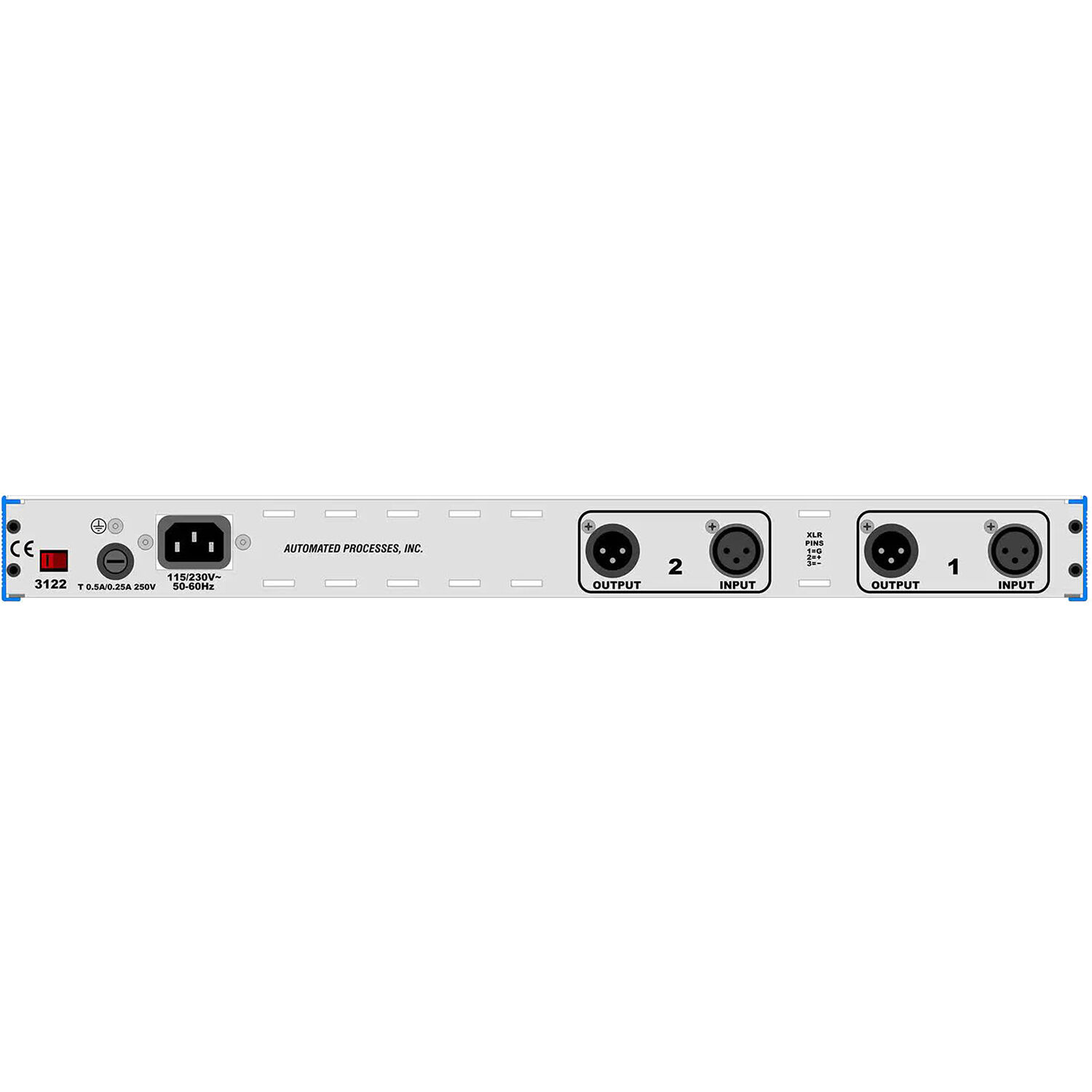

Sporting the same legendary circuitry as the 3124V and 3124MV, the API Audio 3122V is a rackmounted 2-channel mic preamp with variable output control and up to 68 dB of noise-free gain. Sporting both front-panel XLR-1/4″ combo input jacks and rear-panel XLR mic inputs, you can flip between these two sets of inputs to handle any mic, line, or Hi-Z instrument signals.

Along with the input selection, front-panel controls include a fixed-frequency 50 Hz high-pass filter for eliminating unwanted rumble, selectable 48V phantom power per input, a polarity flip switch, and a -20 dB pad for excessively hot input signals. You also get a 3:1 output transformer tap selection, which reduces the output gain ratio from 1:3 to 1:1 (equal to approximately 10 dB). Two XLR line outputs are provided on the rear panel. The unit sports two clear, illuminated, vintage-style VU meters for keeping an eye on levels. The preamp also features a peak LED indicator. With 2520 op-amp circuitry and a custom output transformer, the 3122V delivers all the clarity, reliability, and classic API sound expected of a true API mic preamp.

Familiar Warmth

The 3122V provides two channels of API’s signature analog sound and features the same legendary circuit design found in the 3124V and 3124MV, as well as the 312, 512V, and 512c mic preamps. The familiar combination of 2520 op-amps and proprietary output transformers give this API mic preamp that punch and massive headroom for which API mic pres are known.

Aviso: Las especificaciones y disponibilidad pueden cambiar sin previo aviso.
