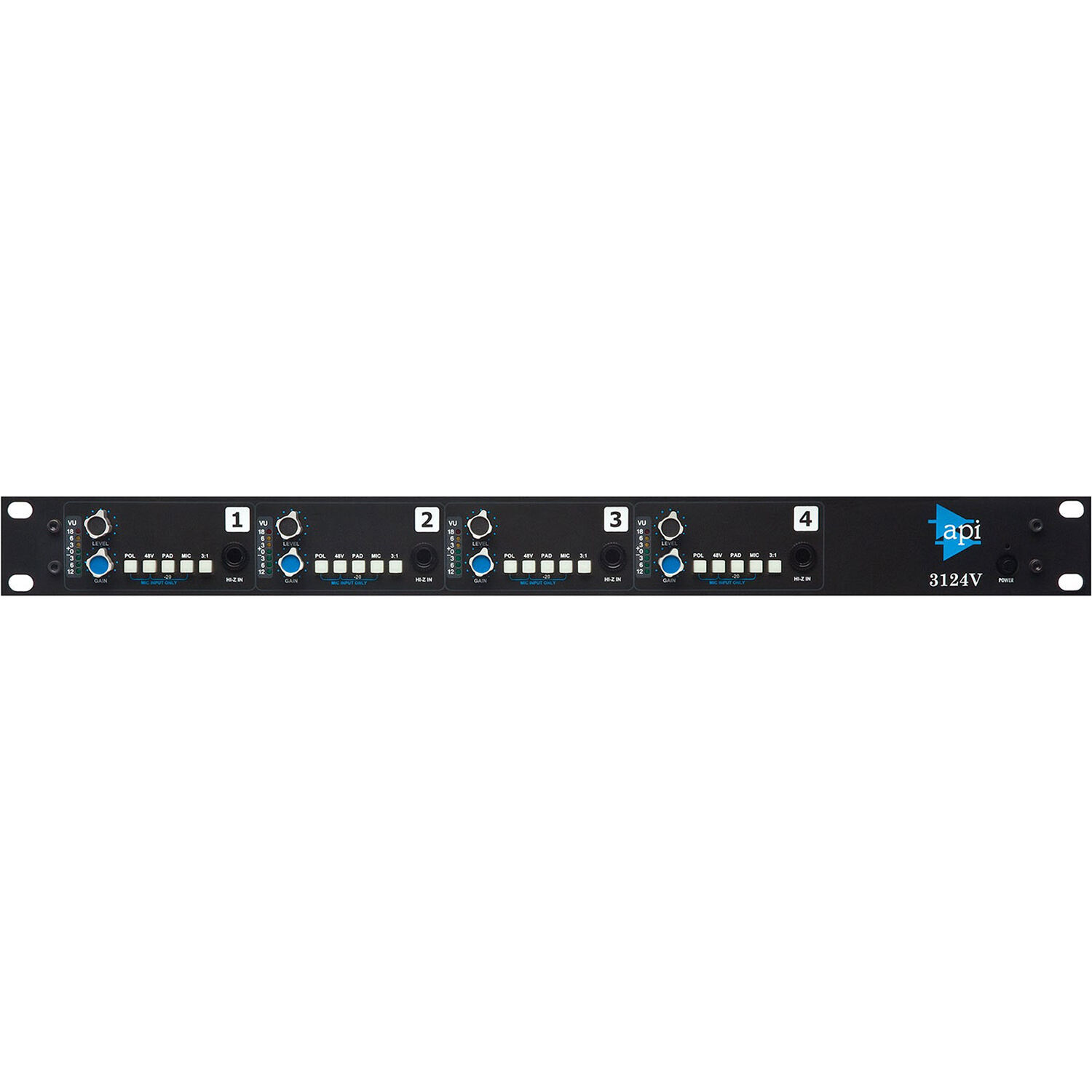

API AUDIO 3124V 4-Channel Microphone Preamp

El precio original era: $11.855.399.El precio actual es: $9.938.999.

4 Channels of Classic API Mic Pre
Up to 65 dB of Clean Gain
Variable Output Level Control
Gain

Ideal as a front-end mic pre in studios and mobile recording setups, the API Audio 3124V is a 4-channel mic pre with variable output control. Offering up to 65 dB of clean mic gain, front-panel Hi-Z inputs, and LED VU meters on each channel, the 3124V is an optimal start for any signal. The 3124MV features pristine API circuitry, including the AP2516 input transformer, 2520 op-amps, and a custom output transformer. Each input channel sports level and gain controls, as well as buttons for polarity inversion, 48V phantom power, a -20 dB pad, mic/line input selection, and the 3:1 transformer tap function, which reduces the gain ratio from 1:3 to 1:1. Rear-panel connections include balanced XLR inputs and outputs per channel. Finally, the unit sports a universal internal power supply with manual switching, supporting international power standards.

Bajo Pedido - Disponible para reserva - Llega en aproximadamente 15 a 20 días hábiles

Valor por transferencia (Precio en Rojo) - Débito/Crédito (6 cuotas s/interés): Precio tachado

6 Cuotas fijas de $2.103.755

3 Cuotas fijas de $3.843.080

Abonando en efectivo en nuestras oficinas te queda en $9.342.599 o USD6.281.

SKU: BHAP3124V Categorías: All Analog Studio Hardware, Micrófonos, Microphone Preamps, Pro Audio, Studio Recording Etiquetas: 4 Channels of Classic API Mic Pre, API AUDIO, Gain, Pan, Up to 65 dB of Clean Gain, Variable Output Level Control

Descripción

The Rock Store te trae API AUDIO 3124V 4-Channel Microphone Preamp

Sus características técnicas principales son:

Ideal as a front-end mic pre in studios and mobile recording setups, the API Audio 3124V is a 4-channel mic pre with variable output control. Offering up to 65 dB of clean mic gain, front-panel Hi-Z inputs, and LED VU meters on each channel, the 3124V is an optimal start for any signal.

The 3124MV features pristine API circuitry, including the AP2516 input transformer, 2520 op-amps, and a custom output transformer. Each input channel sports level and gain controls, as well as buttons for polarity inversion, 48V phantom power, a -20 dB pad, mic/line input selection, and the 3:1 transformer tap function, which reduces the gain ratio from 1:3 to 1:1. Rear-panel connections include balanced XLR inputs and outputs per channel. Finally, the unit sports a universal internal power supply with manual switching, supporting international power standards.

Classic API Mic Pres

Like the API 3124+, the 3124V is a high-quality, compact, 4-channel mic preamp. It is equipped with the AP2516 input transformer and the proprietary output transformer found in all API mic pres and throughout the API product line.

Plenty of Headroom

The 3124V provides up to 65 dB of gain. The Hi-Z front panel input goes directly to the op-amp, allowing a low-level input such as a guitar or bass to be amplified without a matching transformer or direct box. This Hi-Z input can accept input levels as high as +20 dBu, making it perfect for keyboards and other high-level devices.

Aviso: Las especificaciones y disponibilidad pueden cambiar sin previo aviso.

Información adicional

Peso	6,5159 kg
Dimensiones	58,42 × 40,64 × 16,51 cm
Peso	10.38 lb / 4.71 kg
Consumo de energía	19.2 W
Color	Negro
Impedancia de entrada	Mic: 1.5 Kilohms>br> Hi-Z: 470 Kilohms
Respuesta de frecuencia	10 Hz to 20 kHz
A	-129 dB
Ruido	-91 dBm

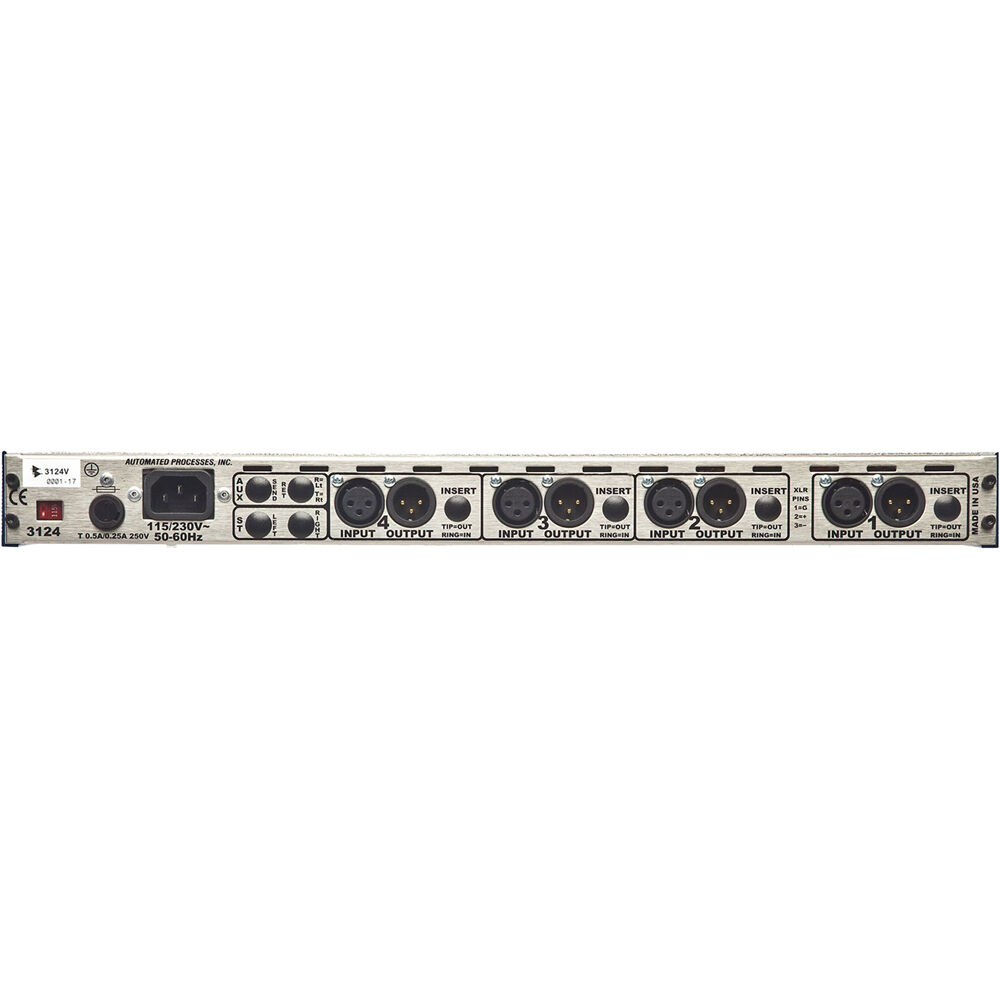

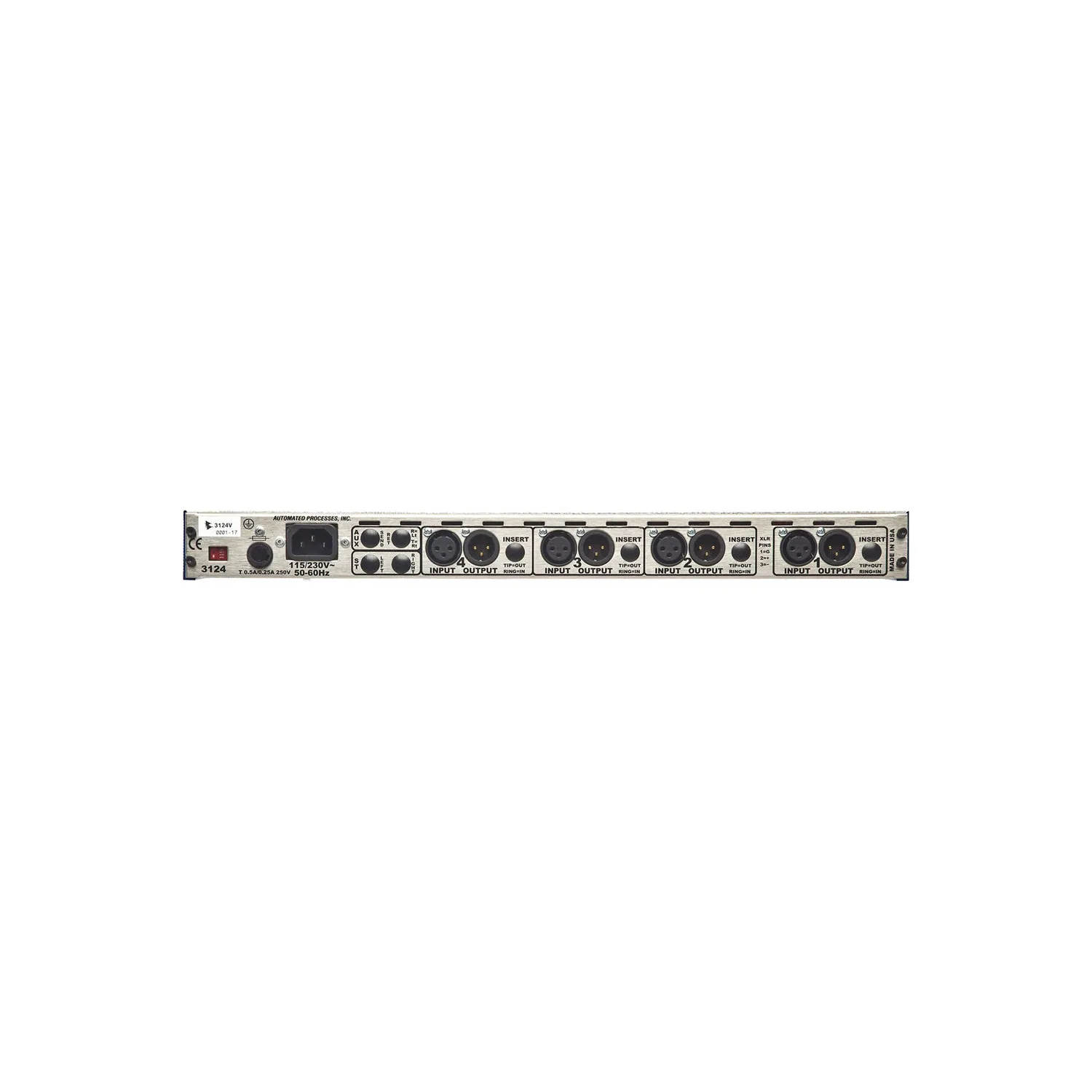

E/S de audio	4x XLR 3-Pin Mic Input 4x 1/4″ TS Hi-Z/Instrument Input 4x XLR 3-Pin Line Output (Transformer Balanced)
Fuente de energía	AC Input
Potencia	115 W
Impedancia de salida	<75 Ohms
THD	0.09% (Max)
Montaje	Front: 4x Standard Rack Screw
Material de construcción	Metal
Dimensiones	19 x 11 x 1.75″ / 48.3 x 27.9 x 4.45 cm
