ARRI ARRIMAX 18/12 HMI Kit with Ballast

El precio original era: $203.032.299.El precio actual es: $170.212.699.

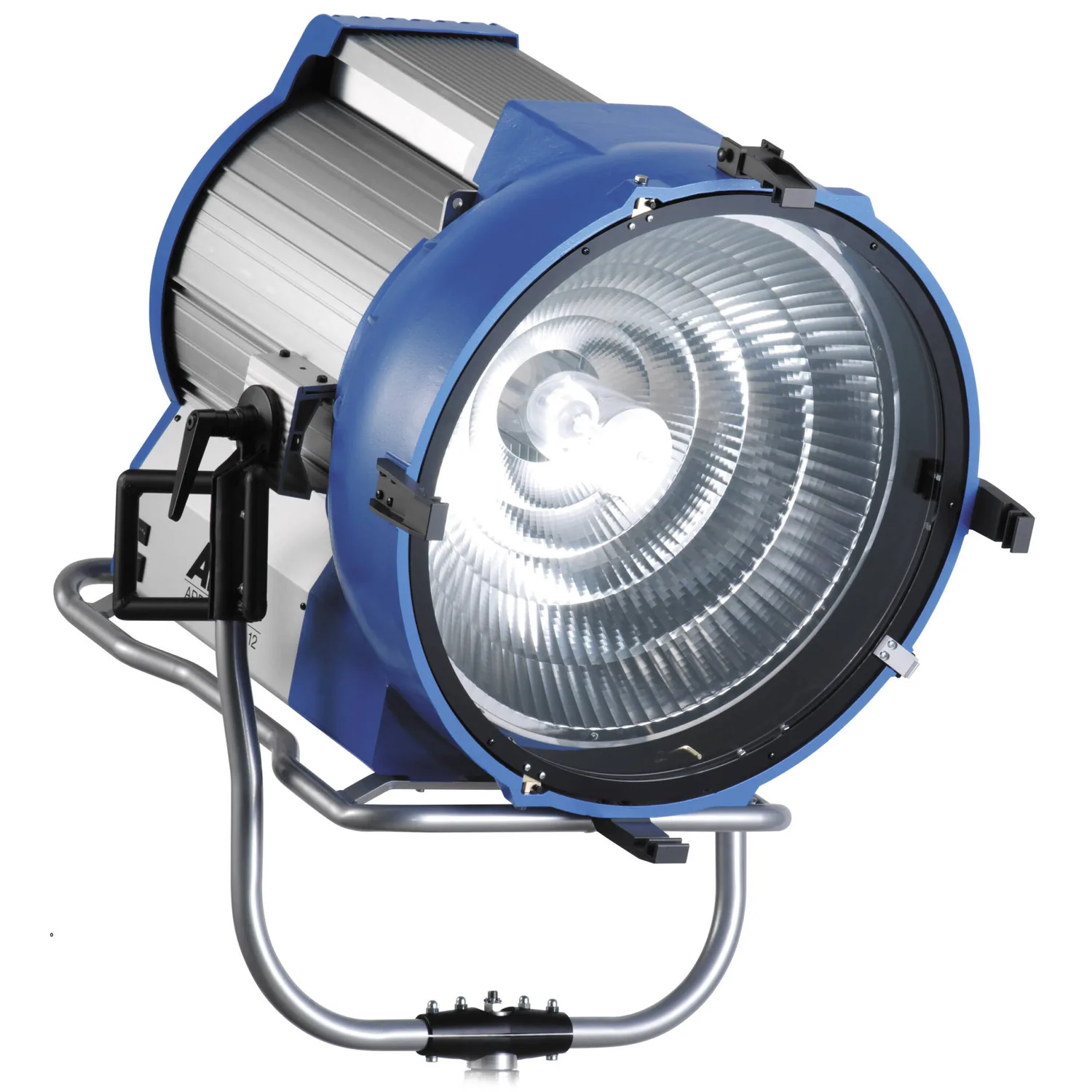

ARRIMAX 8/12kW HMI PAR Lamp Head

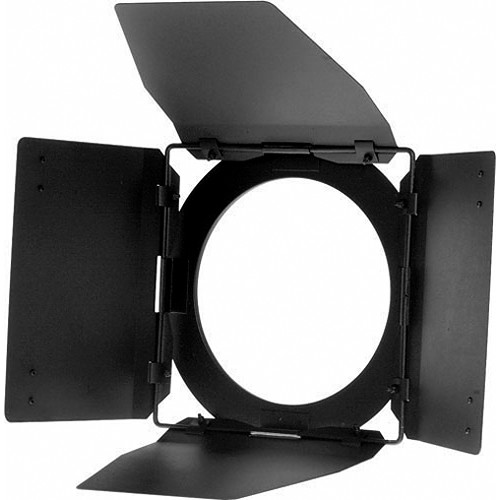

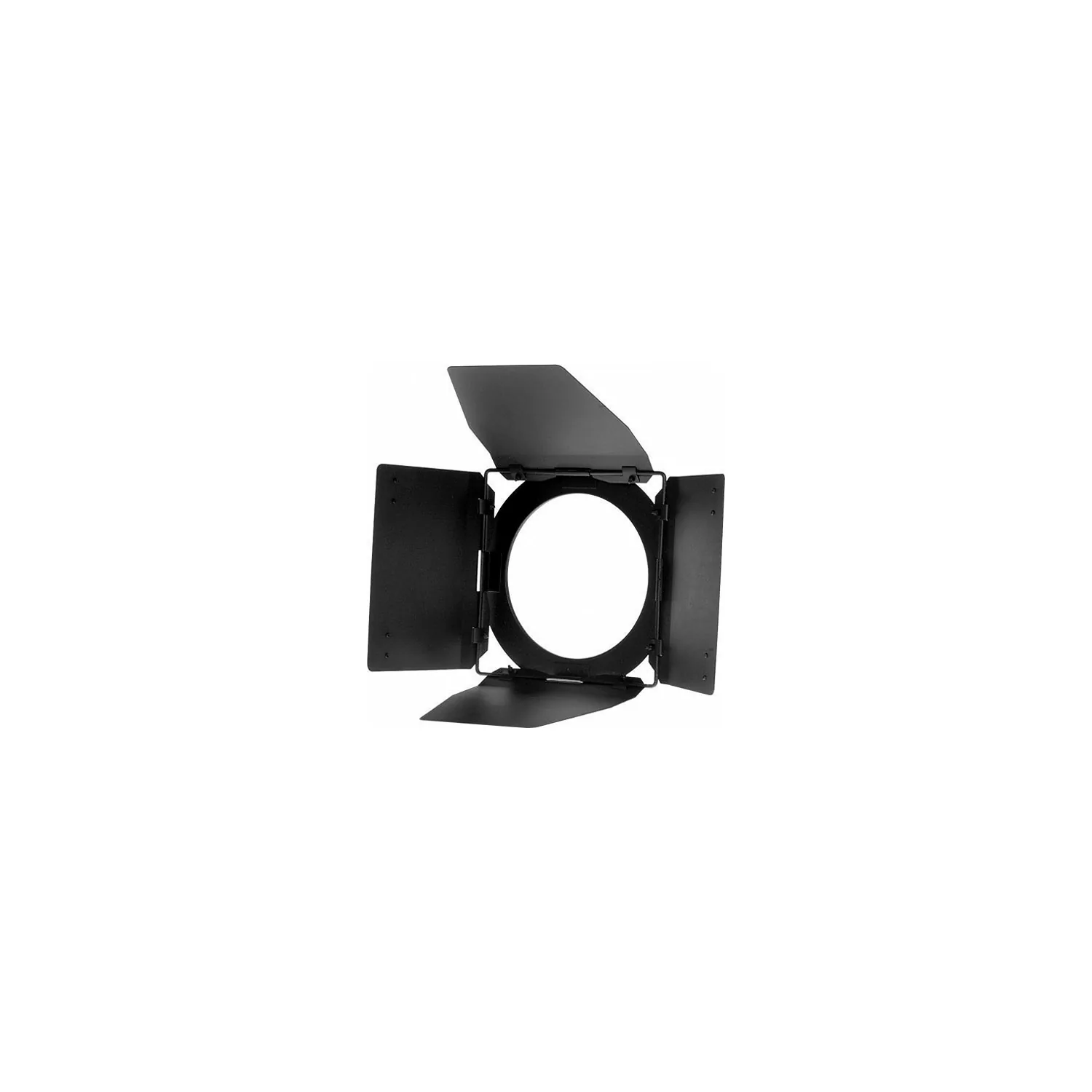

4-Way Barndoors

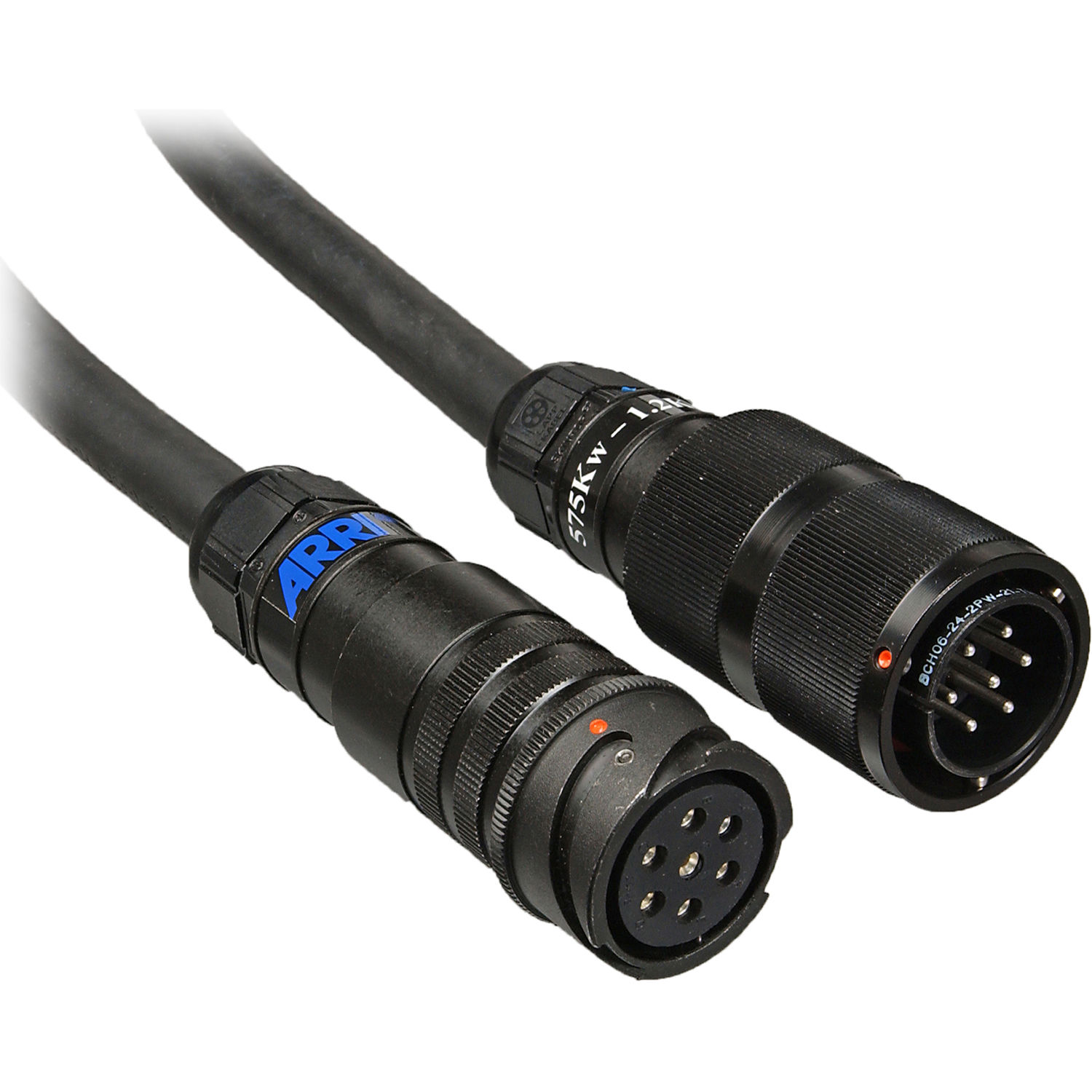

50′ Head Cable

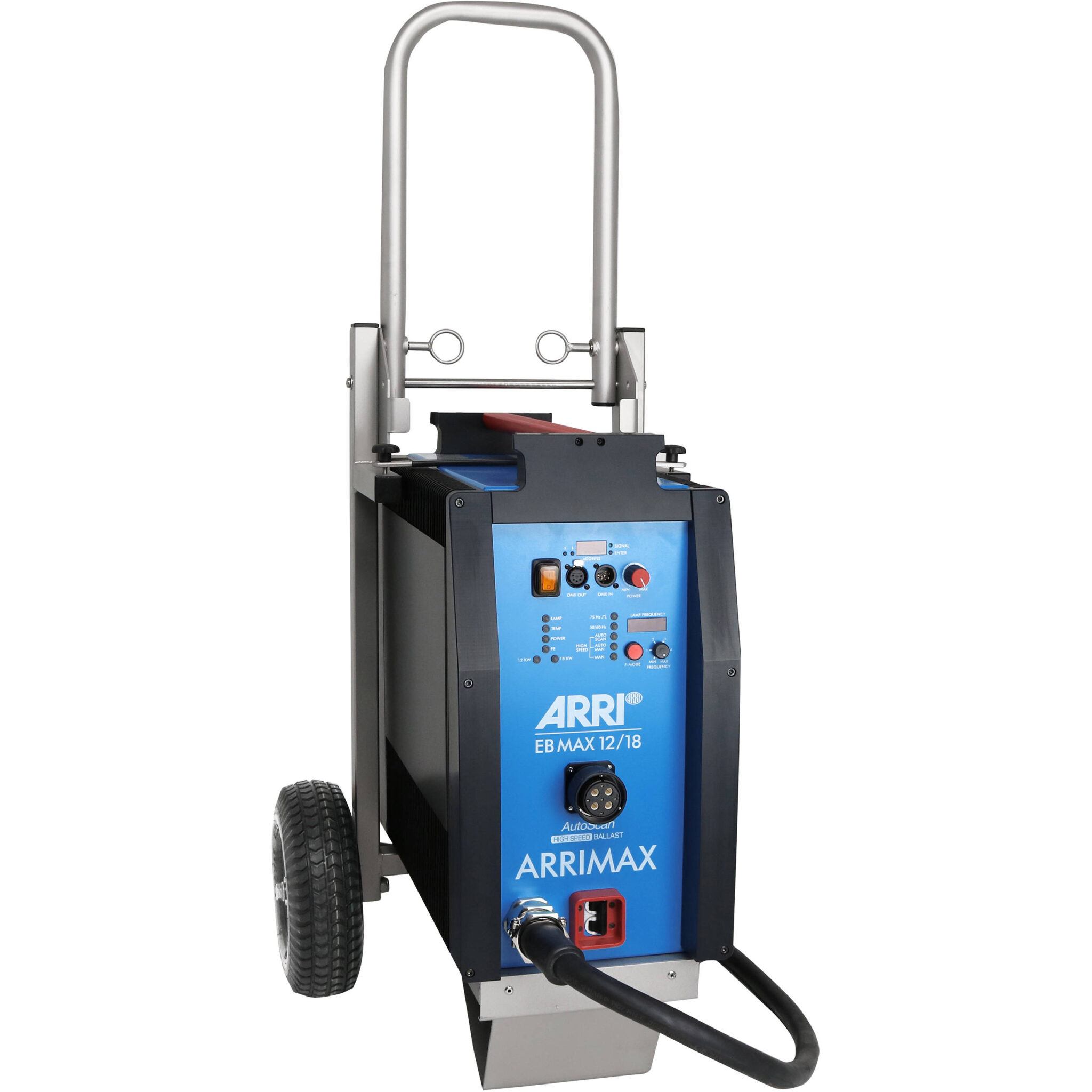

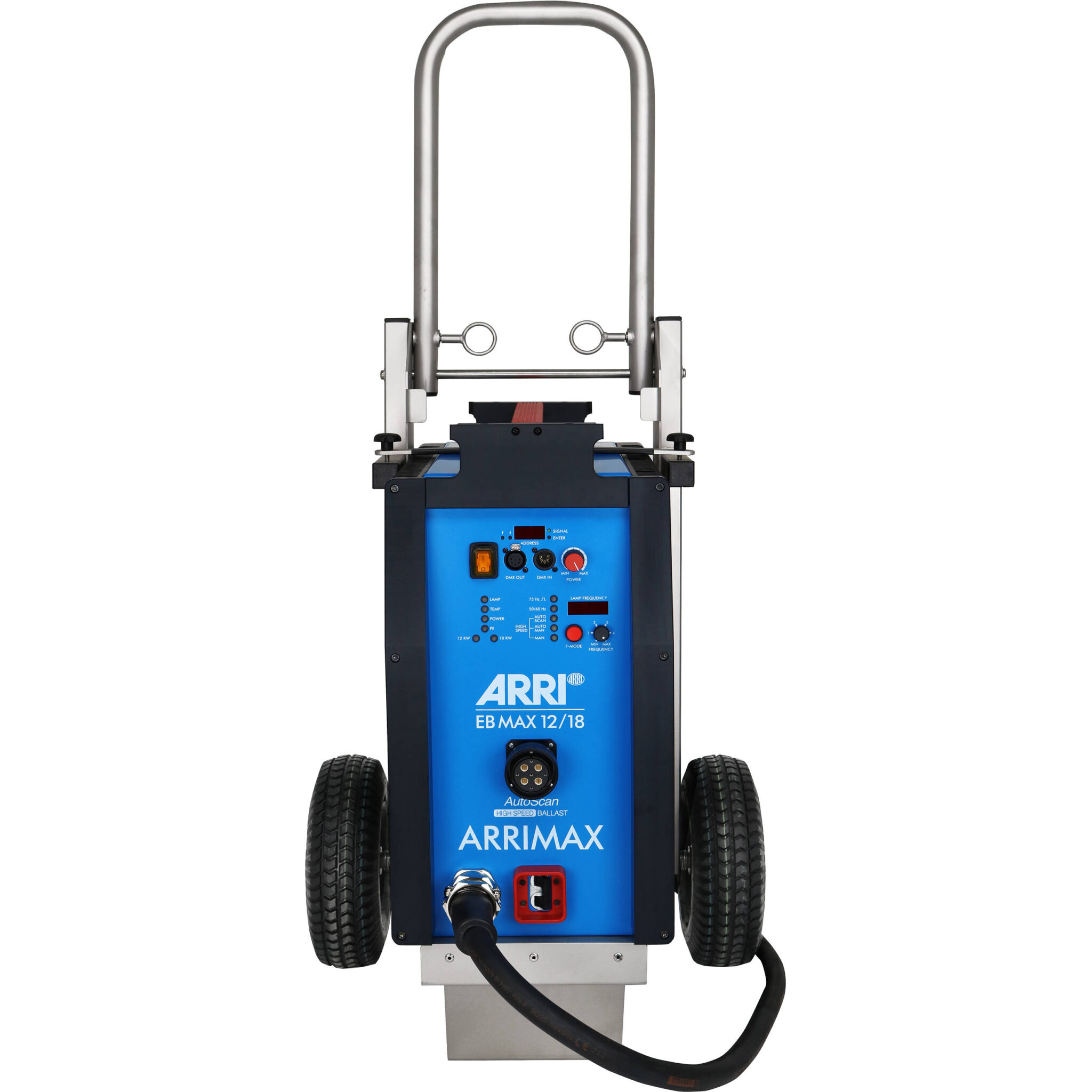

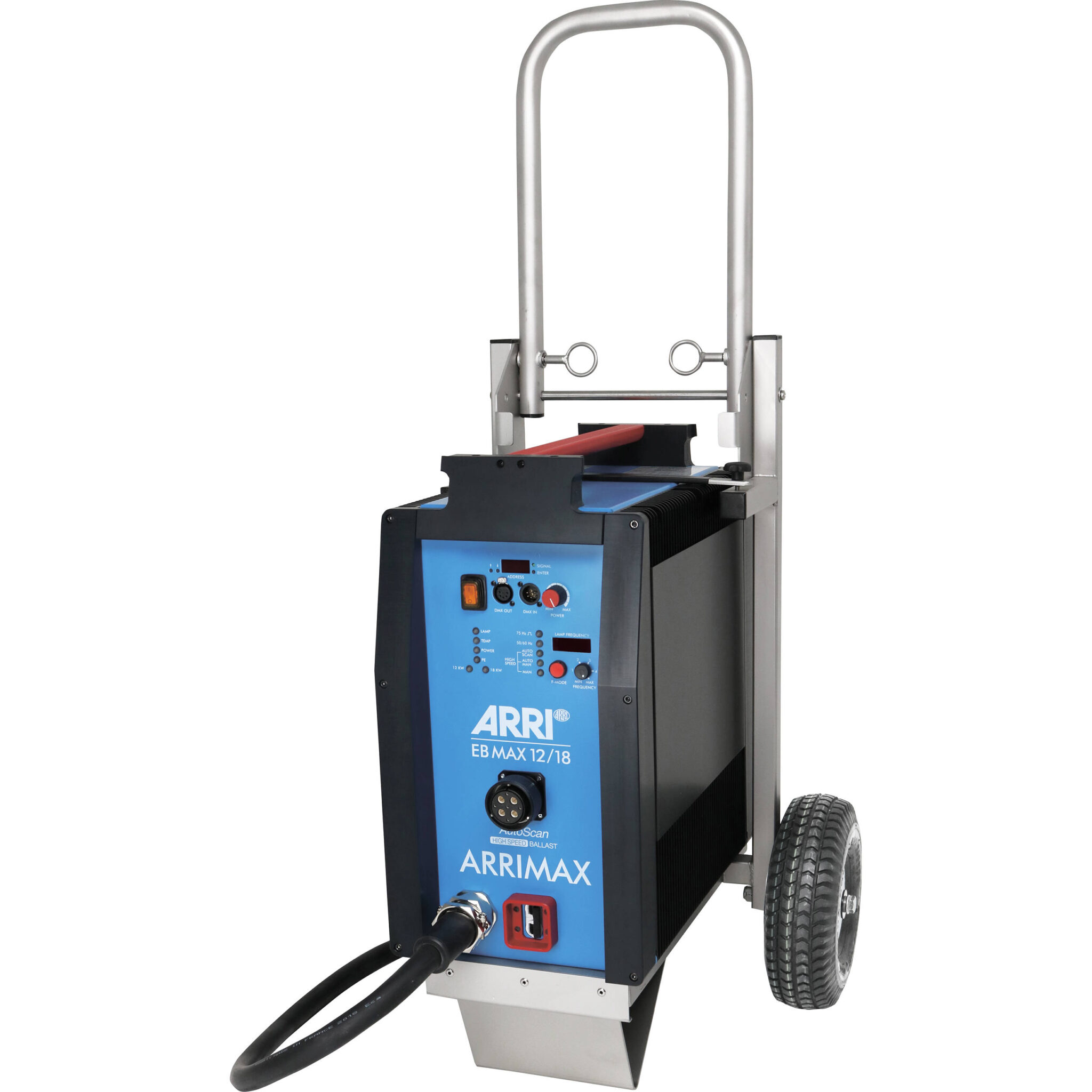

EB MAX 12/18 Ballast

The design of the Arrimax 18/12Kw HMI PAR fixture provides an optimum choice for productions requiring maximum light output. Combining the variable beam spread of a Fresnel and the light output of a PAR, the Arrimax uses a unique reflector concept for beam control which eliminates the need for spread lenses. The optical system with its 580mm (22.8″) diameter specular, flatted reflector is adjustable and provides continuous focus from 15 – 50°. Because the Arrimax does not require a set of spread lenses, the shadow quality is sharper and easily cut. Although exact specifications are not available, this fixture will provide well over 3,000 footcandles from a distance of 100′, when fitted with a 12,000 watt HMI lamp.

Venta especial - Consutlar

Valor por transferencia (Precio en Rojo) - Débito/Crédito (6 cuotas s/interés): Precio tachado

6 Cuotas fijas de $36.028.355

3 Cuotas fijas de $65.815.577

Abonando en efectivo en nuestras oficinas te queda en $159.999.999 o USD107.558.

SKU: BHARA1812ADK Categorías: Iluminación y estudio, Luces HMI Etiquetas: 190 to 250 VAC, 4-Way Barndoors, 50' Head Cable, ARRI, ARRIMAX 8/12kW HMI PAR Lamp Head, EB MAX 12/18 Ballast, Hmi Lights, Lighting & Studio

Descripción

The Rock Store te trae ARRI ARRIMAX 18/12 HMI Kit with Ballast

Sus características técnicas principales son:

The optical system with its 580mm (22.8″) diameter specular, flatted reflector is adjustable and provides continuous focus from 15 – 50°. Because the Arrimax does not require a set of spread lenses, the shadow quality is sharper and easily cut.

Although exact specifications are not available, this fixture will provide well over 3,000 footcandles from a distance of 100′, when fitted with a 12,000 watt HMI lamp.

Efficient

50% brighter than a 12kW PAR.

Optional Light Shapers

Optional accessories are barndoors, 29″ diameter scrims and a motorized stirrup.

Hanging or Stand Mount

Aluminum yoke mounts to a Junior (1-1/8″) socket.

Sturdy, Sure Lamp Mount

A sturdy, locking GX51 lamp base alleviates mechanical stress from the lamp pins. GX38 lamp bases may also be used.

Optional Electronic Ballast

A flicker-free 12-18kW electronic, dimming ballast is available separately.

Extra Touches

Illuminated On/Off Switch, hour use counter.

Safety

Interlock micro-switch on front door for safely disconnecting all power-load connections.
Protective class I, protective rate IP 23.
Arri eXtreme cooling system

Cable Loss Compensation prevents power loss in head-to-ballast cables up to 300′ long
Active Line Filter (ALF) increases power efficiency
DMX 512 for precision remote control
Low-noise switch

Compatibility

M-Series ARRIMAX 12/18
ARRI Daylight 18/12
ARRI Compact 12,000
ARRISUN 120

Incluido con tu compra:

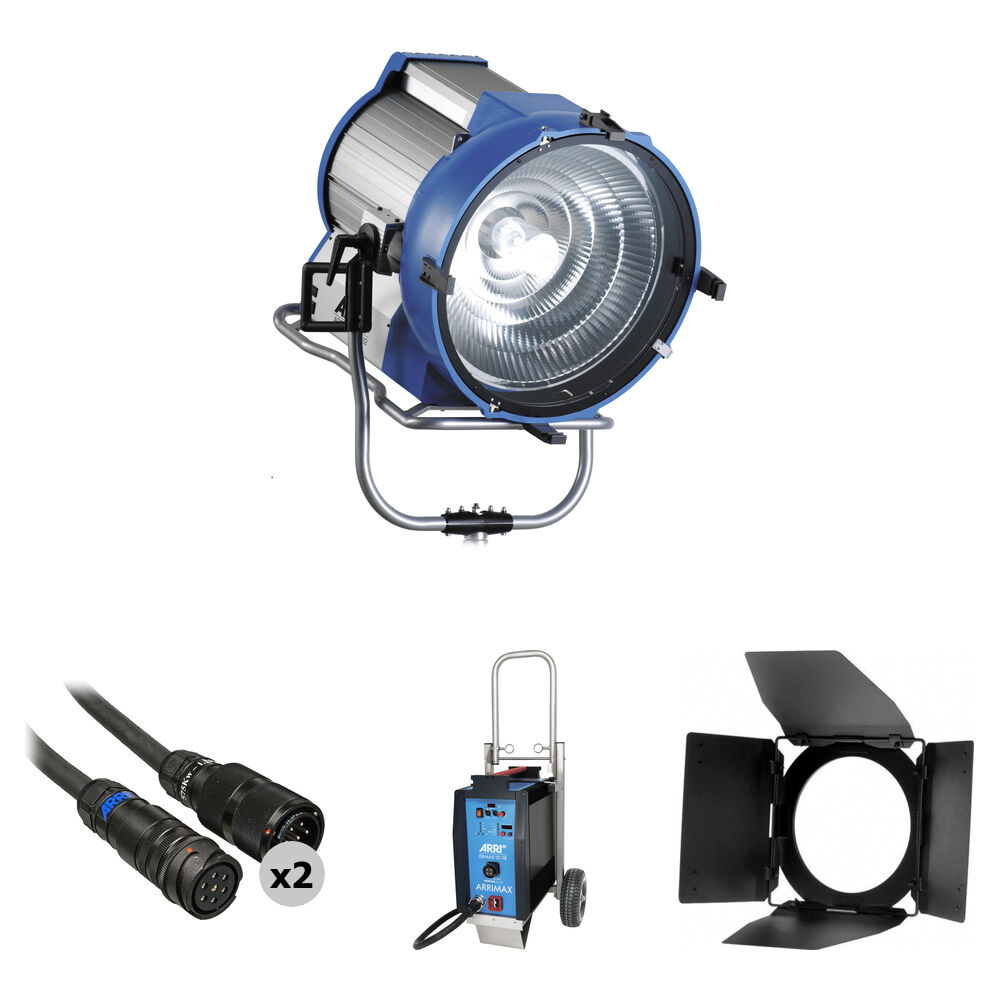

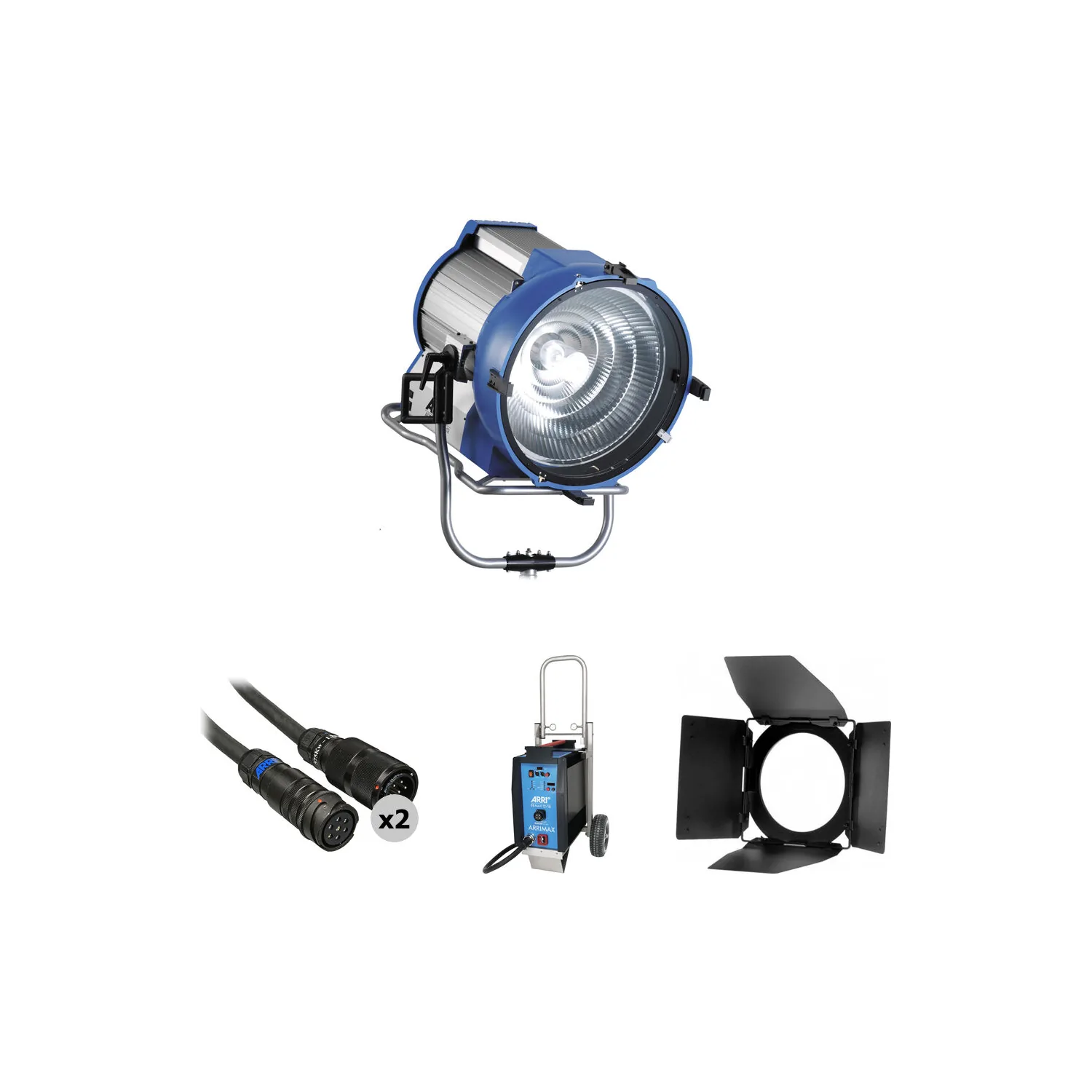

ARRI Arrimax 18/12Kw HMI PAR (220 VAC) | 2 x ARRI Head to Ballast Cable for ARRI 18/12Kw HMI Fresnel and ARRIMAX 18/12kW PAR – 50′ | ARRI EB MAX 12/18 Ballast | ARRI 4 Leaf Barndoor Set for Arri T24

Aviso: Las especificaciones y disponibilidad pueden cambiar sin previo aviso.

Información adicional

Peso	10,8862 kg
Dimensiones	86,36 × 78,74 × 7,62 cm
Item Type	1x HMI PAR Light
Included Storage Case	No
Socket Type	1x GX38/GX51
Included Lamps	No
Supported Wattage	12,000 to 18,000 W
Photometrics at 3.3' / 1 m	18,000 W at 50°: – 92,435 fc / 995,000 Lux 18,000 W at 15°: – 864,899 fc / 9,310,000 Lux
Dimming	Controller Not Included
Front Accessory Mount	29″
Power Source	AC Power (Cable Not Included) *Requires Power Supply/Controller (Not Included)
Power Consumption	18000 W (Maximum)
Fixture Mounting	1x 1-1/8″ Stud
Photometrics	18,000 W at 50°: – 92,435 fc / 995,000 Lux at 3.3′ / 1 m* – 529 fc / 5700 Lux at 49.2′ / 15 m – 298 fc / 3210 Lux at 65.6′ / 20 m 18,000 W at 15°: – 864,899 fc / 9,310,000 Lux at 3.3′ / 1 m* – 51,373 fc / 553,000 Lux at 49.2′ / 15 m – 2889 fc / 31,100 Lux at 65.6′ / 20 m – *Standardized Measurement Calculated Internally Based on Closest Distance (Using Light at This Distance Is Not Advisable)
Inputs/Outputs	1x Built-In Cable with Unspecified AC Power Input
Yoke Type	Manually-Operated Yoke
Environmental Resistance	Dust/Water-Resistant (IP23)
Operating Conditions	Up to 113°F / 45°C
Certifications	– CB – , CE – , ENEC – , UKCA – , cNRTLus
Materials	Metal
Dimensions	33.5 x 31.8 x 30.7″ / 85.2 x 81 x 78 cm
Weight	152.56 lb / 69.2 kg
Compatibility	– Arri – M-Series Arrimax 12000/18000 W
Package Weight	24 lb
Box Dimensions (LxWxH)	34 x 31 x 3″
Connector 1	1x Proprietary Female
Connector 2	1x Proprietary Male
Color	Black
Cable Length	50′ / 15.2 m
Lamp Power	1200 / 1800 W
Input Voltage	190 – 250 VAC, 50/60 Hz 1, N, PE (Single Phase) Line Power: 19,600 VA Max. Power Factor: cos Ф ≈ 0.99 due to Active Line Filter (ALF)
Current	Nominal Current: 68-51 A / 103-78 A Square Wave, 75 Hz (Standard Mode) 300 Hz: Adjustable 270-360 Hz and 1000 Hz: Adjustable 900 – 1200 Hz
Plug	US / North America Lamp Head Connector: Veam
Operating Temperature	-4 – 113°F / -20 – +45 °C
Efficiency	Min. 0.93
DMX	Connector: 5-Pin XLR In/Out 512 In/Out, 3 Channels On/Off, Dimming Mode Selection: Low Noise, Standard, AutoScan, AutoMan, Manual Frequency Setting in High Speed
Indicators	Display for DMX Channel and Lamp Frequency Successful Ignition with LED LAMP (Yellow) Overtemperature with LED TEMP (Red) Line Power with LED POWER (Green) Protective Earth with LED PE (Green) Lamp type with LED (12 kW Green, 18 kW yellow)
IP Rating	Protection Class I, IP20
Light Compatibility	– 29″ Diameter Mount: For ARRI ARRIMAX 18/12 – / ARRI Daylight 18/12 – / ARRI STUDIO T24
