Blackmagic Design 2110 IP UpDownCross 12G

Descripción

The Rock Store te trae Blackmagic Design 2110 IP UpDownCross 12G

Sus características técnicas principales son:

Professional Standards Converter
Can convert between all devices with SMPTE-2110 IP video, 12G-SDI and HDMI video connections
Conversions between all SD, HD or Ultra HD video standards, as well as from a reference input for integrated re-synchronisation
Computer interface: USB-C for webcam output, updates and configuration
Local audio monitoring: Speakers on the front panel with on/off button and 1 x 6.35 mm headphone jack

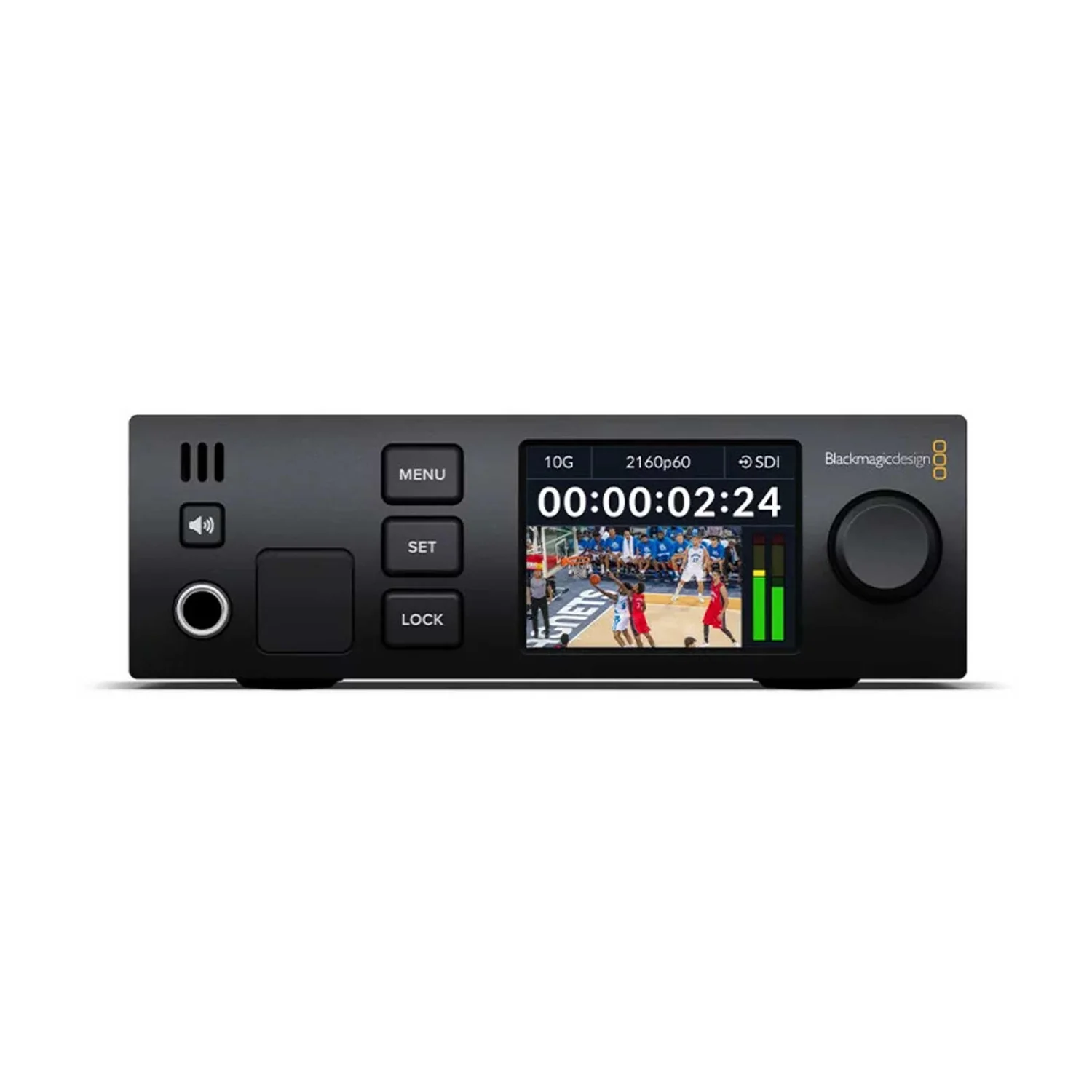

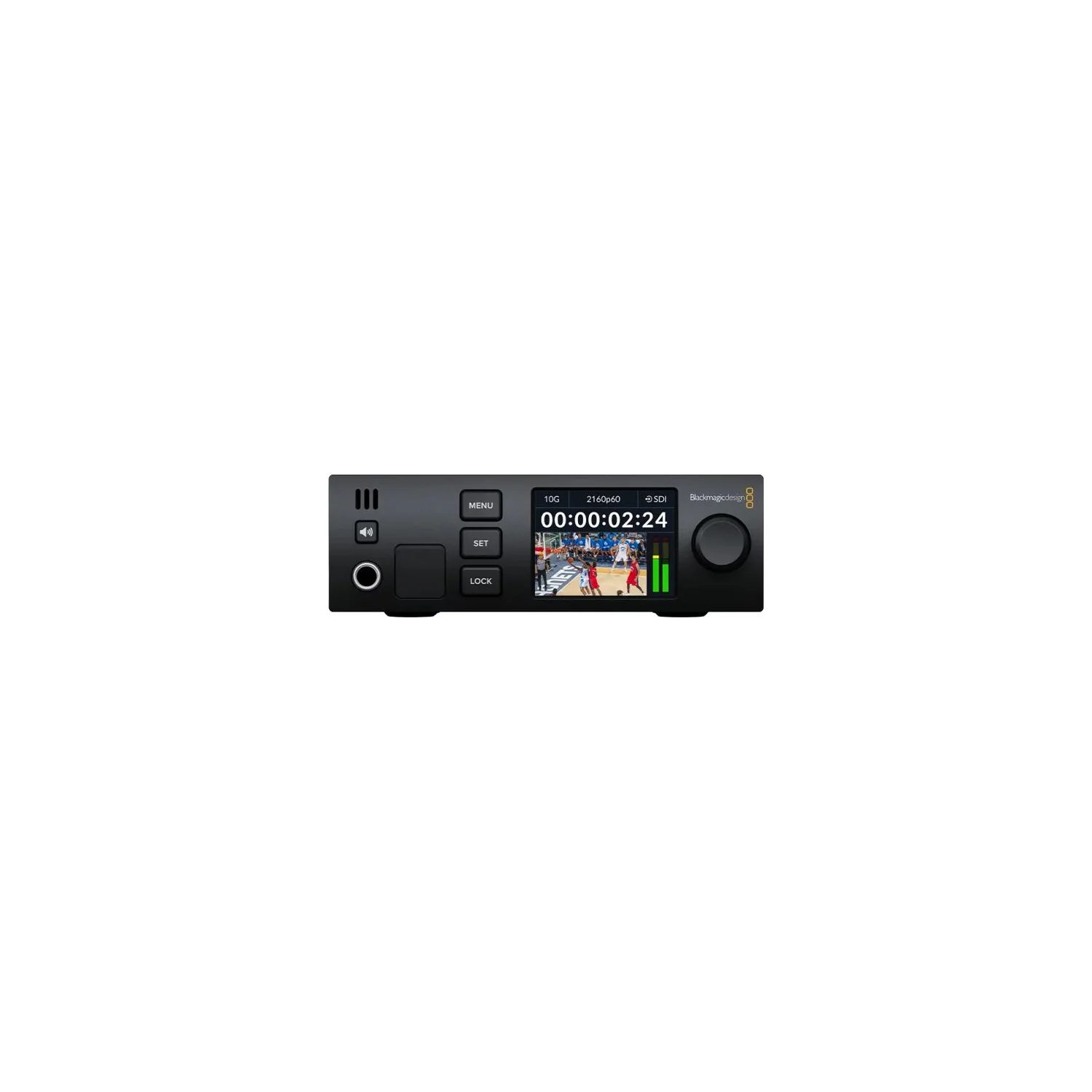

Screens: Integrated 2.2-inch LCD for monitoring video, audio and status, as well as for menu settings
Compatible operating systems: Mac 13.0 Ventura
Mac 14.0 Sonoma or higher / Windows 10 and 11
Power supply: 1 integrated AC power supply for 100–240 V, 50/60 Hz
Power connections: 1 IEC-C14 connection (mains cable not included)
1 x 12V DC connection (power supply not included)
Power consumption: max. 30 W
Dimensions: 140 x 46.3 x 227 mm
Weight: 1 kg

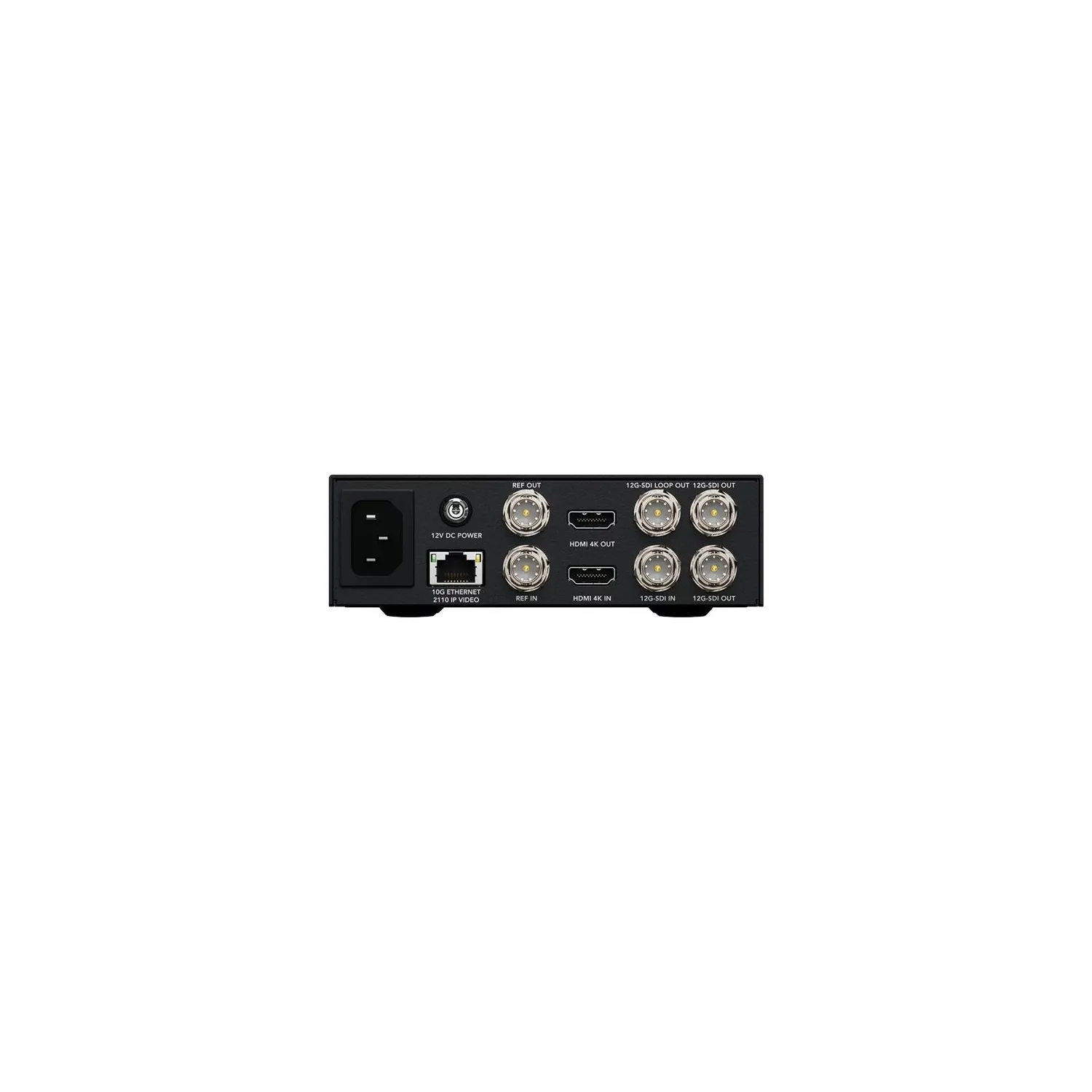

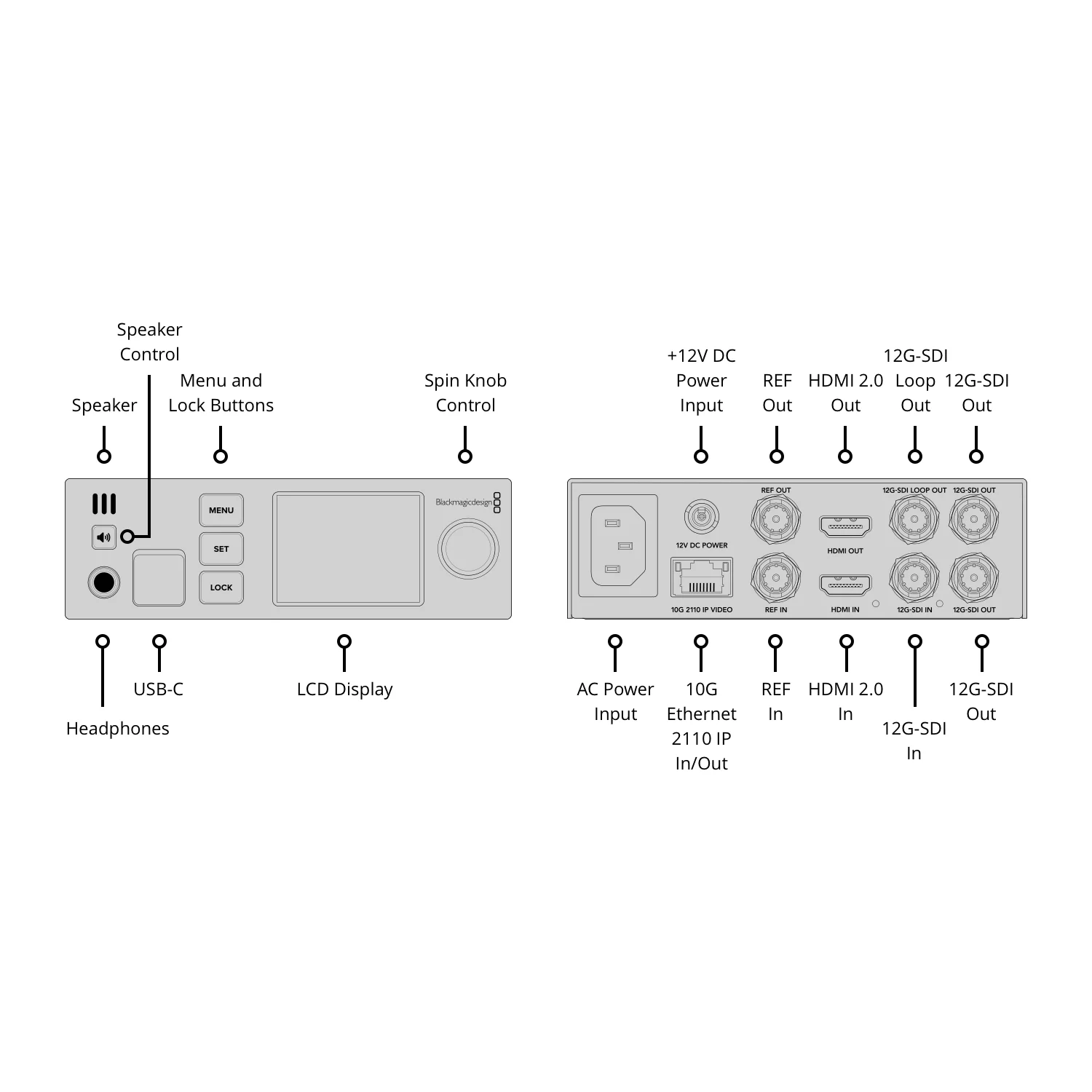

Connections:&
SDI inputs: 1
SDI loop outputs: 1
SDI outputs: 2
SDI rates: SD, 1,5 G, 3 G, 6 G und 12 G
HDMI 2.0 video outputs: 1
SMPTE 2110 input / output: 1x 10G ethernet port
SMPTE ST 2110 IP Audio Inputs/Outputs: 16 embedded audio channels in ST-2110 IP video inputs via 10G Ethernet
SDI audio inputs: 16 embedded audio channels
SDI audio outputs: 16 embedded audio channels
HDMI audio inputs: 8 embedded audio channels
HDMI audio outputs: 8 embedded audio channels
Analogue audio outputs: 1x 6.35 mm headphone jack
Webcam outputs: 1 USB-C for up to 1080p/60
Reference in: 1
Reference out: 1
Ethernet: Ethernet supports 10/100/1000/10G Base-T for SMPTE 2110 IP video inputs and outputs, configuration and software updates

Especificaciones Técnicas
