Canon ML-100 EF Multi-Purpose Camera

Descripción

The Rock Store te trae Canon ML-100 EF Multi-Purpose Camera

Sus características técnicas principales son:

Get industrial video capture with highly sensitive, optimal imagery using the Canon ML-100 EF Multipurpose Camera. Built around a 35mm full-frame CMOS sensor, the ultracompact ML-100 camera creates top-of-the-line imagery with up to UHD 2K raw output and remote control via a CoaXPress interface. It features an EF lens mount, ROI (region of interest) options, a robust selection of functions, and MIL-standard equivalent compliance.Get industrial video capture with highly sensitive, optimal imagery using the Canon ML-100 EF Multipurpose Camera. Built around a 35mm full-frame CMOS sensor, the ultracompact ML-100 camera creates top-of-the-line imagery with up to UHD 2K raw output and remote control via a CoaXPress interface. It features an EF lens mount, ROI (region of interest) options, a robust selection of functions, and MIL-standard equivalent compliance.

Highly Compact Functionality

• The ML-100 maintains the sensitivity performance of the ME20F-SH while measuring 50% smaller, around 4 x 3″.
• It offers a minimum illumination of 0.0005 lux (or less), over 2.7 million pixels, and meets MIL Standard equivalents.

Low-Light, Full-Frame Sensor

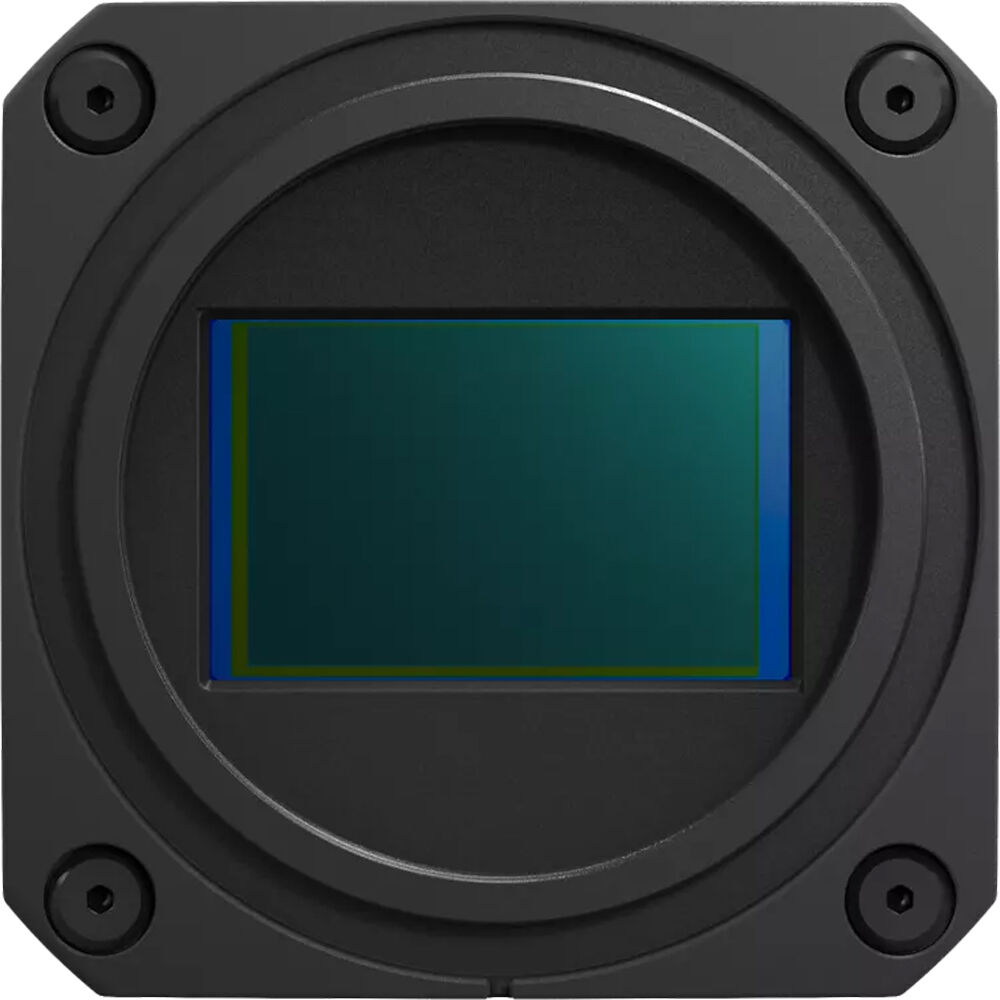

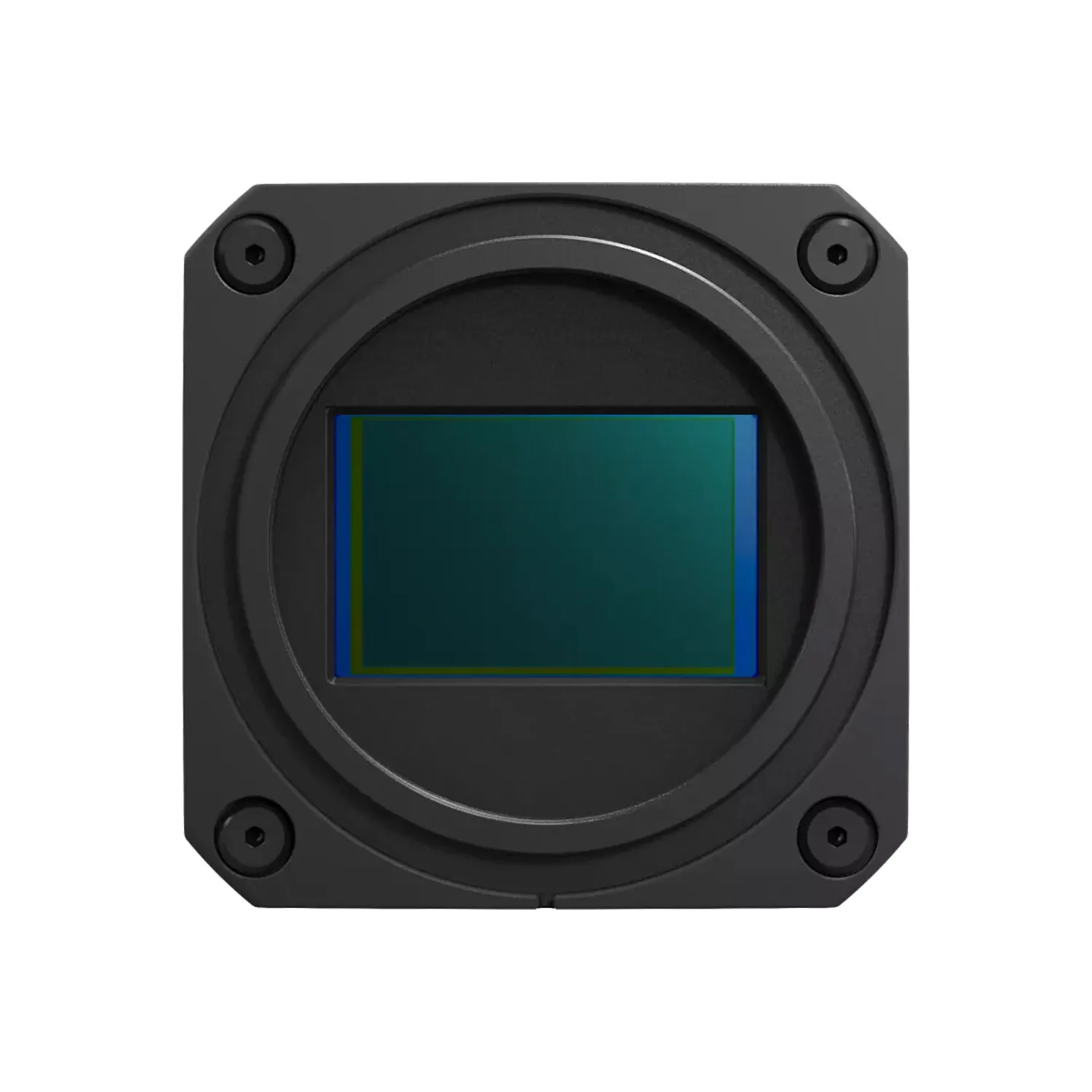

• The ML-100 EF’s 35mm full-frame CMOS sensor uses larger 19μm photosites to obtain optimal performance, even with a minimum subject illumination of 0.0005 lux or below (at maximum 75 dB gain).
• This sensor has a sensitivity equivalent to a higher than 4,000,000 ISO.

Raw Output via CoaXPress

• The ML-100 EF’s CoaXPress interface is used to output raw video at rates up to 2152 x 1272 97 fps video with approximately 8-bit color or 54 fps with approximately 16-bit color.
• The raw output enables more flexible user processing, using the full potential of the ultrasensitive CMOS sensor.

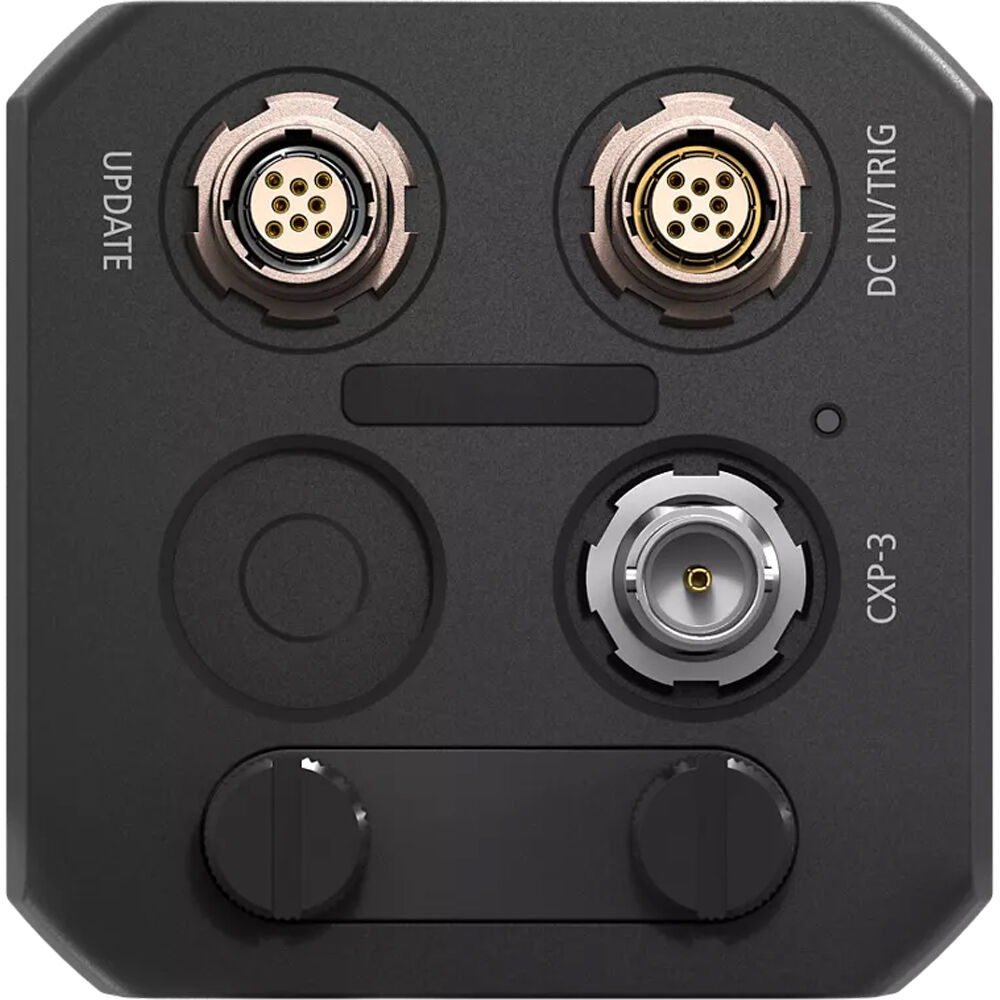

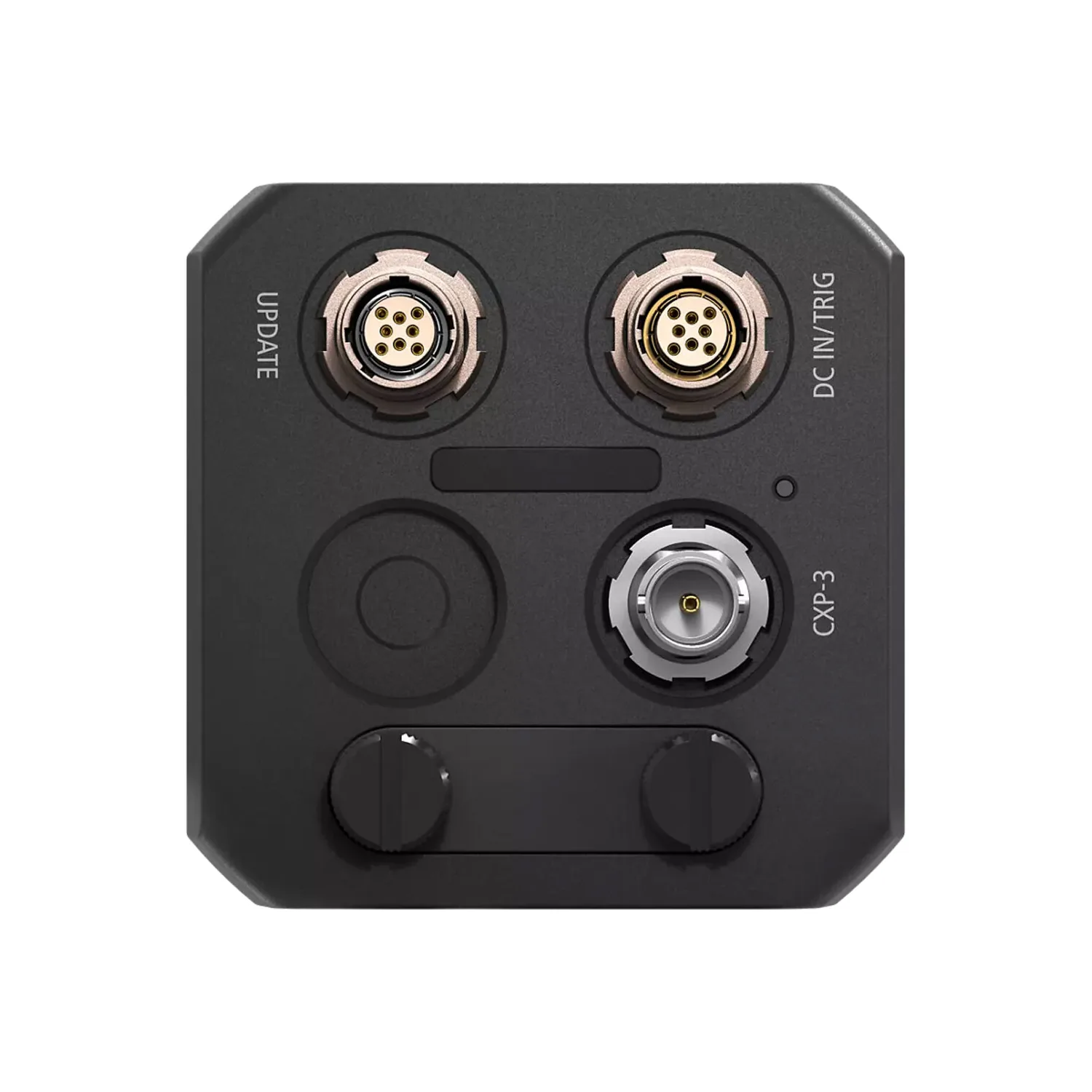

• The camera also incorporates an 8-pin port power supply/trigger port.

Region of Interest Capture

• Crop your frame to your desired view using the ML-100 EF’s ROI (Region of Interest) function.
• ROI options include full-view UHD 2K, center-cropped 1080p, and center-cropped 720p selections.
• Higher frame rates are available as the frame height decreases with 1/10 height capable of 10x the frame rate.
• 128 x 128 minimum pixel count.
• Selectable X and Y axis offset.

Reduced Form Size

• This compact box-style camera can be easily configured with a wide range of industrial systems.

Aviso: Las especificaciones y disponibilidad pueden cambiar sin previo aviso.
