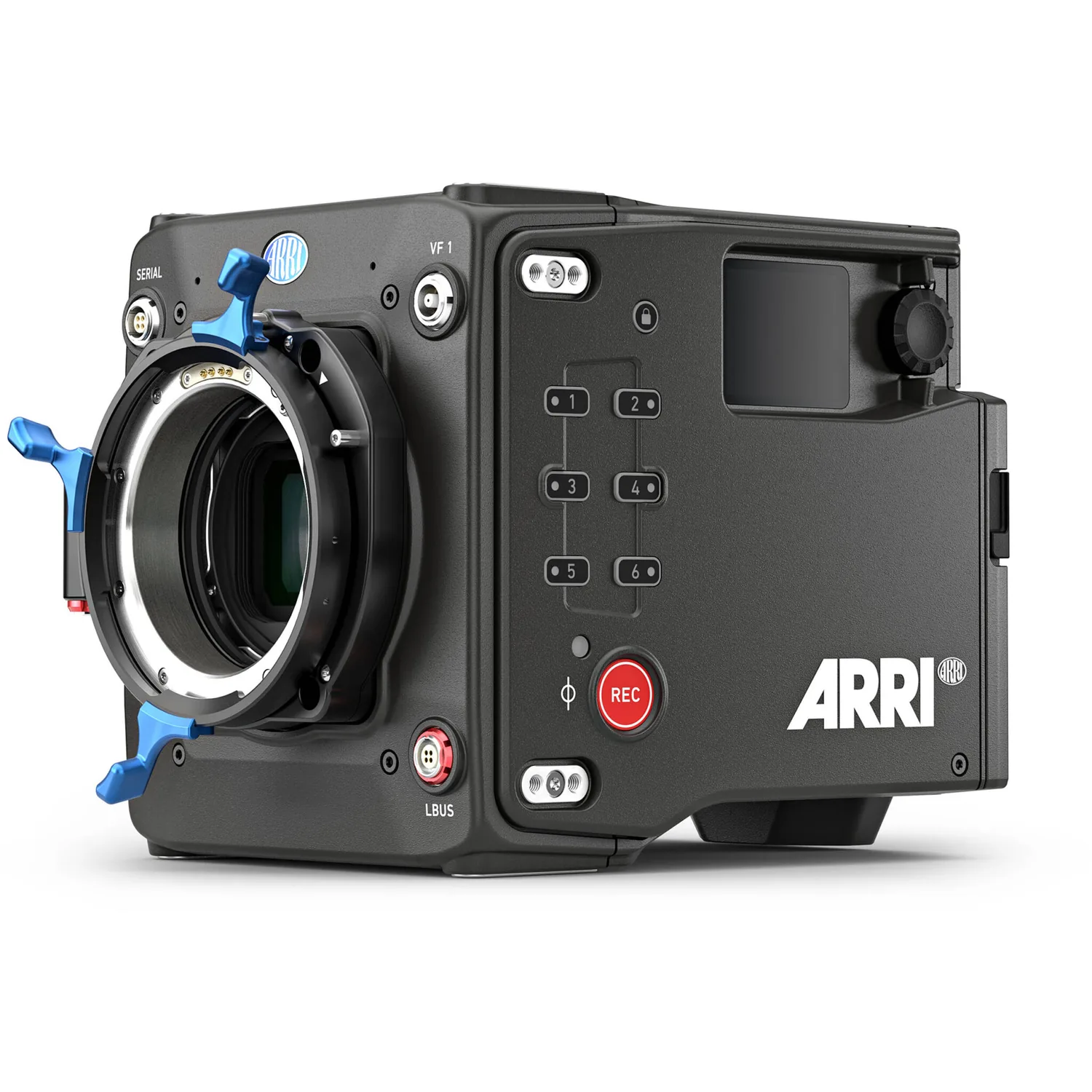

ARRI ALEXA 35 XTREME Base Entry Set (LPL/PL, CCM-1, CDX)

Descripción

The Rock Store te trae ARRI ALEXA 35 XTREME Base Entry Set (LPL/PL, CCM-1, CDX)

Sus características técnicas principales son:

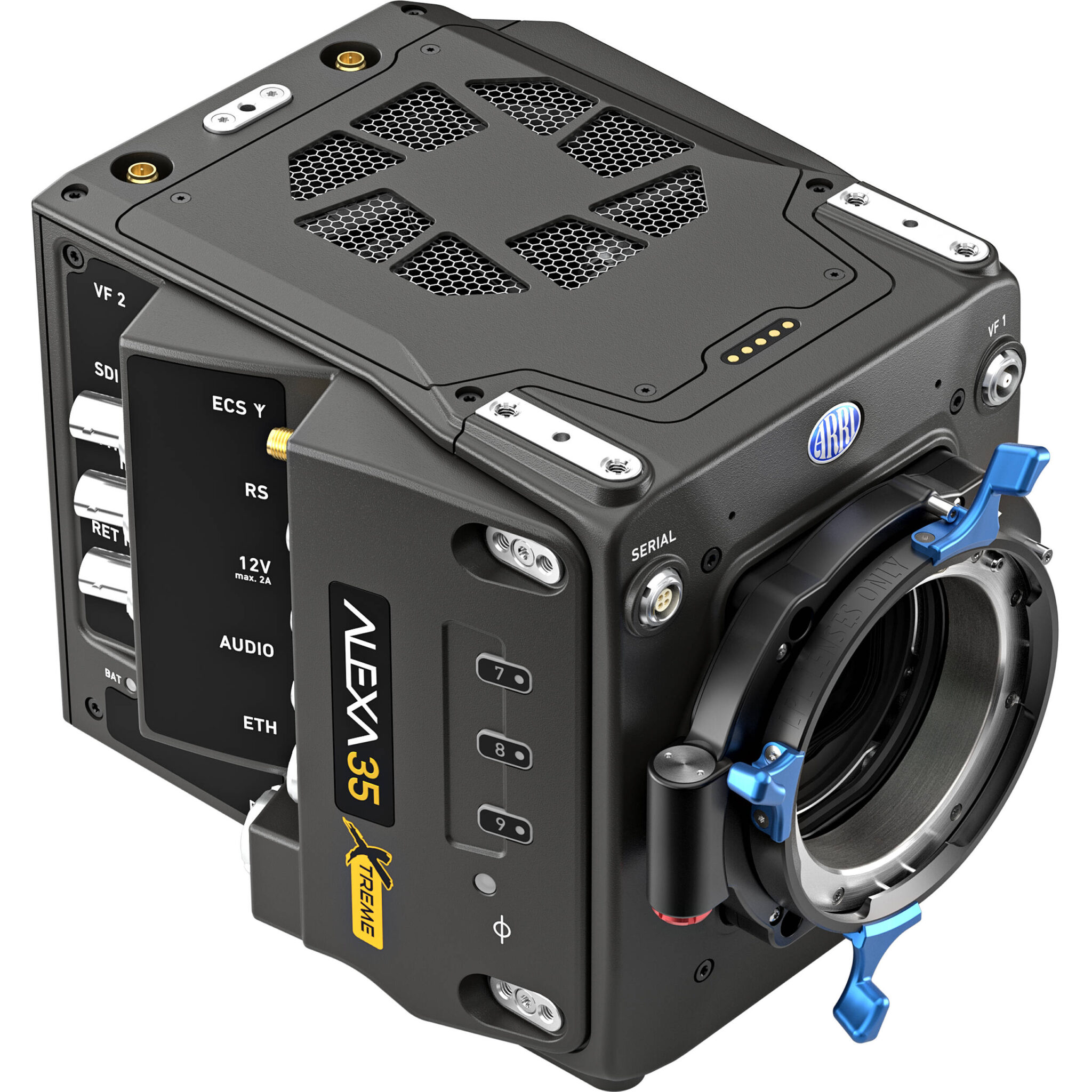

Continuing to innovate cine-style capture, ARRI introduces the ALEXA 35 XTREME Base Entry Set. This new camera combines the superior image quality and reliability of the ALEXA 35 with higher frame rates up to 660 fps, the efficient ARRICORE RGB codec, longer pre-record times, and improved Wi-Fi.

Advanced Cine-Style Capture

Continuing to innovate cine-style capture, ARRI introduces the ALEXA 35 XTREME Base Entry Set. This new camera combines the superior image quality and reliability of the ALEXA 35 with higher frame rates up to 660 fps, the efficient ARRICORE RGB codec, longer pre-record times, and improved Wi-Fi.

NOTE: High speed, pre-record, ARRI Look/Textures, ARRIRAW, Open Gate/Anamorphic, High-Speed, and Pre-Record functions are accessible with license upgrades.

Base Set with LPL Mount, CCM-1, and Codex

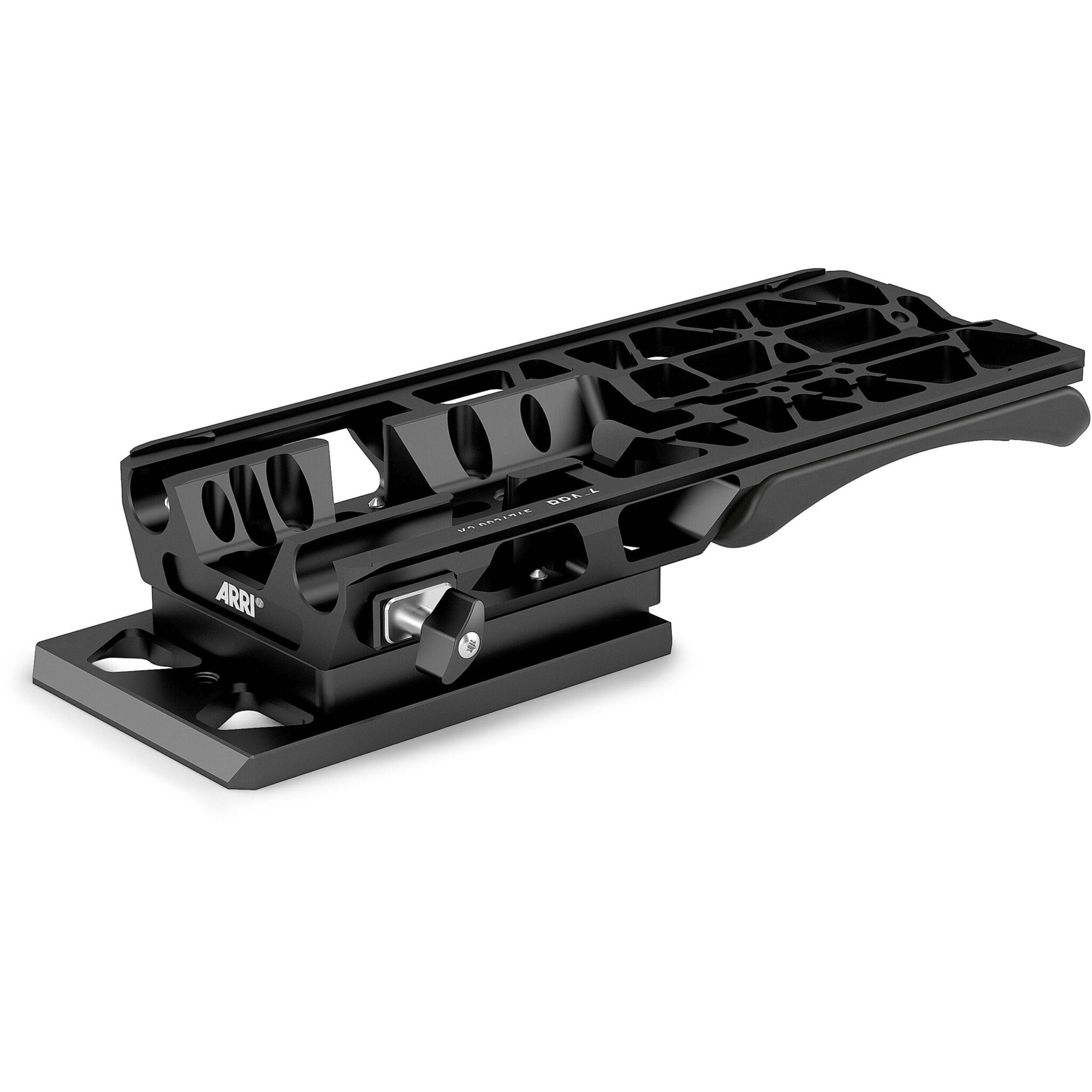

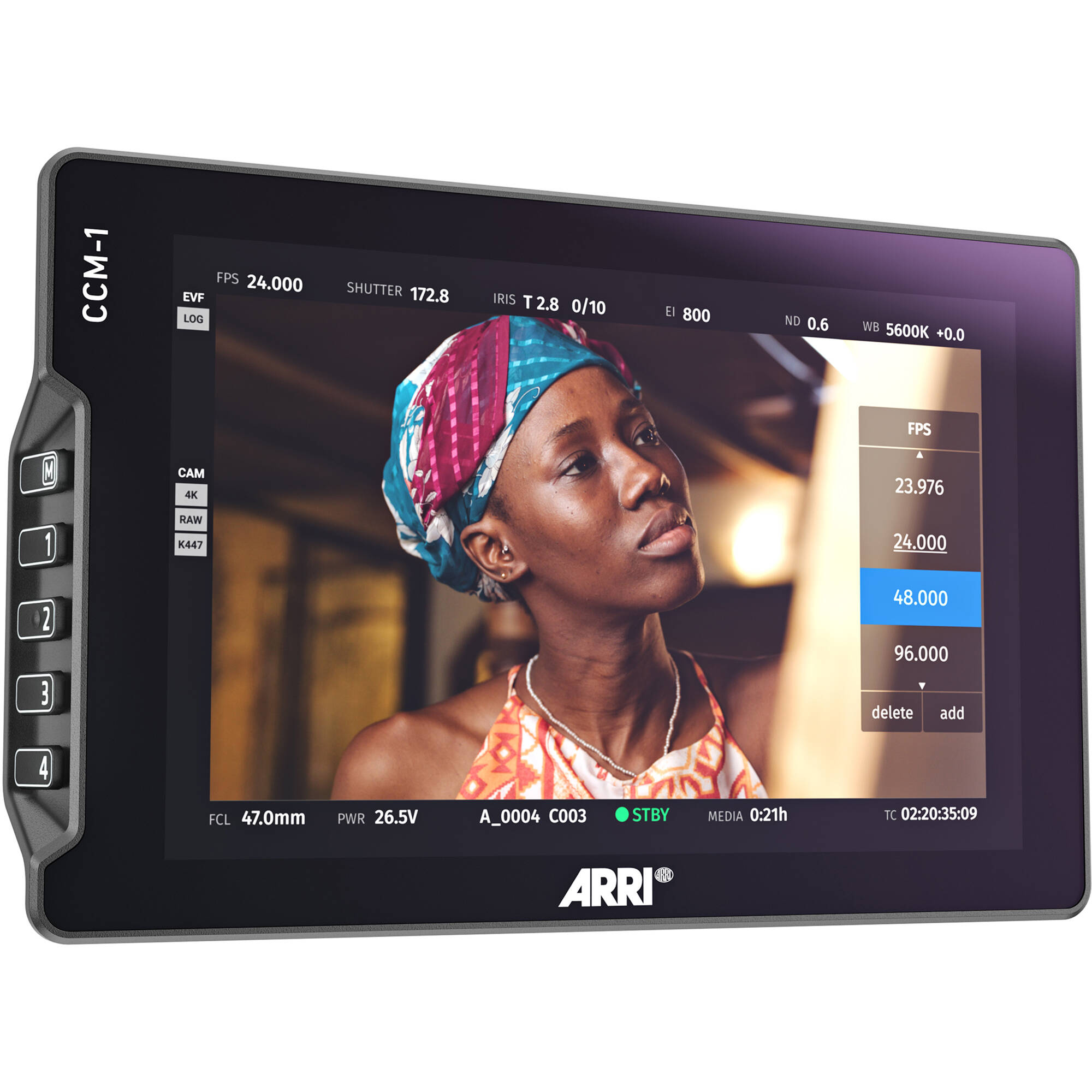

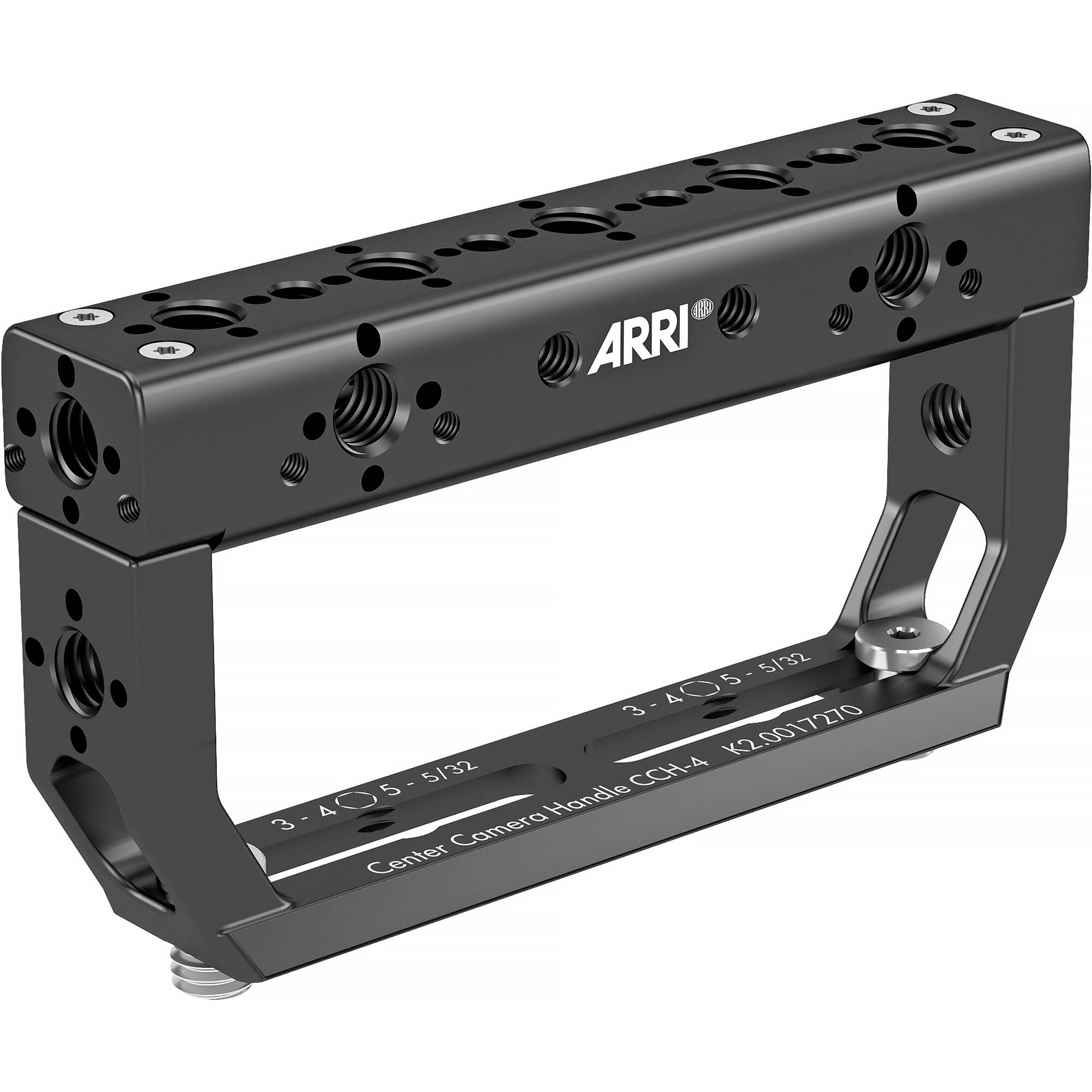

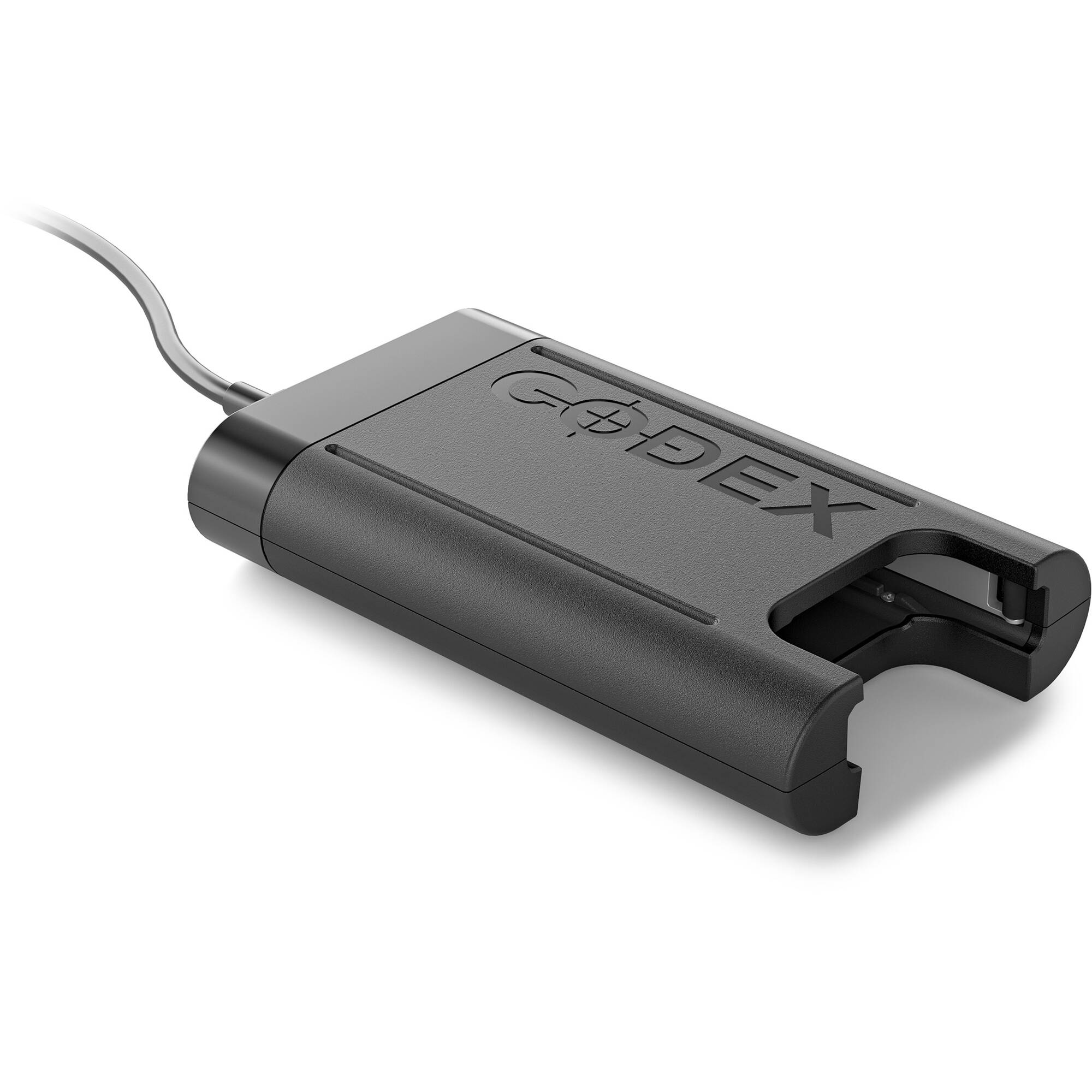

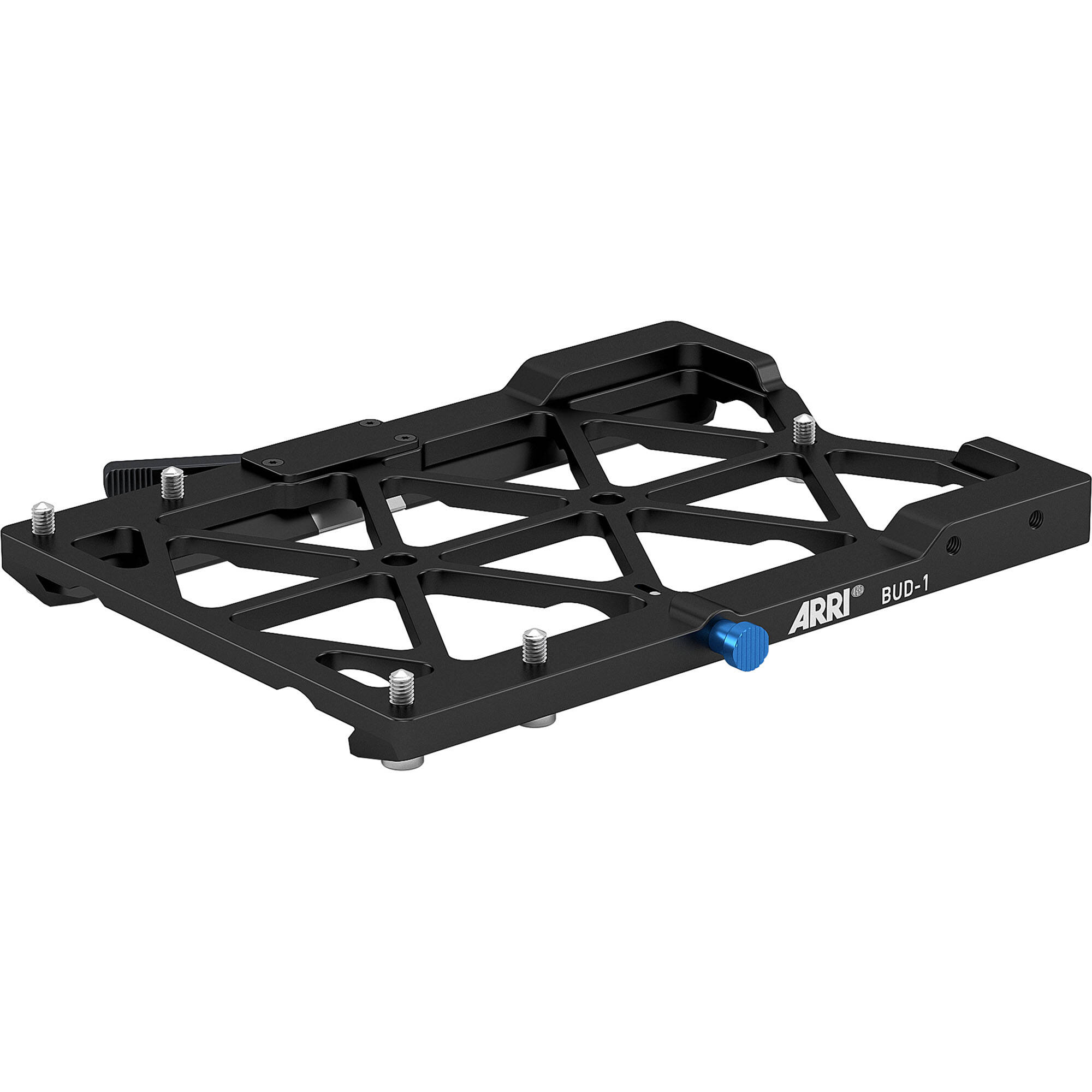

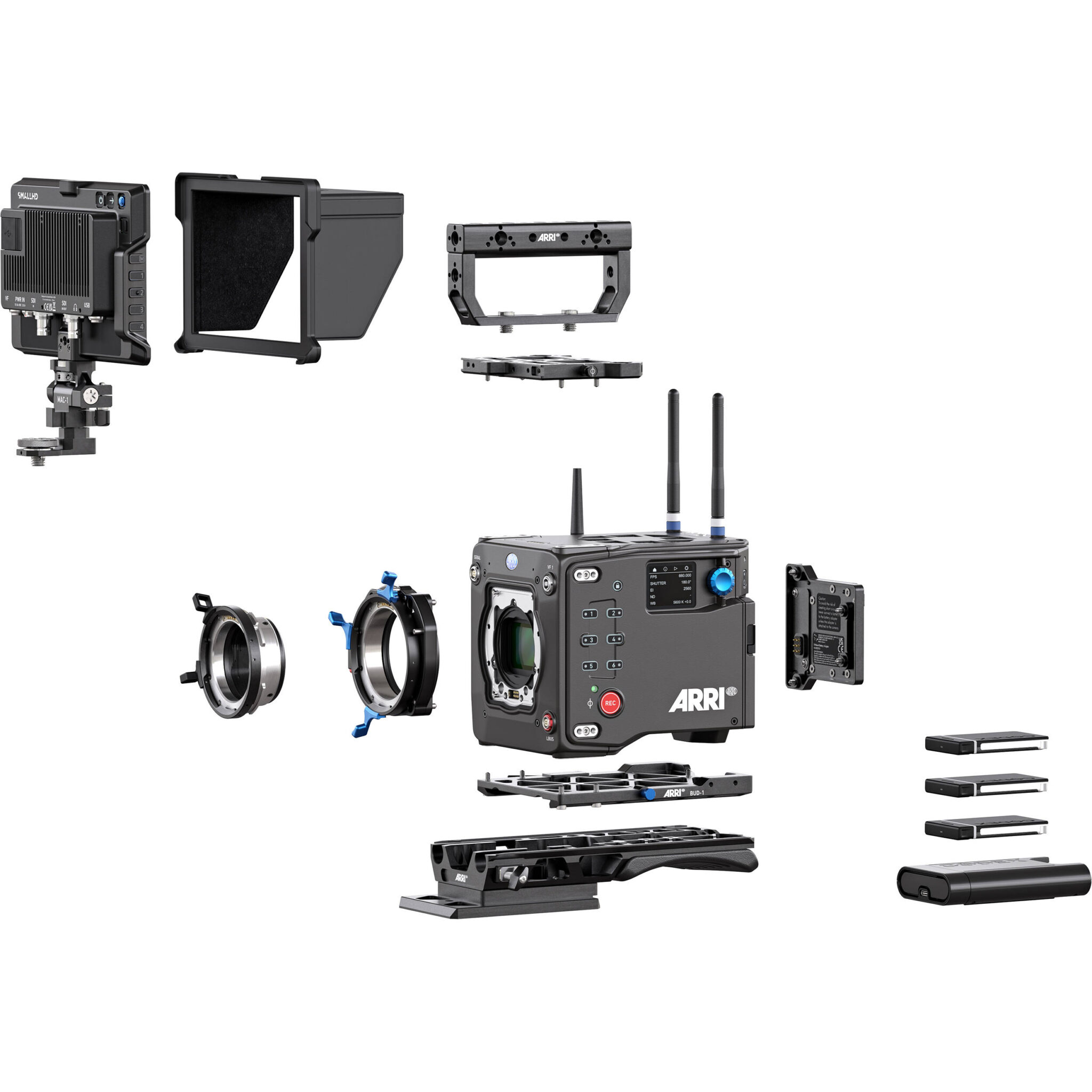

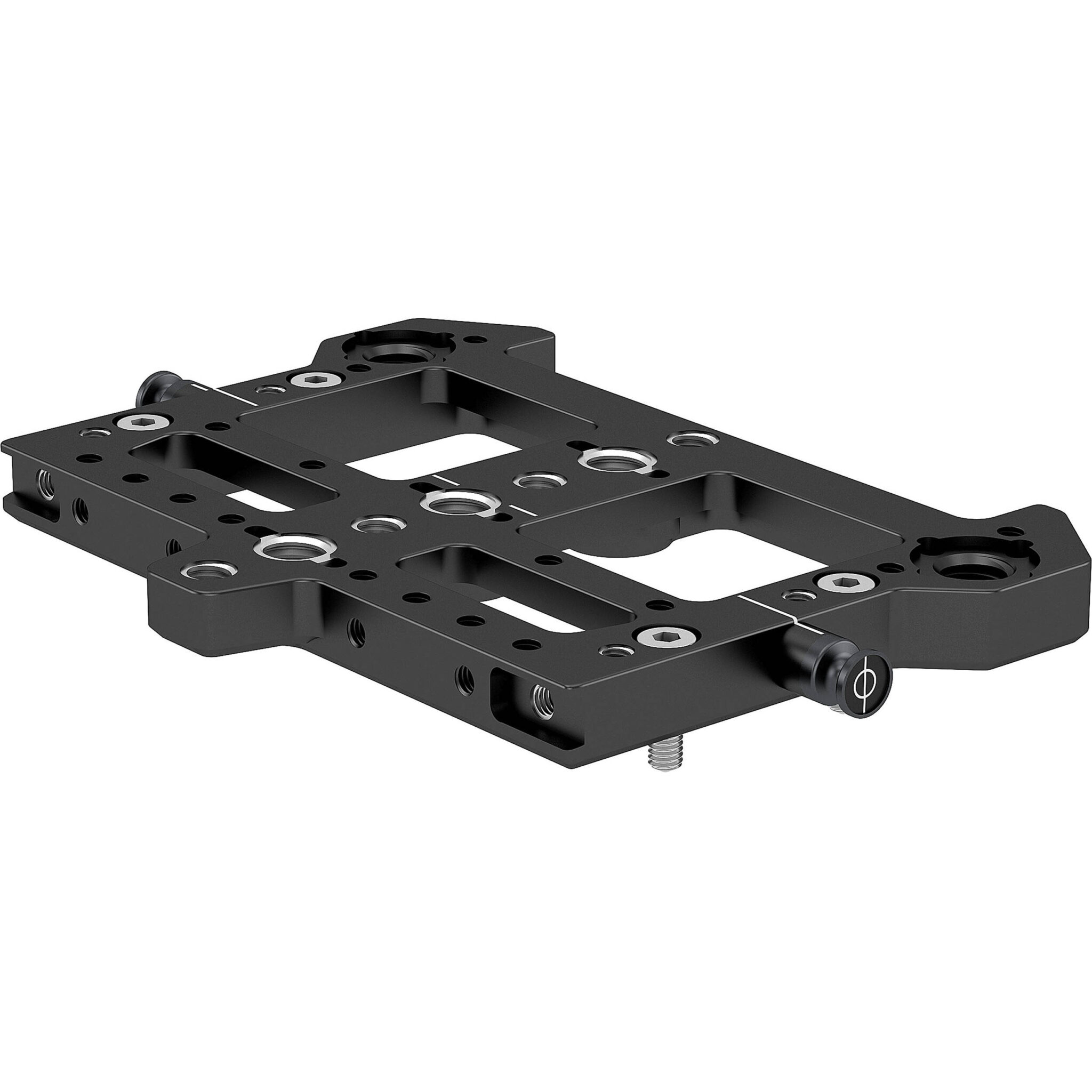

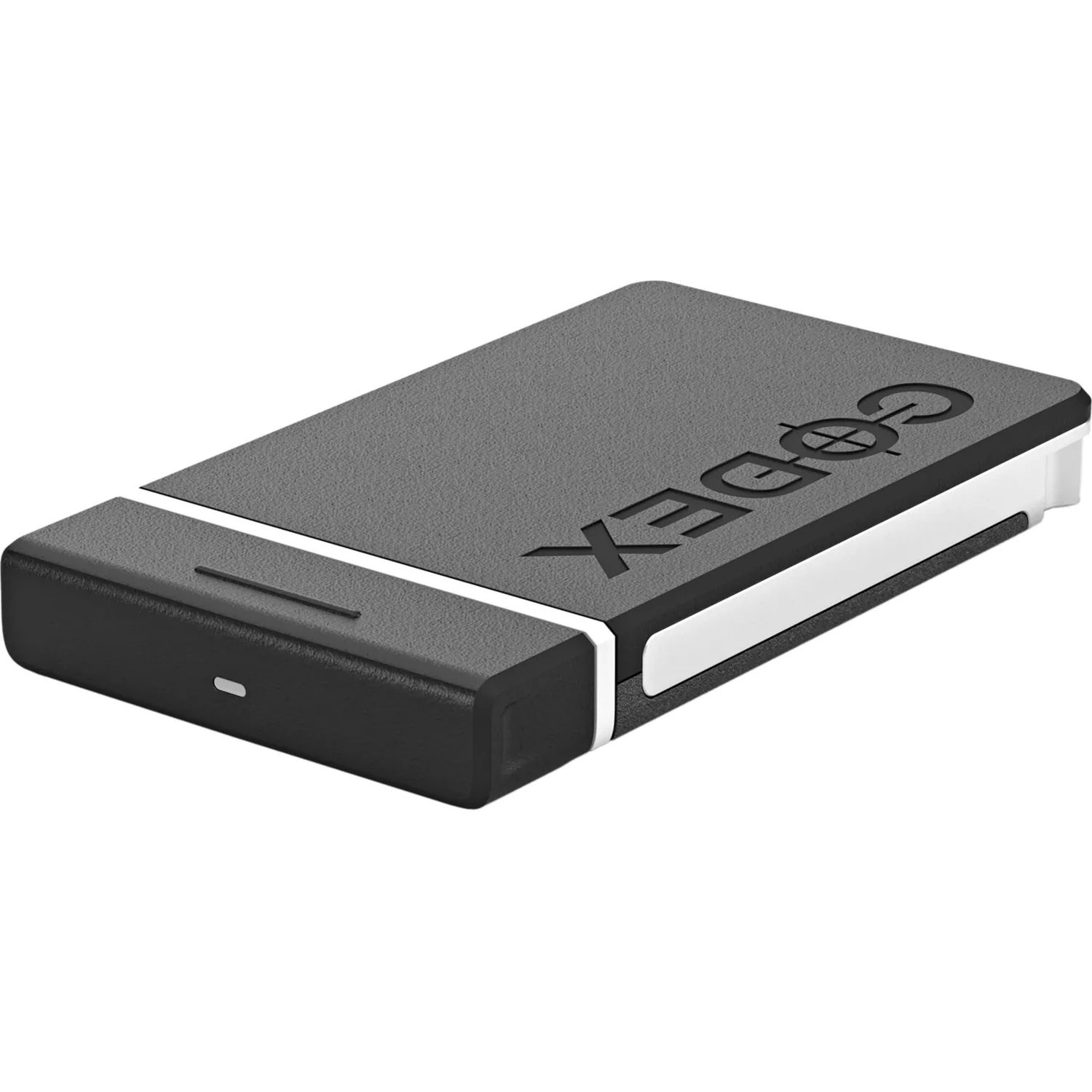

This ALEXA 35 XTREME Base Set with LPL, CCM-1, and Codex combines the camera with a Base License, an LBUS LPL mount, a PL-to-LPL adapter, three 1TB Codex compact drives, a drive reader, and more. It includes the CCM-1 control monitor with a bright touchscreen display and camera control, BUD-1 utility dovetail, BPA-6 bridge plate adapter, CCH-4 top handle, UAP-3 plate, and B-mount battery adapter. Compact and easy to operate, the ALEXA 35 XTREME offers capture to 1 or 2TB Codex Compact or Compact Express 1TB drives with resolutions up to 4.6K and frame rates up to 660 fps.

Upgradeable with Separately Available Licenses

• Upgrade your Base set with additional licenses when or if they’re needed on a temporary or permanent basis.
• Temporary licenses are available for 7 or 30 days or for annual periods.

NOTE: These upgrades are available only on the ARRI License Shop site. Licenses include ARRIRAW, high speed, Open Gate/Anamorphic, Pre-Record, and ARRI Looks and Textures options.

• The Premium License is a bundle consisting of the five separate options above.

NOTE: The Premium bundle is priced the same as the individual upgrades, enabling you to add each license feature as you desire for greater affordability.

ARRICORE Codec

The next-gen, RGB ARRICORE codec offers greater affordability via reduced data rates while maintaining optimal image quality. By not «baking in» sensitivity, white balance, or tint, ARRICORE provides post-production flexibility, and it is consistent with existing ALEXA 35 codecs, ensuring easy on-set and post workflows. ARRICORE offers familiar ARRI textures, metadata, MFX wrappers, and audio behavior, plus support for most third-party tools. This ARRICORE beta version will be finessed, incorporating user feedback.

Longest Pre-Record Times of Any Cine Camera

Documentary shooters and general users alike will appreciate the ALEXA 35 XTREME’s pre-record times, which are the longest of any current cine-style camera. Choose a full five minutes in 24 fps Apple ProRes 422 HQ in HD or 30 seconds in 24 fps Apple ProRes in high-resolution 4.6K Open Gate.

High Frame Rates to 660 fps

With frame rates up to 660 fps, the ALEXA 35 XTREME saves money and helps to streamline your production by eliminating the need to carry a separate high-speed camera body. Its new main processor provides more memory and faster speeds for capturing up to 330 fps with the full 17 stops of dynamic range and up to 660 fps within 11 stops of dynamic range.

Improved Wireless Connectivity

The ALEXA 35 XTREME’s improved wireless connectivity includes Wi-Fi 5GHz compatibility, Wi-Fi roaming in a mesh network, and auto-reconnecting to previously known networks.

4.6K Super 35 Sensor with 17 Stops of Dynamic Range

Key to the ALEXA 35 XTREME’s amazing image quality is a 4.6K Super 35 CMOS sensor offering 17 stops of dynamic range, which is a robust 2.5 stops greater than prior ARRI cameras. Those 2.5 stops are split between 1.5 stops at the top end, resulting in filmlike highlight roll-off, and one stop at the lower end to see even deeper into shadows without overexposing other areas. Ideal for HDR projects and any backlit setups, the ALEXA 35 XTREME’s wide dynamic range can also be a boon when tweaking your images in post.

Video Recording Formats

In-camera downsampling and anamorphic de-squeezing enable the ALEXA 35 XTREME to offer a robust array of 19 ARRIRAW and Apple ProRes recording formats with different resolutions, data rates, aspect ratios, and other factors, suiting the camera to a range of production styles. Recording resolutions include 4.6, 4, 3.3, 3, 2.7, and 2K options.

Enhanced Sensitivity and Accurate Color

The highly sensitive ALEXA 35 Xtreme offers settings from EI 160 to 6400, all while maintaining low noise and exceptional color accuracy across all exposure levels. Get even cleaner images in low-light situations using the Enhanced Sensitivity mode, an especially powerful tool when combined with in-camera Shadow ARRI Textures. The ALEXA 35 Xtreme uses ARRI’s efficient REVEAL Color Science, capturing natural skin tones with subtle variations.

ARRI Textures

Akin to digital film stocks, ARRI Textures enable you to alter the amount and character of grain in your images, and the amount of contrast at different levels of detail, which is perceived as sharpness. These textures can be very subtle, so they are best viewed on a large, high-quality HD monitor.

Same Compact Form and Interface as ALEXA 35

• The ALEXA 35 XTREME’s compact, rugged form, connectors, and mechanical interfaces are the same as the ALEXA 35’s, maintaining compatibility with the same electronic and mechanical accessories.
• Assistants and operators will appreciate the simple menu structure, recording to 1 or 2TB Codex Compact or Express 1TB drives, and a temperature-resistant, splash- and dust-proof housing.
• Compatible accessories include lens mounts, brackets, handles, AEM-1 audio extension module, PDM-1 power distribution module, Camera Companion app, and LPS-1 Live Production System.
• Updates are pending to support the new ALEXA 35 XTREME features with the CCM-1 Camera Control Module and Hi-5 lens control system.

Versatile Lens Choices

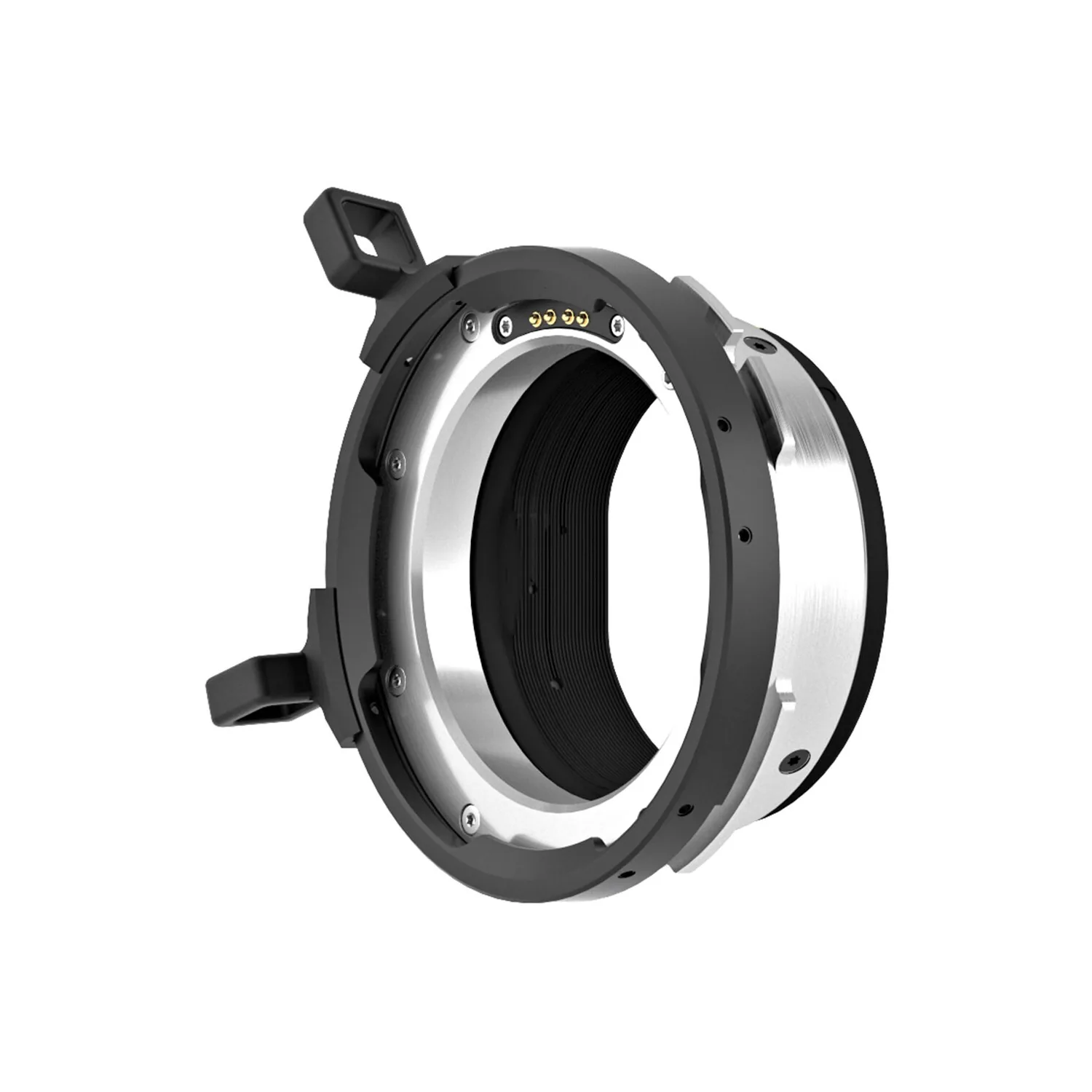

• This set comes with an LBUS PL mount and PL adapter, providing compatibility with a wide array of cine-style lenses.
• Additional lens mount adapters are available separately, offering access to a vast selection of existing modern and vintage lenses in spherical, anamorphic, Super 35, and large format options.
• The ALEXA 35 XTREME is compatible with all common metadata standards and can stream metadata in real time using an optional plug-in.

Interfaces

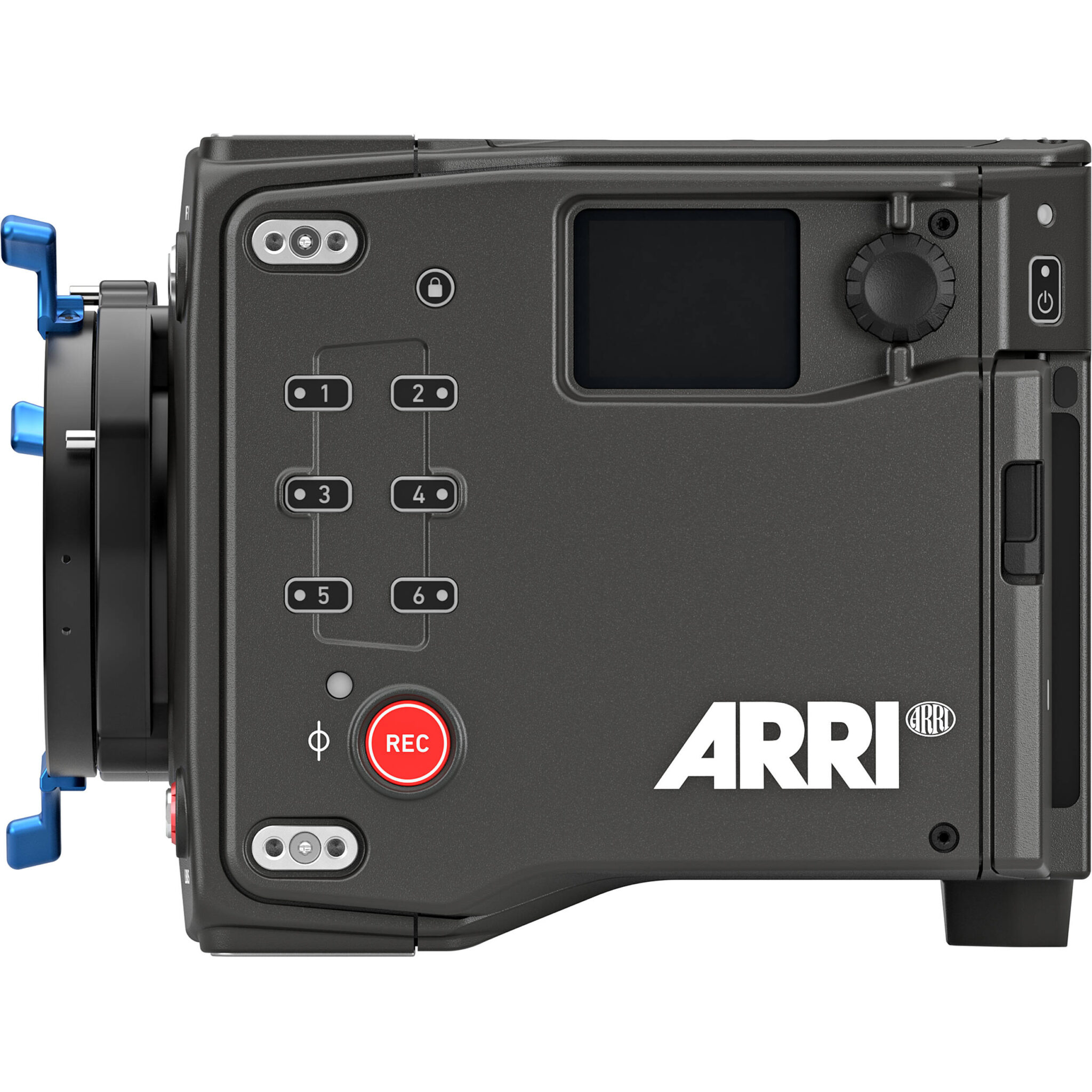

• The left display is ideal for stabilizer, drone, and crane use, enabling you to view the status and change settings without having an EVF attached. You can even select the ND filter setting to show as the display «screensaver», creating a quick visual reminder for any stop compensation needed.

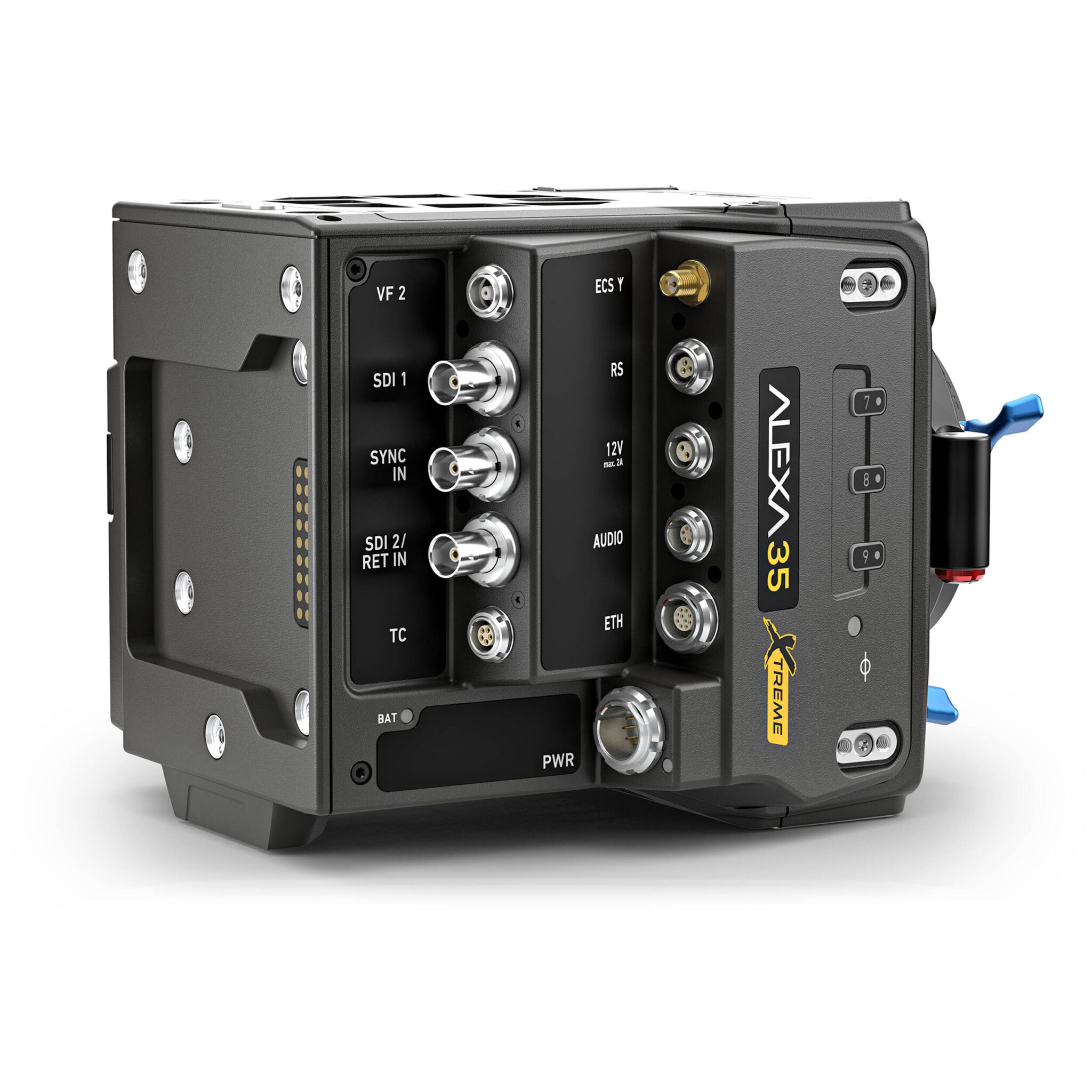

• Connectors: The right side of the ALEXA 35 XTREME offers a full interface, including a second EVF port, two 12G/6G/3G/1.5G-SDI outputs with a return option on the second one, timecode in/out, and both 12 and 24V accessory output ports.
• Ethernet: An Ethernet port offers real-time streaming of metadata for use in mixed-reality productions (MRP).
• Audio: The ALEXA 35 XTREME’s audio options include two internal microphones like the ALEXA Mini LF, one 6-pin LEMO input, one 3.5mm headphone jack, embedded SDI audio, and compatibility with the AEM-1 audio module.

Reduced Power Consumption

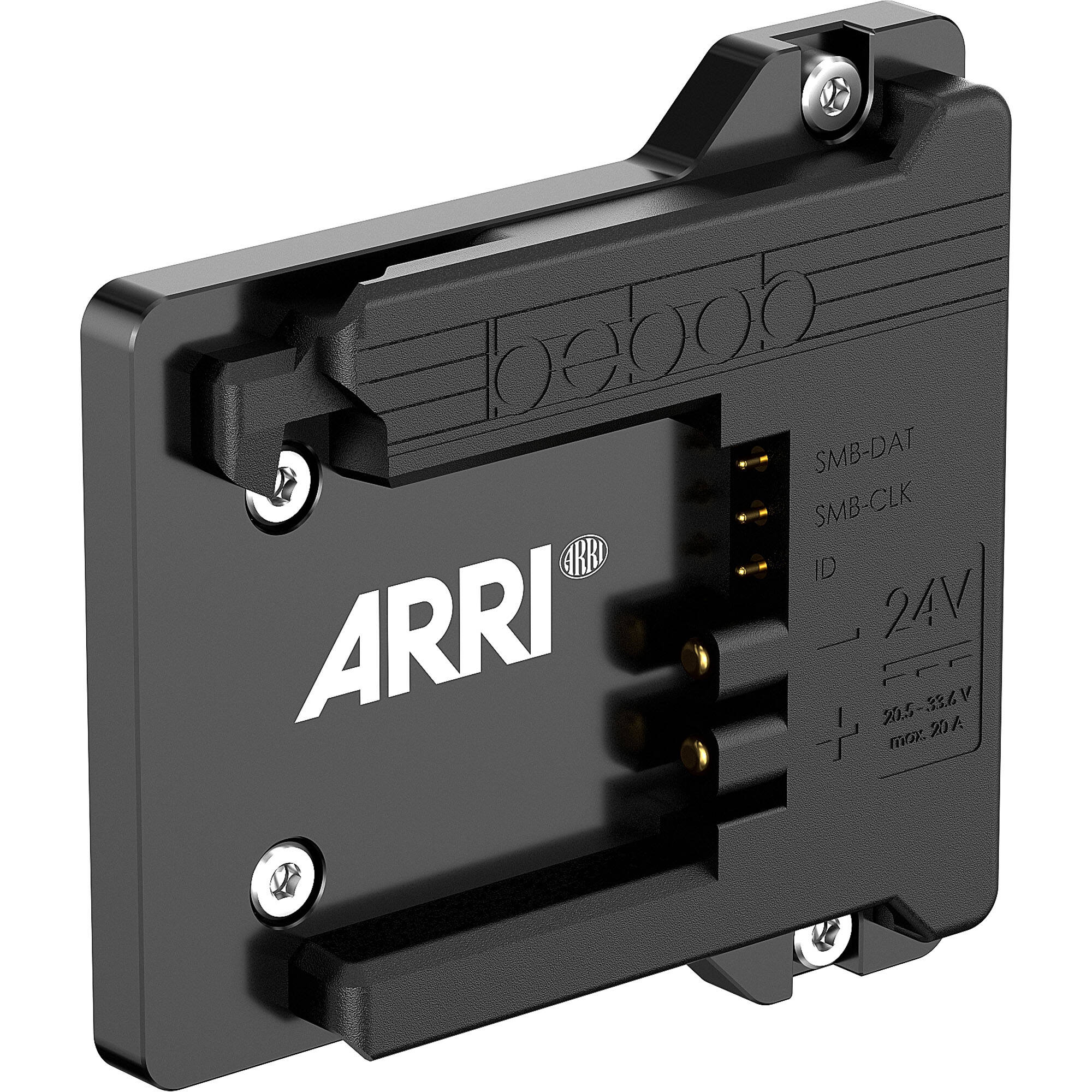

The 24V ALEXA 35 XTREME camera provides a 10% power savings over the ALEXA 35 and can be powered using the included ARRI B-Mount battery adapter and separately available batteries. The versatile B-Mount system can also power both 12 and 24V accessories, saving you the weight and space required when using two separate batteries. Third-party adapters from Anton Bauer, Hawk-Woods, and CORE SWX can be used with compatible 26V batteries. The included PDM-1 Power Distribution Module can be used to add seven more accessory power ports.

Separate Accessories

Separately available accessories include the Touchdown plate set and the AEM-1 audio extension module with one AES3/AES42 and two mic/line mini-XLR inputs.

ARRI Tools and Apps

Make both capture and post-production easier with the range of free tools, apps, and tutorials found on the ARRI website. Use the Camera Companion app for single or multicamera remote control, the ARRIRAW HDE Transcoder for reducing ARRIRAW file sizes, and the ARRI Reference tool to create and look at files, for SDR and HDR conversions, and to export Apple ProRes, OpenEXR, and TIFF files.

Aviso: Las especificaciones y disponibilidad pueden cambiar sin previo aviso.
